Photoluminescence features of few-layer hexagonal α-In2Se3

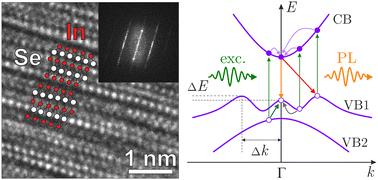

Indium (III) selenide is currently one of the most actively studied materials in the two-dimensional family due to its remarkable ferroelectric and optical properties. This study focuses on the luminescent properties of few-layer In₂Se₃ flakes with thicknesses ranging from 7 to 100 monolayers. To explore the photoluminescence features and correlate them with changes in crystal symmetry and surface potential, we employed a combination of techniques, including temperature-dependent micro-photoluminescence, time-resolved photoluminescence, Raman spectroscopy, atomic force microscopy, and Kelvin probe force microscopy. X-ray diffraction and Raman spectroscopy confirmed that the samples studied possess the α-phase structure. The micro-photoluminescence spectrum consists of two bands, A and B, with band B almost completely disappearing at room temperature. Temperature-dependent photoluminescence and time-resolved measurements helped us to elucidate the nature of the observed bands. We find that peak A is associated with emission from interband transitions in In₂Se₃, while peak B is attributed to defect-related emission. Additionally, the photoluminescence decay times of In₂Se₃ flakes with varying thicknesses were determined. No significant changes were observed in the decay components as the thickness increased from 7 to 100 monolayers, suggesting that there are no qualitative changes in the band structure.
