Learning metal microstructural heterogeneity through spatial mapping of diffraction latent space features

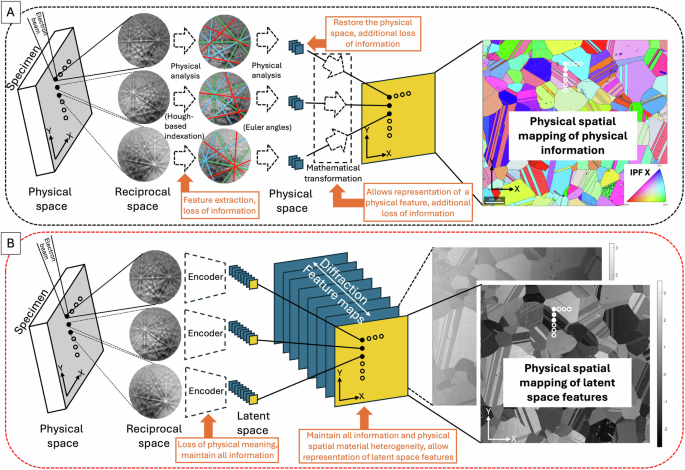

To leverage advancements in machine learning for metallic materials design and property prediction, it is crucial to develop a data-reduced representation of metal microstructures that surpasses the limitations of current physics-based discrete microstructure descriptors. This need is particularly relevant for metallic materials processed through additive manufacturing, which exhibit complex hierarchical microstructures that cannot be adequately described using the conventional metrics typically applied to wrought materials. Furthermore, capturing the spatial heterogeneity of microstructures at the different scales is necessary within such framework to accurately predict their properties. To address these challenges, we propose the physical spatial mapping of metal diffraction latent space features. This approach integrates (i) point diffraction data encoding via variational autoencoders or contrastive learning and (ii) the physical mapping of the encoded values. Together, these steps offer a method to comprehensively describe metal microstructures. We demonstrate this approach on a wrought and additively manufactured alloy, showing that it effectively encodes microstructural information and enables direct identification of microstructural heterogeneity not directly possible by physics-based models. This data-reduced microstructure representation opens the application of machine learning models in accelerating metallic material design and accurately predicting their properties.
