Xiangyang Chen, Zhensen Liang, Aodi Hu and Minggang Zhao
{"title":"利用Ni/Cu2O/Ag纳米立方†光辅助肖特基势垒增强选择性检测l-半胱氨酸","authors":"Xiangyang Chen, Zhensen Liang, Aodi Hu and Minggang Zhao","doi":"10.1039/D5TC01311A","DOIUrl":null,"url":null,"abstract":"<p >\r\n <small>L</small>-Cysteine (<small>L</small>-Cys), a sulfur-containing amino acid, plays a crucial role in various biological processes. Rapid and accurate detection of <small>L</small>-Cys in the human body is significant for clinical diagnosis and drug analysis. However, classic electrochemical sensing mechanisms are usually based on redox reactions, and substances with similar redox properties in the serum can easily interfere with the detection process. In this study, we present a novel approach for the detection of <small>L</small>-Cys using Schottky barriers of Ni/Cu<small><sub>2</sub></small>O/Ag nanocubes. The electrode exhibits excellent selectivity towards <small>L</small>-Cys due to the specific interaction between Cu<small><sub>2</sub></small>O and <small>L</small>-Cys through the formation of Cu–S bonds. The Schottky barrier at the Cu<small><sub>2</sub></small>O/Ag interface, formed due to the difference in work functions, impedes electron transfer and can be modulated by the adsorption of charged <small>L</small>-Cys molecules. The introduction of light irradiation enhances the barrier modulation capability, resulting in improved sensitivity. Experimental results demonstrate that the Ni/Cu<small><sub>2</sub></small>O/Ag electrode exhibits a linear response to <small>L</small>-Cys concentration within 0–2400 nM at pH 3.0 and pH 7.0, with a low detection limit of 11.86 nM. The electrode shows excellent performance in real sample analysis, exhibiting high recovery rates and low relative standard deviations. The light-assisted barrier enhancement mechanism provides a new avenue for the development of highly selective and sensitive electrochemical sensors.</p>","PeriodicalId":84,"journal":{"name":"Journal of Materials Chemistry C","volume":" 30","pages":" 15682-15691"},"PeriodicalIF":5.1000,"publicationDate":"2025-07-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Light-assisted Schottky barrier enhancement for selective detection of l-cysteine using Ni/Cu2O/Ag nanocubes†\",\"authors\":\"Xiangyang Chen, Zhensen Liang, Aodi Hu and Minggang Zhao\",\"doi\":\"10.1039/D5TC01311A\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >\\r\\n <small>L</small>-Cysteine (<small>L</small>-Cys), a sulfur-containing amino acid, plays a crucial role in various biological processes. Rapid and accurate detection of <small>L</small>-Cys in the human body is significant for clinical diagnosis and drug analysis. However, classic electrochemical sensing mechanisms are usually based on redox reactions, and substances with similar redox properties in the serum can easily interfere with the detection process. In this study, we present a novel approach for the detection of <small>L</small>-Cys using Schottky barriers of Ni/Cu<small><sub>2</sub></small>O/Ag nanocubes. The electrode exhibits excellent selectivity towards <small>L</small>-Cys due to the specific interaction between Cu<small><sub>2</sub></small>O and <small>L</small>-Cys through the formation of Cu–S bonds. The Schottky barrier at the Cu<small><sub>2</sub></small>O/Ag interface, formed due to the difference in work functions, impedes electron transfer and can be modulated by the adsorption of charged <small>L</small>-Cys molecules. The introduction of light irradiation enhances the barrier modulation capability, resulting in improved sensitivity. Experimental results demonstrate that the Ni/Cu<small><sub>2</sub></small>O/Ag electrode exhibits a linear response to <small>L</small>-Cys concentration within 0–2400 nM at pH 3.0 and pH 7.0, with a low detection limit of 11.86 nM. The electrode shows excellent performance in real sample analysis, exhibiting high recovery rates and low relative standard deviations. The light-assisted barrier enhancement mechanism provides a new avenue for the development of highly selective and sensitive electrochemical sensors.</p>\",\"PeriodicalId\":84,\"journal\":{\"name\":\"Journal of Materials Chemistry C\",\"volume\":\" 30\",\"pages\":\" 15682-15691\"},\"PeriodicalIF\":5.1000,\"publicationDate\":\"2025-07-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Materials Chemistry C\",\"FirstCategoryId\":\"1\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/tc/d5tc01311a\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Chemistry C","FirstCategoryId":"1","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/tc/d5tc01311a","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
l -半胱氨酸(L-Cys)是一种含硫氨基酸,在多种生物过程中起着至关重要的作用。快速准确地检测人体内l -胱氨酸对临床诊断和药物分析具有重要意义。然而,经典的电化学传感机制通常基于氧化还原反应,血清中具有类似氧化还原性质的物质很容易干扰检测过程。在这项研究中,我们提出了一种利用Ni/Cu2O/Ag纳米立方体的肖特基势垒检测L-Cys的新方法。由于Cu2O与L-Cys之间通过形成Cu-S键的特殊相互作用,电极对L-Cys表现出优异的选择性。在Cu2O/Ag界面上,由于功函数的不同而形成的肖特基势垒阻碍了电子的转移,并且可以通过吸附带电的L-Cys分子来调节。光照射的引入增强了屏障调制能力,从而提高了灵敏度。实验结果表明,在pH 3.0和pH 7.0条件下,Ni/Cu2O/Ag电极对L-Cys浓度在0 ~ 2400 nM范围内呈线性响应,最低检出限为11.86 nM。该电极在实际样品分析中表现出较高的回收率和较低的相对标准偏差。光辅助势垒增强机制为开发高选择性、高灵敏度的电化学传感器提供了新的途径。
Light-assisted Schottky barrier enhancement for selective detection of l-cysteine using Ni/Cu2O/Ag nanocubes†

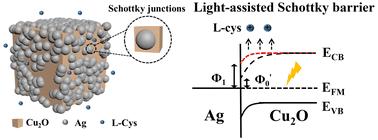

L-Cysteine (L-Cys), a sulfur-containing amino acid, plays a crucial role in various biological processes. Rapid and accurate detection of L-Cys in the human body is significant for clinical diagnosis and drug analysis. However, classic electrochemical sensing mechanisms are usually based on redox reactions, and substances with similar redox properties in the serum can easily interfere with the detection process. In this study, we present a novel approach for the detection of L-Cys using Schottky barriers of Ni/Cu2O/Ag nanocubes. The electrode exhibits excellent selectivity towards L-Cys due to the specific interaction between Cu2O and L-Cys through the formation of Cu–S bonds. The Schottky barrier at the Cu2O/Ag interface, formed due to the difference in work functions, impedes electron transfer and can be modulated by the adsorption of charged L-Cys molecules. The introduction of light irradiation enhances the barrier modulation capability, resulting in improved sensitivity. Experimental results demonstrate that the Ni/Cu2O/Ag electrode exhibits a linear response to L-Cys concentration within 0–2400 nM at pH 3.0 and pH 7.0, with a low detection limit of 11.86 nM. The electrode shows excellent performance in real sample analysis, exhibiting high recovery rates and low relative standard deviations. The light-assisted barrier enhancement mechanism provides a new avenue for the development of highly selective and sensitive electrochemical sensors.
