便携式拭子灵敏检测马拉硫磷的高氧化活性双金属Ir/Co纳米酶制备

IF 6.7 1区 化学 Q1 CHEMISTRY, ANALYTICAL
Menghan Liu, Ruyu Zhang, Jie Wang, Huiting Zhang, Jingying Tan, Qingzhi Liu*, Lei Han* and Lihua Lu*,
{"title":"便携式拭子灵敏检测马拉硫磷的高氧化活性双金属Ir/Co纳米酶制备","authors":"Menghan Liu,&nbsp;Ruyu Zhang,&nbsp;Jie Wang,&nbsp;Huiting Zhang,&nbsp;Jingying Tan,&nbsp;Qingzhi Liu*,&nbsp;Lei Han* and Lihua Lu*,&nbsp;","doi":"10.1021/acs.analchem.5c01779","DOIUrl":null,"url":null,"abstract":"<p >Bimetallic nanozymes not only have strong synergistic catalysis ability but also may improve the catalytic specificity of the nanozymes. Herein, the oxidase (OXD)-mimic Ir/Co bimetallic nanozymes were prepared through a coordination reaction between the Ir(III) complex with the 2-methylimidazole (MeIm) ligands in ZIF-67 under mild conditions without the pyrolysis and physical doping procedures. It is found that the trace amount of Ir-modified ZIF-67 (Ir@ZIF-67) possesses 18.17-fold that of catalytic ability and 7.86-fold that of the reaction rate as those of pristine ZIF-67. On the other hand, compared with ZIF-67, the OXD-like specificity of Ir@ZIF-67 has been increased 9.7%. The theoretical simulation shows that the high-performance of Ir@ZIF-67 comes from its higher O<sub>2</sub> adsorption ability. In virtue of the high performing OXD-like catalytic property, Ir/Co bimetallic nanozymes are employed to establish a simple and sensitive colorimetric pesticides detection platform without deleterious H<sub>2</sub>O<sub>2</sub>, which offers excellent “switch-on” malathion (MAL) detection in the linear range of 0.05–25 μM with a limit of detection (LOD) of 11.8 nM. Moreover, Ir/Co bimetallic nanozymes are successfully fabricated into the MAL test swabs. Assisted by a color-reading APP, the test swabs can detect MAL with the LOD as low as 18.5 nM. Surprisingly, such a simple test swab can achieve such high sensitivity for MAL detection. The real sample analysis verifies the high potential of the test swabs in practical application. The excellent performance of the fabricated test swabs can promote the formation of the situation where pesticides detection can be tested at any time and any place and can be carried out by anyone. This work not only provides a novel approach to designing polymetallic nanozymes but also displays the promising application of Ir/Co bimetallic nanozymes in the field of colorimetric sensing.</p>","PeriodicalId":27,"journal":{"name":"Analytical Chemistry","volume":"97 25","pages":"13404–13413"},"PeriodicalIF":6.7000,"publicationDate":"2025-06-17","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Facilely Fabricating Bimetallic Ir/Co Nanozymes with High Oxidize-like Activities for Sensitive Detection of Malathion with Portable Swabs\",\"authors\":\"Menghan Liu,&nbsp;Ruyu Zhang,&nbsp;Jie Wang,&nbsp;Huiting Zhang,&nbsp;Jingying Tan,&nbsp;Qingzhi Liu*,&nbsp;Lei Han* and Lihua Lu*,&nbsp;\",\"doi\":\"10.1021/acs.analchem.5c01779\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Bimetallic nanozymes not only have strong synergistic catalysis ability but also may improve the catalytic specificity of the nanozymes. Herein, the oxidase (OXD)-mimic Ir/Co bimetallic nanozymes were prepared through a coordination reaction between the Ir(III) complex with the 2-methylimidazole (MeIm) ligands in ZIF-67 under mild conditions without the pyrolysis and physical doping procedures. It is found that the trace amount of Ir-modified ZIF-67 (Ir@ZIF-67) possesses 18.17-fold that of catalytic ability and 7.86-fold that of the reaction rate as those of pristine ZIF-67. On the other hand, compared with ZIF-67, the OXD-like specificity of Ir@ZIF-67 has been increased 9.7%. The theoretical simulation shows that the high-performance of Ir@ZIF-67 comes from its higher O<sub>2</sub> adsorption ability. In virtue of the high performing OXD-like catalytic property, Ir/Co bimetallic nanozymes are employed to establish a simple and sensitive colorimetric pesticides detection platform without deleterious H<sub>2</sub>O<sub>2</sub>, which offers excellent “switch-on” malathion (MAL) detection in the linear range of 0.05–25 μM with a limit of detection (LOD) of 11.8 nM. Moreover, Ir/Co bimetallic nanozymes are successfully fabricated into the MAL test swabs. Assisted by a color-reading APP, the test swabs can detect MAL with the LOD as low as 18.5 nM. Surprisingly, such a simple test swab can achieve such high sensitivity for MAL detection. The real sample analysis verifies the high potential of the test swabs in practical application. The excellent performance of the fabricated test swabs can promote the formation of the situation where pesticides detection can be tested at any time and any place and can be carried out by anyone. This work not only provides a novel approach to designing polymetallic nanozymes but also displays the promising application of Ir/Co bimetallic nanozymes in the field of colorimetric sensing.</p>\",\"PeriodicalId\":27,\"journal\":{\"name\":\"Analytical Chemistry\",\"volume\":\"97 25\",\"pages\":\"13404–13413\"},\"PeriodicalIF\":6.7000,\"publicationDate\":\"2025-06-17\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Analytical Chemistry\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.analchem.5c01779\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, ANALYTICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Analytical Chemistry","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.analchem.5c01779","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, ANALYTICAL","Score":null,"Total":0}
引用次数: 0

摘要

双金属纳米酶不仅具有较强的协同催化能力,而且可以提高纳米酶的催化特异性。本文在温和的条件下,通过Ir(III)配合物与ZIF-67中的2-甲基咪唑(MeIm)配体进行配位反应,制备了氧化酶(OXD)-模拟Ir/Co双金属纳米酶。结果表明,微量ir修饰的ZIF-67 (Ir@ZIF-67)的催化能力是原始ZIF-67的18.17倍,反应速率是7.86倍。另一方面,与ZIF-67相比,Ir@ZIF-67的oxd样特异性提高了9.7%。理论模拟表明,Ir@ZIF-67的高性能来源于其较高的氧吸附能力。利用Ir/Co双金属纳米酶的优异催化性能,建立了一种简单灵敏的农药比色检测平台,该平台不含有害的H2O2,在0.05 ~ 25 μM的线性范围内对马拉硫磷(MAL)进行了良好的“开启”检测,检出限(LOD)为11.8 nM。此外,还成功地将Ir/Co双金属纳米酶制备到MAL测试拭子中。在颜色读取APP的辅助下,测试拭子可以检测到低至18.5 nM的MAL。令人惊讶的是,如此简单的测试拭子可以实现如此高的MAL检测灵敏度。实际样品分析验证了该测试棉签在实际应用中的高潜力。制作的检测棉签的优良性能,可以促进形成随时随地都可以检测农药,任何人都可以进行检测的局面。这项工作不仅为设计多金属纳米酶提供了一种新的途径,而且显示了Ir/Co双金属纳米酶在比色传感领域的广阔应用前景。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Facilely Fabricating Bimetallic Ir/Co Nanozymes with High Oxidize-like Activities for Sensitive Detection of Malathion with Portable Swabs

Facilely Fabricating Bimetallic Ir/Co Nanozymes with High Oxidize-like Activities for Sensitive Detection of Malathion with Portable Swabs

Facilely Fabricating Bimetallic Ir/Co Nanozymes with High Oxidize-like Activities for Sensitive Detection of Malathion with Portable Swabs

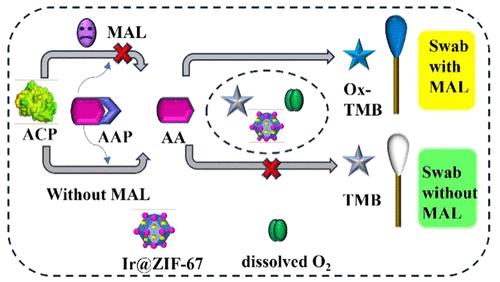

Bimetallic nanozymes not only have strong synergistic catalysis ability but also may improve the catalytic specificity of the nanozymes. Herein, the oxidase (OXD)-mimic Ir/Co bimetallic nanozymes were prepared through a coordination reaction between the Ir(III) complex with the 2-methylimidazole (MeIm) ligands in ZIF-67 under mild conditions without the pyrolysis and physical doping procedures. It is found that the trace amount of Ir-modified ZIF-67 (Ir@ZIF-67) possesses 18.17-fold that of catalytic ability and 7.86-fold that of the reaction rate as those of pristine ZIF-67. On the other hand, compared with ZIF-67, the OXD-like specificity of Ir@ZIF-67 has been increased 9.7%. The theoretical simulation shows that the high-performance of Ir@ZIF-67 comes from its higher O2 adsorption ability. In virtue of the high performing OXD-like catalytic property, Ir/Co bimetallic nanozymes are employed to establish a simple and sensitive colorimetric pesticides detection platform without deleterious H2O2, which offers excellent “switch-on” malathion (MAL) detection in the linear range of 0.05–25 μM with a limit of detection (LOD) of 11.8 nM. Moreover, Ir/Co bimetallic nanozymes are successfully fabricated into the MAL test swabs. Assisted by a color-reading APP, the test swabs can detect MAL with the LOD as low as 18.5 nM. Surprisingly, such a simple test swab can achieve such high sensitivity for MAL detection. The real sample analysis verifies the high potential of the test swabs in practical application. The excellent performance of the fabricated test swabs can promote the formation of the situation where pesticides detection can be tested at any time and any place and can be carried out by anyone. This work not only provides a novel approach to designing polymetallic nanozymes but also displays the promising application of Ir/Co bimetallic nanozymes in the field of colorimetric sensing.
