多波段介电谐振天线用MgAl5/4(Li1/3Ti2/3)3/4O4陶瓷的微波介电特性定制

IF 8.4 1区材料科学 Q1 CHEMISTRY, PHYSICAL

Journal of Materiomics Pub Date : 2025-04-24 DOI:10.1016/j.jmat.2025.101064

Zhicong Chen, Qianbiao Du, Guo Tian, Linzhao Ma, Longxiang Jiang, Chang Jiang, Zeyan Zhou, Hao Li

{"title":"多波段介电谐振天线用MgAl5/4(Li1/3Ti2/3)3/4O4陶瓷的微波介电特性定制","authors":"Zhicong Chen, Qianbiao Du, Guo Tian, Linzhao Ma, Longxiang Jiang, Chang Jiang, Zeyan Zhou, Hao Li","doi":"10.1016/j.jmat.2025.101064","DOIUrl":null,"url":null,"abstract":"This study introduces a novel microwave dielectric ceramic, MgAl5/4(Li1/3Ti2/3)3/4O4, tailored for modern communication technologies. MgAl5/4(Li1/3Ti2/3)3/4O4 ceramics feature a composite spinel structure (Fd-3m space group) comprising MgAl2O4 and Li4Ti5O12 type phases. By substituting Al3+ of MgAl2O4 ceramic with the composite ion (Li1/3Ti2/3)3+, differences in elemental diffusion induced by sintering temperature (1200–1280 °C) significantly affect the microwave dielectric properties: a low εᵣ (11.8) and enhanced microwave properties (Q×f = 79,381 GHz and τf = –28.5×10−6/°C) at 1240 °C. With further optimization of the ceramics, a near-zero τf is realized in 0.93MgAl5/4(Li1/3Ti2/3)3/4O4-0.07CaTiO3 ceramics with excellent comprehensive performance (εr = 14.36, Q×f = 44,144 GHz). Building on this, a multi-band dielectric resonant antenna (DRA) was designed for applications in communication and aeronautical radio navigation, featuring a wide relative bandwidth of 39.37% (5.97–6.49 GHz and 7.19–9.83 GHz). This study presents an optimization strategy for obtaining microwave dielectric ceramics with low εr, high Q×f, excellent frequency-temperature stability, low sintering temperature, and low density.","PeriodicalId":16173,"journal":{"name":"Journal of Materiomics","volume":"41 1","pages":""},"PeriodicalIF":8.4000,"publicationDate":"2025-04-24","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Tailoring microwave dielectric properties of MgAl5/4(Li1/3Ti2/3)3/4O4 ceramics for multi-band dielectric resonant antenna\",\"authors\":\"Zhicong Chen, Qianbiao Du, Guo Tian, Linzhao Ma, Longxiang Jiang, Chang Jiang, Zeyan Zhou, Hao Li\",\"doi\":\"10.1016/j.jmat.2025.101064\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"This study introduces a novel microwave dielectric ceramic, MgAl5/4(Li1/3Ti2/3)3/4O4, tailored for modern communication technologies. MgAl5/4(Li1/3Ti2/3)3/4O4 ceramics feature a composite spinel structure (Fd-3m space group) comprising MgAl2O4 and Li4Ti5O12 type phases. By substituting Al3+ of MgAl2O4 ceramic with the composite ion (Li1/3Ti2/3)3+, differences in elemental diffusion induced by sintering temperature (1200–1280 °C) significantly affect the microwave dielectric properties: a low εᵣ (11.8) and enhanced microwave properties (Q×f = 79,381 GHz and τf = –28.5×10−6/°C) at 1240 °C. With further optimization of the ceramics, a near-zero τf is realized in 0.93MgAl5/4(Li1/3Ti2/3)3/4O4-0.07CaTiO3 ceramics with excellent comprehensive performance (εr = 14.36, Q×f = 44,144 GHz). Building on this, a multi-band dielectric resonant antenna (DRA) was designed for applications in communication and aeronautical radio navigation, featuring a wide relative bandwidth of 39.37% (5.97–6.49 GHz and 7.19–9.83 GHz). This study presents an optimization strategy for obtaining microwave dielectric ceramics with low εr, high Q×f, excellent frequency-temperature stability, low sintering temperature, and low density.\",\"PeriodicalId\":16173,\"journal\":{\"name\":\"Journal of Materiomics\",\"volume\":\"41 1\",\"pages\":\"\"},\"PeriodicalIF\":8.4000,\"publicationDate\":\"2025-04-24\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Materiomics\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1016/j.jmat.2025.101064\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materiomics","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1016/j.jmat.2025.101064","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}

引用次数: 0

摘要

本文介绍了一种为现代通信技术量身定制的新型微波介质陶瓷MgAl5/4(Li1/3Ti2/3)3/4O4。MgAl5/4(Li1/3Ti2/3)3/4O4陶瓷具有由MgAl2O4和Li4Ti5O12型相组成的复合尖晶石结构（Fd-3m空间群）。用复合离子（Li1/3Ti2/3）3+取代MgAl2O4陶瓷的Al3+，烧结温度（1200 ~ 1280℃）引起的元素扩散差异显著影响了MgAl2O4陶瓷的微波介电性能：1240℃时εᵣ（11.8）较低，微波性能（Q×f = 79,381 GHz, τf = -28.5×10−6/°C）增强。进一步优化陶瓷，得到综合性能优良的0.93MgAl5/4(Li1/3Ti2/3)3/4O4-0.07CaTiO3陶瓷的τf接近于零（εr = 14.36, Q×f = 44,144 GHz）。在此基础上，设计了一种适用于通信和航空无线电导航的多频段介质谐振天线（DRA），相对带宽为39.37% （5.97 ~ 6.49 GHz和7.19 ~ 9.83 GHz）。本研究提出了一种获得低εr、高Q×f、优异的频温稳定性、低烧结温度和低密度微波介质陶瓷的优化策略。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Tailoring microwave dielectric properties of MgAl5/4(Li1/3Ti2/3)3/4O4 ceramics for multi-band dielectric resonant antenna

查看原文本刊更多论文

Tailoring microwave dielectric properties of MgAl5/4(Li1/3Ti2/3)3/4O4 ceramics for multi-band dielectric resonant antenna

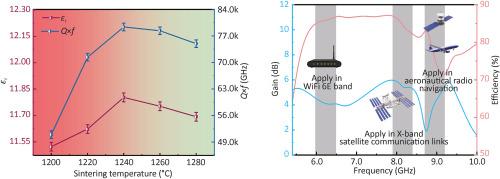

This study introduces a novel microwave dielectric ceramic, MgAl_5/4(Li_1/3Ti_2/3)_3/4O₄, tailored for modern communication technologies. MgAl_5/4(Li_1/3Ti_2/3)_3/4O₄ ceramics feature a composite spinel structure (Fd-3m space group) comprising MgAl₂O₄ and Li₄Ti₅O₁₂ type phases. By substituting Al³⁺ of MgAl₂O₄ ceramic with the composite ion (Li_1/3Ti_2/3)³⁺, differences in elemental diffusion induced by sintering temperature (1200–1280 °C) significantly affect the microwave dielectric properties: a low εᵣ (11.8) and enhanced microwave properties (Q×f = 79,381 GHz and τ_f = –28.5×10⁻⁶/°C) at 1240 °C. With further optimization of the ceramics, a near-zero τ_f is realized in 0.93MgAl_5/4(Li_1/3Ti_2/3)_3/4O₄-0.07CaTiO₃ ceramics with excellent comprehensive performance (ε_r = 14.36, Q×f = 44,144 GHz). Building on this, a multi-band dielectric resonant antenna (DRA) was designed for applications in communication and aeronautical radio navigation, featuring a wide relative bandwidth of 39.37% (5.97–6.49 GHz and 7.19–9.83 GHz). This study presents an optimization strategy for obtaining microwave dielectric ceramics with low ε_r, high Q×f, excellent frequency-temperature stability, low sintering temperature, and low density.
