基于垂直扩展栅极场效应晶体管(VEG-FET)的氢气传感器的设计与分析:综合建模与仿真方法

IF 5.1 2区 材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY
Pramod Martha, Mayank Kohli, Rahul Kumar and Santosh Kumar Behera
{"title":"基于垂直扩展栅极场效应晶体管(VEG-FET)的氢气传感器的设计与分析:综合建模与仿真方法","authors":"Pramod Martha, Mayank Kohli, Rahul Kumar and Santosh Kumar Behera","doi":"10.1039/D4TC04574B","DOIUrl":null,"url":null,"abstract":"<p >In this study, a novel vertically extended gate field effect transistor (VEG-FET)-based hydrogen (H<small><sub>2</sub></small>) gas sensor with a look-up-table (LUT) based modeling and simulation approach is presented. The gate area is extended vertically without affecting the intrinsic parameters to provide a larger area for the adsorption of H<small><sub>2</sub></small> molecules without increasing the sensor footprint. The gate electrode was vertically extended by depositing platinum (Pt) over a channel created in Parylene-C polymer. An analytical model was constructed for the interaction of H<small><sub>2</sub></small> gas with platinum (Pt) to determine the change in the work function (<em>Φ</em><small><sub>M</sub></small>). The Pt work function lowered by 16% for input hydrogen gas pressure (<em>P</em><small><sub>H<small><sub>2</sub></small></sub></small>) of 0 to 0.5 torr. The Pt–H<small><sub>2</sub></small> interaction information is passed to a technology computer-aided design (TCAD) tool for VEG-FET design and simulation. The drain current (<em>I</em><small><sub>DS</sub></small>) of the VEG-FET varies from 150.7 mA without H<small><sub>2</sub></small> gas to 310.3 mA at 0.5 torr hydrogen gas pressure at gate to source (<em>V</em><small><sub>GS</sub></small>) and drain to source (<em>V</em><small><sub>DS</sub></small>) voltage of 3 V. Both bioreaction and TCAD results are passed to Cadence Virtuoso for a complete gas sensor with read-out circuit simulation using the LUT method. A VEG-FET based common source amplifier with resistive load was designed and simulated, and the output voltage (<em>V</em><small><sub>out</sub></small>) varied by ∼40% for <em>P</em><small><sub>H<small><sub>2</sub></small></sub></small> = 0.5 torr.</p>","PeriodicalId":84,"journal":{"name":"Journal of Materials Chemistry C","volume":" 10","pages":" 5110-5118"},"PeriodicalIF":5.1000,"publicationDate":"2025-01-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Design and analysis of a vertically extended gate field effect transistor (VEG-FET)-based hydrogen gas sensor: a comprehensive modeling and simulation approach\",\"authors\":\"Pramod Martha, Mayank Kohli, Rahul Kumar and Santosh Kumar Behera\",\"doi\":\"10.1039/D4TC04574B\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >In this study, a novel vertically extended gate field effect transistor (VEG-FET)-based hydrogen (H<small><sub>2</sub></small>) gas sensor with a look-up-table (LUT) based modeling and simulation approach is presented. The gate area is extended vertically without affecting the intrinsic parameters to provide a larger area for the adsorption of H<small><sub>2</sub></small> molecules without increasing the sensor footprint. The gate electrode was vertically extended by depositing platinum (Pt) over a channel created in Parylene-C polymer. An analytical model was constructed for the interaction of H<small><sub>2</sub></small> gas with platinum (Pt) to determine the change in the work function (<em>Φ</em><small><sub>M</sub></small>). The Pt work function lowered by 16% for input hydrogen gas pressure (<em>P</em><small><sub>H<small><sub>2</sub></small></sub></small>) of 0 to 0.5 torr. The Pt–H<small><sub>2</sub></small> interaction information is passed to a technology computer-aided design (TCAD) tool for VEG-FET design and simulation. The drain current (<em>I</em><small><sub>DS</sub></small>) of the VEG-FET varies from 150.7 mA without H<small><sub>2</sub></small> gas to 310.3 mA at 0.5 torr hydrogen gas pressure at gate to source (<em>V</em><small><sub>GS</sub></small>) and drain to source (<em>V</em><small><sub>DS</sub></small>) voltage of 3 V. Both bioreaction and TCAD results are passed to Cadence Virtuoso for a complete gas sensor with read-out circuit simulation using the LUT method. A VEG-FET based common source amplifier with resistive load was designed and simulated, and the output voltage (<em>V</em><small><sub>out</sub></small>) varied by ∼40% for <em>P</em><small><sub>H<small><sub>2</sub></small></sub></small> = 0.5 torr.</p>\",\"PeriodicalId\":84,\"journal\":{\"name\":\"Journal of Materials Chemistry C\",\"volume\":\" 10\",\"pages\":\" 5110-5118\"},\"PeriodicalIF\":5.1000,\"publicationDate\":\"2025-01-07\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Materials Chemistry C\",\"FirstCategoryId\":\"1\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/tc/d4tc04574b\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Chemistry C","FirstCategoryId":"1","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/tc/d4tc04574b","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

在这项研究中,提出了一种新型的基于垂直扩展栅极场效应晶体管(VEG-FET)的氢气(H2)气体传感器,该传感器具有基于查找表(LUT)的建模和仿真方法。栅极区域在不影响本征参数的情况下垂直延伸,在不增加传感器足迹的情况下为H2分子提供更大的吸附面积。栅极通过在聚苯乙烯- c聚合物中形成的通道上沉积铂(Pt)而垂直延伸。建立了H2气体与铂(Pt)相互作用的解析模型,以确定功函数的变化(ΦM)。当输入氢气压力(PH2)为0 ~ 0.5 torr时,Pt功函数降低16%。Pt-H2相互作用信息传递给技术计算机辅助设计(TCAD)工具,用于VEG-FET的设计和仿真。在无H2气体时,VEG-FET的漏极电流(IDS)从150.7 mA变化到0.5 torr氢气压力下,栅极到源极(VGS)和漏极到源极(VDS)电压为3 V时的310.3 mA。生物反应和TCAD结果都传递给Cadence Virtuoso,使用LUT方法进行完整的气体传感器读出电路模拟。设计并仿真了一种基于VEG-FET的阻性负载共源放大器,当PH2 = 0.5 torr时,输出电压(Vout)变化约40%。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Design and analysis of a vertically extended gate field effect transistor (VEG-FET)-based hydrogen gas sensor: a comprehensive modeling and simulation approach

Design and analysis of a vertically extended gate field effect transistor (VEG-FET)-based hydrogen gas sensor: a comprehensive modeling and simulation approach

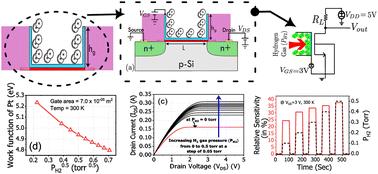

In this study, a novel vertically extended gate field effect transistor (VEG-FET)-based hydrogen (H2) gas sensor with a look-up-table (LUT) based modeling and simulation approach is presented. The gate area is extended vertically without affecting the intrinsic parameters to provide a larger area for the adsorption of H2 molecules without increasing the sensor footprint. The gate electrode was vertically extended by depositing platinum (Pt) over a channel created in Parylene-C polymer. An analytical model was constructed for the interaction of H2 gas with platinum (Pt) to determine the change in the work function (ΦM). The Pt work function lowered by 16% for input hydrogen gas pressure (PH2) of 0 to 0.5 torr. The Pt–H2 interaction information is passed to a technology computer-aided design (TCAD) tool for VEG-FET design and simulation. The drain current (IDS) of the VEG-FET varies from 150.7 mA without H2 gas to 310.3 mA at 0.5 torr hydrogen gas pressure at gate to source (VGS) and drain to source (VDS) voltage of 3 V. Both bioreaction and TCAD results are passed to Cadence Virtuoso for a complete gas sensor with read-out circuit simulation using the LUT method. A VEG-FET based common source amplifier with resistive load was designed and simulated, and the output voltage (Vout) varied by ∼40% for PH2 = 0.5 torr.
