可调的颜色稳定的混合白色oled结合荧光和TADF发射器在一个单一的发射层†

IF 5.1 2区 材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY
Upasana Deori, Thamodharan Viswanathan, Nisha Yadav and Pachaiyappan Rajamalli
{"title":"可调的颜色稳定的混合白色oled结合荧光和TADF发射器在一个单一的发射层†","authors":"Upasana Deori, Thamodharan Viswanathan, Nisha Yadav and Pachaiyappan Rajamalli","doi":"10.1039/D4TC03934C","DOIUrl":null,"url":null,"abstract":"<p >Hybrid metal-free white organic light-emitting diodes (WOLEDs) based on the complementary color of a fluorescent dopant and thermally activated delayed fluorescence (TADF) emitters in a single emissive layer structure have drawn considerable attention and achieved enormous progress for their potential in complete exciton utilisation and a simple design structure. However, WOLEDs made of a single emissive layer suffer from poor color stability and insufficient blue emission for a well-balanced white light. Here, we designed and synthesised an orange fluorescent emitter with a peak maximum at 589 nm, which was utilised in fabricating WOLEDs by combining with a robust sky-blue TADF material. The resulting hybrid WOLEDs showed remarkable electroluminescence performances with a maximum external quantum efficiency (EQE) of 23.8%, and a balanced white emission could be attained with Commission Internationale de l’Eclairage (CIE) coordinates of (0.33, 0.43). The correlated color temperature (CCT) is measured to be 5863 K, resembling the sunlight temperature at noon. Furthermore, the white light can be tuned to cool and warm white emissions by controlling the concentration of the fluorescent dopant. All the WOLEDs exhibit excellent color stability, maintaining minimal shifts in the CIE coordinates even at high brightness/voltages.</p>","PeriodicalId":84,"journal":{"name":"Journal of Materials Chemistry C","volume":" 3","pages":" 1449-1456"},"PeriodicalIF":5.1000,"publicationDate":"2024-11-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Tunable color-stable hybrid white OLEDs by combining fluorescent and TADF emitters in a single emissive layer†\",\"authors\":\"Upasana Deori, Thamodharan Viswanathan, Nisha Yadav and Pachaiyappan Rajamalli\",\"doi\":\"10.1039/D4TC03934C\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Hybrid metal-free white organic light-emitting diodes (WOLEDs) based on the complementary color of a fluorescent dopant and thermally activated delayed fluorescence (TADF) emitters in a single emissive layer structure have drawn considerable attention and achieved enormous progress for their potential in complete exciton utilisation and a simple design structure. However, WOLEDs made of a single emissive layer suffer from poor color stability and insufficient blue emission for a well-balanced white light. Here, we designed and synthesised an orange fluorescent emitter with a peak maximum at 589 nm, which was utilised in fabricating WOLEDs by combining with a robust sky-blue TADF material. The resulting hybrid WOLEDs showed remarkable electroluminescence performances with a maximum external quantum efficiency (EQE) of 23.8%, and a balanced white emission could be attained with Commission Internationale de l’Eclairage (CIE) coordinates of (0.33, 0.43). The correlated color temperature (CCT) is measured to be 5863 K, resembling the sunlight temperature at noon. Furthermore, the white light can be tuned to cool and warm white emissions by controlling the concentration of the fluorescent dopant. All the WOLEDs exhibit excellent color stability, maintaining minimal shifts in the CIE coordinates even at high brightness/voltages.</p>\",\"PeriodicalId\":84,\"journal\":{\"name\":\"Journal of Materials Chemistry C\",\"volume\":\" 3\",\"pages\":\" 1449-1456\"},\"PeriodicalIF\":5.1000,\"publicationDate\":\"2024-11-14\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Materials Chemistry C\",\"FirstCategoryId\":\"1\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/tc/d4tc03934c\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Chemistry C","FirstCategoryId":"1","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/tc/d4tc03934c","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

基于荧光掺杂的互补色和单发射层结构的热激活延迟荧光(TADF)发射体的杂化无金属白色有机发光二极管(WOLEDs)因其具有完全利用激子和简单设计结构的潜力而受到广泛关注并取得了巨大进展。然而,由单一发射层制成的WOLEDs存在颜色稳定性差和蓝色发射不足的问题,无法获得平衡良好的白光。在这里,我们设计并合成了一个峰值为589 nm的橙色荧光发射器,该发射器与坚固的天蓝色TADF材料结合用于制造WOLEDs。所制得的杂化WOLEDs具有优异的电致发光性能,最大外量子效率(EQE)达到23.8%,在国际发光委员会(CIE)坐标为(0.33,0.43)处可获得平衡的白色发光。相关色温(CCT)测量值为5863 K,与正午的阳光温度相似。此外,通过控制荧光掺杂剂的浓度,可以将白光调谐为冷白光和暖白光。所有WOLEDs都具有出色的色彩稳定性,即使在高亮度/高电压下也能保持最小的CIE坐标偏移。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Tunable color-stable hybrid white OLEDs by combining fluorescent and TADF emitters in a single emissive layer†

Tunable color-stable hybrid white OLEDs by combining fluorescent and TADF emitters in a single emissive layer†

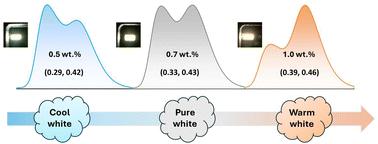

Hybrid metal-free white organic light-emitting diodes (WOLEDs) based on the complementary color of a fluorescent dopant and thermally activated delayed fluorescence (TADF) emitters in a single emissive layer structure have drawn considerable attention and achieved enormous progress for their potential in complete exciton utilisation and a simple design structure. However, WOLEDs made of a single emissive layer suffer from poor color stability and insufficient blue emission for a well-balanced white light. Here, we designed and synthesised an orange fluorescent emitter with a peak maximum at 589 nm, which was utilised in fabricating WOLEDs by combining with a robust sky-blue TADF material. The resulting hybrid WOLEDs showed remarkable electroluminescence performances with a maximum external quantum efficiency (EQE) of 23.8%, and a balanced white emission could be attained with Commission Internationale de l’Eclairage (CIE) coordinates of (0.33, 0.43). The correlated color temperature (CCT) is measured to be 5863 K, resembling the sunlight temperature at noon. Furthermore, the white light can be tuned to cool and warm white emissions by controlling the concentration of the fluorescent dopant. All the WOLEDs exhibit excellent color stability, maintaining minimal shifts in the CIE coordinates even at high brightness/voltages.
