双层位错金属光栅的荧光增强特性研究

IF 5.7 2区材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY

Journal of Materials Chemistry C Pub Date : 2024-09-12 DOI:10.1039/d4tc01680g

Dongliang Tian, Zhiyuan Wang, Bin Han, Jie Song, Chunying Liu, Zhihui Chen, Yang Wang

{"title":"双层位错金属光栅的荧光增强特性研究","authors":"Dongliang Tian, Zhiyuan Wang, Bin Han, Jie Song, Chunying Liu, Zhihui Chen, Yang Wang","doi":"10.1039/d4tc01680g","DOIUrl":null,"url":null,"abstract":"In this paper, a double-layer dislocated metal grating hybrid structure is proposed, which is composed of a dislocated metal grating and an inclined dielectric grating. By locating the fluorescent material in the polymethyl methacrylate (PMMA) region of the hybrid structure, the structure achieves a remarkable far-field fluorescence directional emission enhancement. The effects of polarization state, metal grating period, and other parameters on directional fluorescence emission enhancement are studied by the finite-difference time-domain method. After optimizing the parameters, the fluorescence enhancement factor is as high as 1560-fold, of which the emission enhancement is 39-fold and the excitation enhancement is 40-fold. The far-field radiation angle is less than 18°, and the far-field radiation characteristics are improved. This work has application potential in fluorescence detection, imaging, and other luminescence devices.","PeriodicalId":84,"journal":{"name":"Journal of Materials Chemistry C","volume":null,"pages":null},"PeriodicalIF":5.7000,"publicationDate":"2024-09-12","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Study on the fluorescence enhancement characteristics of double-layer dislocated metal gratings\",\"authors\":\"Dongliang Tian, Zhiyuan Wang, Bin Han, Jie Song, Chunying Liu, Zhihui Chen, Yang Wang\",\"doi\":\"10.1039/d4tc01680g\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"In this paper, a double-layer dislocated metal grating hybrid structure is proposed, which is composed of a dislocated metal grating and an inclined dielectric grating. By locating the fluorescent material in the polymethyl methacrylate (PMMA) region of the hybrid structure, the structure achieves a remarkable far-field fluorescence directional emission enhancement. The effects of polarization state, metal grating period, and other parameters on directional fluorescence emission enhancement are studied by the finite-difference time-domain method. After optimizing the parameters, the fluorescence enhancement factor is as high as 1560-fold, of which the emission enhancement is 39-fold and the excitation enhancement is 40-fold. The far-field radiation angle is less than 18°, and the far-field radiation characteristics are improved. This work has application potential in fluorescence detection, imaging, and other luminescence devices.\",\"PeriodicalId\":84,\"journal\":{\"name\":\"Journal of Materials Chemistry C\",\"volume\":null,\"pages\":null},\"PeriodicalIF\":5.7000,\"publicationDate\":\"2024-09-12\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Materials Chemistry C\",\"FirstCategoryId\":\"1\",\"ListUrlMain\":\"https://doi.org/10.1039/d4tc01680g\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Chemistry C","FirstCategoryId":"1","ListUrlMain":"https://doi.org/10.1039/d4tc01680g","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

本文提出了一种双层位错金属光栅混合结构，它由位错金属光栅和倾斜介质光栅组成。通过将荧光材料置于混合结构的聚甲基丙烯酸甲酯（PMMA）区域，该结构实现了显著的远场荧光定向发射增强。利用有限差分时域法研究了偏振态、金属光栅周期和其他参数对定向荧光发射增强的影响。优化参数后，荧光增强因子高达 1560 倍，其中发射增强 39 倍，激发增强 40 倍。远场辐射角小于 18°，改善了远场辐射特性。这项工作在荧光检测、成像和其他发光器件方面具有应用潜力。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Study on the fluorescence enhancement characteristics of double-layer dislocated metal gratings

查看原文本刊更多论文

Study on the fluorescence enhancement characteristics of double-layer dislocated metal gratings

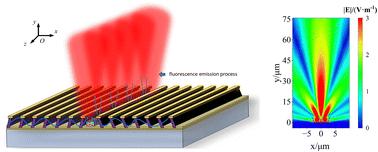

In this paper, a double-layer dislocated metal grating hybrid structure is proposed, which is composed of a dislocated metal grating and an inclined dielectric grating. By locating the fluorescent material in the polymethyl methacrylate (PMMA) region of the hybrid structure, the structure achieves a remarkable far-field fluorescence directional emission enhancement. The effects of polarization state, metal grating period, and other parameters on directional fluorescence emission enhancement are studied by the finite-difference time-domain method. After optimizing the parameters, the fluorescence enhancement factor is as high as 1560-fold, of which the emission enhancement is 39-fold and the excitation enhancement is 40-fold. The far-field radiation angle is less than 18°, and the far-field radiation characteristics are improved. This work has application potential in fluorescence detection, imaging, and other luminescence devices.
