Selectivity of β-Cyclodextrin Polymer toward Aquatic Contaminants: Insights from Ultrahigh-Resolution Mass Spectrometry of Dissolved Organic Matter

IF 6.7 1区 化学 Q1 CHEMISTRY, ANALYTICAL
David Glöckler, Mourad Harir, Philippe Schmitt-Kopplin, Martin Elsner and Rani Bakkour*,
{"title":"Selectivity of β-Cyclodextrin Polymer toward Aquatic Contaminants: Insights from Ultrahigh-Resolution Mass Spectrometry of Dissolved Organic Matter","authors":"David Glöckler,&nbsp;Mourad Harir,&nbsp;Philippe Schmitt-Kopplin,&nbsp;Martin Elsner and Rani Bakkour*,&nbsp;","doi":"10.1021/acs.analchem.3c01394","DOIUrl":null,"url":null,"abstract":"<p >Selectivity in solid-phase extraction (SPE) materials has become increasingly important for analyte enrichment in sensitive analytical workflows to alleviate detrimental matrix effects. Molecular-level investigation of matrix constituents, which are preferentially extracted or excluded, can provide the analytical chemist with valuable information to learn about their control on sorbent selectivity. In this work, we employ nontargeted Fourier transform ion cyclotron resonance mass spectrometry (FTICR MS) to elucidate the molecular chemodiversity of freshwater-derived dissolved organic matter (DOM) extracted by the selective model sorbent β-cyclodextrin polymer (β-CDP) in comparison to conventional, universal SPE sorbents (i.e., Oasis HLB, Supel-Select HLB, and LiChrolut EN). Statistical analysis of MS data corroborated the highly selective nature of β-CDP by revealing the extracted DOM spectra that are most dissimilar to original compositions. We found that its selectivity was characterized by pronounced discrimination against highly oxygenated and unsaturated DOM compounds, which were associated with the classes of lignin-like, tannin-like, and carboxylic-rich alicyclic molecules. In contrast, conventional sorbents excluded less highly oxygenated compounds and showed a more universal extraction behavior for a wide range of DOM compositional space. We lay these findings in a larger context that aids the analyst in obtaining an <i>a priori</i> estimate of sorbent selectivity toward any target analyte of interest serving thereby an optimization of sample preparation. This study highlights the great value of nontargeted ultrahigh-resolution MS for better understanding of targeted analytics and provides new insights into the selective sorption behavior of novel sorbents.</p>","PeriodicalId":27,"journal":{"name":"Analytical Chemistry","volume":"95 42","pages":"15505–15513"},"PeriodicalIF":6.7000,"publicationDate":"2023-10-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Analytical Chemistry","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.analchem.3c01394","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, ANALYTICAL","Score":null,"Total":0}
引用次数: 0

Abstract

Selectivity in solid-phase extraction (SPE) materials has become increasingly important for analyte enrichment in sensitive analytical workflows to alleviate detrimental matrix effects. Molecular-level investigation of matrix constituents, which are preferentially extracted or excluded, can provide the analytical chemist with valuable information to learn about their control on sorbent selectivity. In this work, we employ nontargeted Fourier transform ion cyclotron resonance mass spectrometry (FTICR MS) to elucidate the molecular chemodiversity of freshwater-derived dissolved organic matter (DOM) extracted by the selective model sorbent β-cyclodextrin polymer (β-CDP) in comparison to conventional, universal SPE sorbents (i.e., Oasis HLB, Supel-Select HLB, and LiChrolut EN). Statistical analysis of MS data corroborated the highly selective nature of β-CDP by revealing the extracted DOM spectra that are most dissimilar to original compositions. We found that its selectivity was characterized by pronounced discrimination against highly oxygenated and unsaturated DOM compounds, which were associated with the classes of lignin-like, tannin-like, and carboxylic-rich alicyclic molecules. In contrast, conventional sorbents excluded less highly oxygenated compounds and showed a more universal extraction behavior for a wide range of DOM compositional space. We lay these findings in a larger context that aids the analyst in obtaining an a priori estimate of sorbent selectivity toward any target analyte of interest serving thereby an optimization of sample preparation. This study highlights the great value of nontargeted ultrahigh-resolution MS for better understanding of targeted analytics and provides new insights into the selective sorption behavior of novel sorbents.

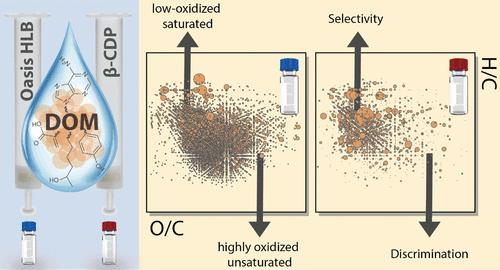

Abstract Image

β-环糊精聚合物对水污染物的选择性:从溶解有机物的超高分辨率质谱中的见解。
固相萃取(SPE)材料的选择性对于敏感分析工作流程中的分析物富集越来越重要,以减轻有害的基质影响。优先提取或排除的基质成分的分子水平研究可以为分析化学家提供有价值的信息,以了解其对吸附剂选择性的控制。在这项工作中,我们使用非靶向傅立叶变换离子回旋共振质谱(FTICR MS)来阐明选择性模型吸附剂β-环糊精聚合物(β-CDP)与传统的通用SPE吸附剂(即Oasis HLB、Supel Select HLB和LiChrolut EN)相比提取的淡水衍生溶解有机物(DOM)的分子化学多样性。MS数据的统计分析通过揭示与原始成分最不相似的提取DOM光谱,证实了β-CDP的高度选择性。我们发现,它的选择性特征是对高含氧和不饱和DOM化合物的显著区分,这些化合物与类木质素、类单宁和富含羧酸的脂环族分子有关。相反,传统的吸附剂排除了含氧量较低的化合物,并在广泛的DOM组成空间中表现出更普遍的提取行为。我们将这些发现放在一个更大的背景下,帮助分析员获得对任何感兴趣的目标分析物的吸附剂选择性的先验估计,从而优化样品制备。这项研究强调了非靶向超高分辨率MS在更好地理解靶向分析方面的巨大价值,并为新型吸附剂的选择性吸附行为提供了新的见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
求助全文
约1分钟内获得全文 求助全文
来源期刊
Analytical Chemistry
Analytical Chemistry 化学-分析化学
CiteScore
12.10
自引率
12.20%
发文量
1949
审稿时长
1.4 months
期刊介绍: Analytical Chemistry, a peer-reviewed research journal, focuses on disseminating new and original knowledge across all branches of analytical chemistry. Fundamental articles may explore general principles of chemical measurement science and need not directly address existing or potential analytical methodology. They can be entirely theoretical or report experimental results. Contributions may cover various phases of analytical operations, including sampling, bioanalysis, electrochemistry, mass spectrometry, microscale and nanoscale systems, environmental analysis, separations, spectroscopy, chemical reactions and selectivity, instrumentation, imaging, surface analysis, and data processing. Papers discussing known analytical methods should present a significant, original application of the method, a notable improvement, or results on an important analyte.
×
