Monolithic Co-Integration of Vertical FET and Memristor for 1T1R Cell

IF 5.3 2区 材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY
Fubo Jiao, Weiqi Dang, Gong-Jie Ruan, Jiameng Sun, Xiaoyu Sun, Dehe Kong, Yinzhi Huang, Yuxuan Yuan, Qin Liu, Sicheng Chen, Long Zhao, Cong Wang, Pengfei Wang, Chen Pan, Yajun Fu, Shi-Jun Liang
{"title":"Monolithic Co-Integration of Vertical FET and Memristor for 1T1R Cell","authors":"Fubo Jiao, Weiqi Dang, Gong-Jie Ruan, Jiameng Sun, Xiaoyu Sun, Dehe Kong, Yinzhi Huang, Yuxuan Yuan, Qin Liu, Sicheng Chen, Long Zhao, Cong Wang, Pengfei Wang, Chen Pan, Yajun Fu, Shi-Jun Liang","doi":"10.1002/aelm.202500742","DOIUrl":null,"url":null,"abstract":"One-transistor-one-memristor (1T1R) structures are essential for large-scale memristor arrays, as they enable precise read and write operations for individual cells. Currently, most 1T1R designs employ planar field-effect transistors with laterally arranged source, drain, and channel, which limit the achievable array density within a planar layout. Here, we demonstrate a compact, vertically integrated 1T1R cell by stacking a MoS<sub>2</sub> vertical field-effect transistor (VFET) with a HfO<sub>2</sub> memristor. The VFET channel achieves a footprint of only 10 µm<sup>2</sup>, which reduces reliance on advanced lithography and enables a reduced 1T1R cell area compared with some reported standard 0.18 µm silicon-based 1T1R implementations. The cell exhibits highly uniform resistive switching, with coefficients of variation (<i>C</i><sub>v</sub>) of only 3.4% in the high-resistance state (HRS) and 6.2% in the low-resistance state (LRS). Furthermore, it achieves quasi-linear conductance modulation across six discrete levels via VFET gate control. This demonstration establishes a scalable, area-efficient platform for 3D in-memory computing and neuromorphic structures.","PeriodicalId":110,"journal":{"name":"Advanced Electronic Materials","volume":"9 1","pages":""},"PeriodicalIF":5.3000,"publicationDate":"2026-03-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Electronic Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/aelm.202500742","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

One-transistor-one-memristor (1T1R) structures are essential for large-scale memristor arrays, as they enable precise read and write operations for individual cells. Currently, most 1T1R designs employ planar field-effect transistors with laterally arranged source, drain, and channel, which limit the achievable array density within a planar layout. Here, we demonstrate a compact, vertically integrated 1T1R cell by stacking a MoS2 vertical field-effect transistor (VFET) with a HfO2 memristor. The VFET channel achieves a footprint of only 10 µm2, which reduces reliance on advanced lithography and enables a reduced 1T1R cell area compared with some reported standard 0.18 µm silicon-based 1T1R implementations. The cell exhibits highly uniform resistive switching, with coefficients of variation (Cv) of only 3.4% in the high-resistance state (HRS) and 6.2% in the low-resistance state (LRS). Furthermore, it achieves quasi-linear conductance modulation across six discrete levels via VFET gate control. This demonstration establishes a scalable, area-efficient platform for 3D in-memory computing and neuromorphic structures.

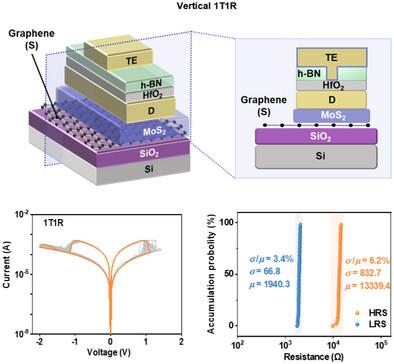

Abstract Image

1T1R电池垂直场效应管与忆阻器的单片协整
单晶体管-单忆阻器(1T1R)结构对于大规模忆阻器阵列是必不可少的,因为它们可以对单个单元进行精确的读写操作。目前,大多数1T1R设计采用横向排列源极、漏极和通道的平面场效应晶体管,这限制了在平面布局内可实现的阵列密度。在这里,我们展示了一个紧凑的,垂直集成的1T1R电池,通过堆叠一个MoS2垂直场效应晶体管(VFET)与一个HfO2忆阻器。VFET通道的占地面积仅为10µm2,这减少了对先进光刻技术的依赖,与一些报道的标准0.18µm硅基1T1R实现相比,可以减少1T1R单元面积。该电池表现出高度均匀的电阻开关,在高阻状态(HRS)和低阻状态(LRS)下,变异系数(Cv)仅为3.4%和6.2%。此外,它通过VFET栅极控制实现了六个离散电平的准线性电导调制。该演示为3D内存计算和神经形态结构建立了一个可扩展的,面积高效的平台。
