High-throughput investigation of electroepitaxial growth of Cu2O on Cu substrates

IF 4.6 3区 工程技术 Q2 ENGINEERING, ELECTRICAL & ELECTRONIC
Yu-Hsuan Hsiao, Da-Jin Dai, Liuwen Chang
{"title":"High-throughput investigation of electroepitaxial growth of Cu2O on Cu substrates","authors":"Yu-Hsuan Hsiao,&nbsp;Da-Jin Dai,&nbsp;Liuwen Chang","doi":"10.1016/j.mssp.2026.110468","DOIUrl":null,"url":null,"abstract":"<div><div>The present study investigates epitaxial growth of Cu<sub>2</sub>O on Cu through electrochemical deposition using a high-throughput method. It used a combinatorial substrate approach involving polycrystalline Cu substrates followed by verification tests involving single-crystal substrates to clarify the effects of electrolyte composition, pH, current density, and substrate orientation on the electroepitaxy of Cu<sub>2</sub>O. The electron backscatter diffraction technique was used to analyze both the orientation and crystallinity of Cu<sub>2</sub>O. The results reveal that electrolyte pH, current density, and substrate orientation are all critical factors governing Cu<sub>2</sub>O electroepitaxy. Two reported epitaxial orientation relationships (ORs), (001)<sub>Cu2O</sub>//(001)<sub>Cu</sub>, [010]<sub>Cu2O</sub>//[010]<sub>Cu</sub> and (111)<sub>Cu2O</sub>//(111)<sub>Cu</sub>, [1–10]<sub>Cu2O</sub>//[0–11]<sub>Cu</sub>, were associated with a new OR of (111)<sub>Cu2O</sub>//(001)<sub>Cu</sub>, [1–10]<sub>Cu2O</sub>//[1–10]<sub>Cu</sub>. Epilayers with (111) and (110) orientations, free of twin variants and secondary orientations, were obtained in two electrolytes at 0.25 mA/cm<sup>2</sup> in accordance with the established OR maps. Among these, the (110) Cu<sub>2</sub>O epilayers exhibited the highest crystallinity, with a rocking curve FWHM of 0.97–1.05°, surpassing all previously reported electrochemically deposited epilayers. Furthermore, the correlation established between EBSD-derived average orientation spread and XRD rocking curve FWHM demonstrates that EBSD can assess not only the orientations of the substrate and epilayer but also their crystallinity.</div></div>","PeriodicalId":18240,"journal":{"name":"Materials Science in Semiconductor Processing","volume":"207 ","pages":"Article 110468"},"PeriodicalIF":4.6000,"publicationDate":"2026-06-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materials Science in Semiconductor Processing","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S1369800126000648","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2026/2/2 0:00:00","PubModel":"Epub","JCR":"Q2","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}
引用次数: 0

Abstract

The present study investigates epitaxial growth of Cu2O on Cu through electrochemical deposition using a high-throughput method. It used a combinatorial substrate approach involving polycrystalline Cu substrates followed by verification tests involving single-crystal substrates to clarify the effects of electrolyte composition, pH, current density, and substrate orientation on the electroepitaxy of Cu2O. The electron backscatter diffraction technique was used to analyze both the orientation and crystallinity of Cu2O. The results reveal that electrolyte pH, current density, and substrate orientation are all critical factors governing Cu2O electroepitaxy. Two reported epitaxial orientation relationships (ORs), (001)Cu2O//(001)Cu, [010]Cu2O//[010]Cu and (111)Cu2O//(111)Cu, [1–10]Cu2O//[0–11]Cu, were associated with a new OR of (111)Cu2O//(001)Cu, [1–10]Cu2O//[1–10]Cu. Epilayers with (111) and (110) orientations, free of twin variants and secondary orientations, were obtained in two electrolytes at 0.25 mA/cm2 in accordance with the established OR maps. Among these, the (110) Cu2O epilayers exhibited the highest crystallinity, with a rocking curve FWHM of 0.97–1.05°, surpassing all previously reported electrochemically deposited epilayers. Furthermore, the correlation established between EBSD-derived average orientation spread and XRD rocking curve FWHM demonstrates that EBSD can assess not only the orientations of the substrate and epilayer but also their crystallinity.

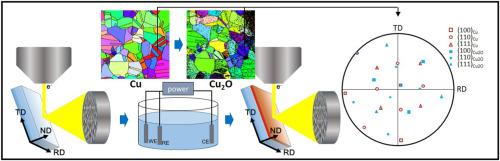

Abstract Image

Cu衬底上Cu2O电外延生长的高通量研究
本研究采用高通量的电化学沉积方法研究了Cu2O在Cu表面的外延生长。它采用了一种组合衬底方法,包括多晶铜衬底,然后进行了单晶衬底的验证测试,以阐明电解质组成、pH值、电流密度和衬底取向对Cu2O电外延的影响。利用电子背散射衍射技术对Cu2O的取向和结晶度进行了分析。结果表明,电解液pH、电流密度和衬底取向都是影响Cu2O电外延的关键因素。两个已报道的外延取向关系(ORs) (001)Cu2O//(001)Cu, [010]Cu2O//[010]Cu和(111)Cu2O//(111)Cu, [1-10]Cu2O//[0-11]Cu与新的OR (111)Cu2O//(001)Cu, [1-10]Cu2O//[1-10]Cu相关联。根据建立的OR图,在0.25 mA/cm2的两种电解质中获得了(111)和(110)取向的脱毛层,没有双变异体和二次取向。其中,(110)Cu2O脱毛膜结晶度最高,其摆动曲线FWHM为0.97 ~ 1.05°,超过了之前报道的所有电化学沉积脱毛膜。此外,EBSD推导的平均取向扩展与XRD摇摆曲线FWHM之间的相关性表明,EBSD不仅可以评估衬底和涂层的取向,还可以评估它们的结晶度。
