NMRMind: A Transformer-Based Model Enabling the Elucidation from Multidimensional NMR to Structures

Abstract

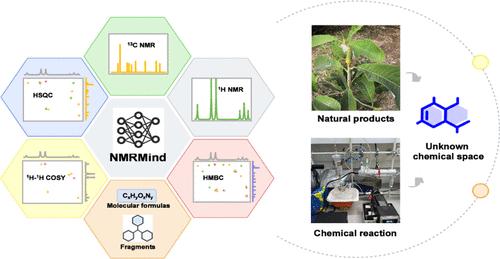

Nuclear magnetic resonance (NMR) data provides rich quantum information on molecular structure, which is closely related to chemical structure and widely used for structural characterization in chemical discovery. Despite substantial advances in spectral analysis techniques, few existing models have demonstrated satisfactory performance in accurate NMR interpretation. Herein, we introduce NMRMind, a Transformer-based generative framework that directly elucidates molecular structures from NMR spectral data. NMRMind was pretrained on a data set comprising 45 million 1D NMR spectra and subsequently fine-tuned on a self-curated benchmark consisting of 2.2 million 1D and 2D NMR spectra. Using a mixed-modality dropout strategy during training, NMRMind achieved excellent performance, attaining a Top-1 accuracy of 92.07% across all input conditions on the structure elucidation task with a speed of <0.05 s per elucidation. Additionally, NMRMind maintained a Top-1 accuracy of 85.10% when only one-dimensional and two-dimensional NMR data were used as input, without considering molecular formulas or fragments. Moreover, the application of NMRMind facilitated the discovery of six previously uncharacterized natural products from Magnolia officinalis and successfully elucidated the structures of six unexpected products resulting from synthetic reactions, thereby expanding the accessible chemical space and providing novel insights into chemical mechanisms. These results demonstrate that NMRMind is a powerful and generalizable platform for chemistry research.
