Generation of synthetic TSPO PET maps from structural MRI images.

Abstract

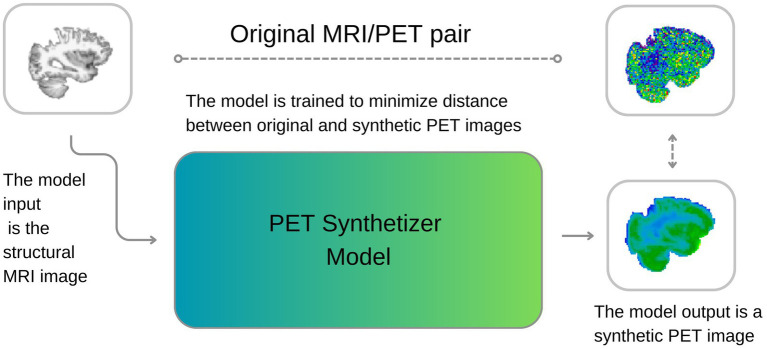

Introduction: Neuroinflammation, a pathophysiological process involved in numerous disorders, is typically imaged using [¹¹C]PBR28 (or TSPO) PET. However, this technique is limited by high costs and ionizing radiation, restricting its widespread clinical use. MRI, a more accessible alternative, is commonly used for structural or functional imaging, but when used using traditional approaches has limited sensitivity to specific molecular processes. This study aims to develop a deep learning model to generate TSPO PET images from structural MRI data collected in human subjects.

Methods: A total of 204 scans, from participants with knee osteoarthritis (n = 15 scanned once, 15 scanned twice, 14 scanned three times), back pain (n = 40 scanned twice, 3 scanned three times), and healthy controls (n = 28, scanned once), underwent simultaneous 3 T MRI and [¹¹C]PBR28 TSPO PET scans. A 3D U-Net model was trained on 80% of these PET-MRI pairs and validated using 5-fold cross-validation. The model's accuracy in reconstructed PET from MRI only was assessed using various intensity and noise metrics.

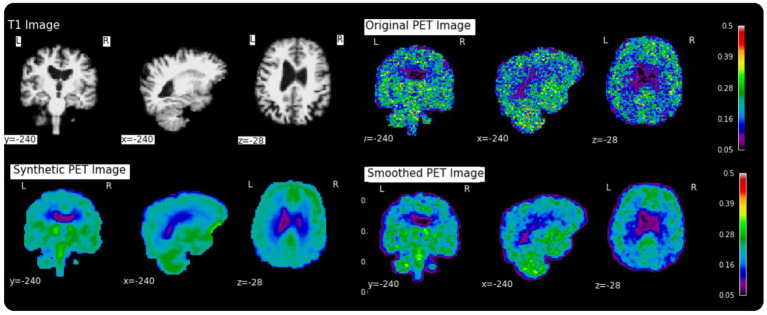

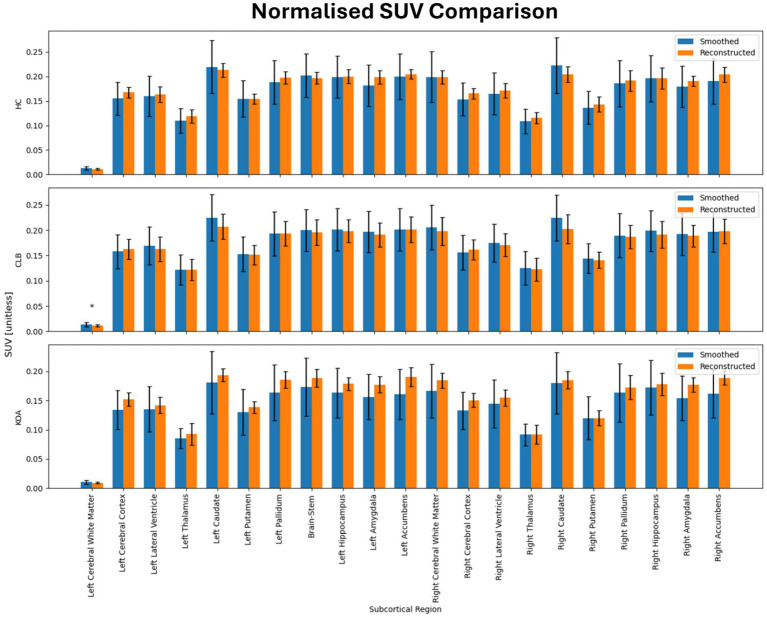

Results: The model achieved a low voxel-wise mean squared error (0.0033 ± 0.0010) across all folds and a median contrast-to-noise ratio of 0.0640 ± 0.2500 when comparing true to reconstructed PET images. The synthesized PET images accurately replicated the spatial patterns observed in the original PET data. Additionally, the reconstruction accuracy was maintained even after spatial normalization.

Discussion: This study demonstrates that deep learning can accurately synthesize TSPO PET images from conventional, T1-weighted MRI. This approach could enable low-cost, noninvasive neuroinflammation imaging, expanding the clinical applicability of this imaging method.
