Colossal photodetection enhancement via plasmon–exciton synergy in ultra-smooth CsPbBr3 microplates†

IF 5.1 2区 材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY
Zhaozhi Guan, Hua Mi, Zairan Liu, Yan Tian, Haojian Lin, Huanjun Chen, Shaozhi Deng and Fei Liu
{"title":"Colossal photodetection enhancement via plasmon–exciton synergy in ultra-smooth CsPbBr3 microplates†","authors":"Zhaozhi Guan, Hua Mi, Zairan Liu, Yan Tian, Haojian Lin, Huanjun Chen, Shaozhi Deng and Fei Liu","doi":"10.1039/D4TC02690J","DOIUrl":null,"url":null,"abstract":"<p >All-inorganic perovskites have a high absorption coefficient, long carrier diffusion length, large carrier mobility, tunable direct bandgap and good ambient stability and are therefore considered as an ideal candidate for the new generation of optoelectronic devices. Many methods have been used to improve their photoresponsive performances, among which localized surface plasmon resonance (LSPR) is a very effective means. Theoretically, the enhancement effect of LSPR is strongly dependent on the relationship between the LSPR wavelength and material, but related research has not been reported until now due to the challenge of fabricating perovskite materials with an atom-level smooth surface. Herein, we successfully developed a simple polydimethylsiloxane (PDMS)-assisted slow evaporation route to fabricate plenty of supersmooth CsPbBr<small><sub>3</sub></small> microplates with a mean surface roughness of only 0.6 nm. Subsequently, gold nanospheres (Au NSs) were deposited on the surface of the perovskite microplates to examine the effect of the diameter of the gold nanospheres on the LSPR wavelength. Based on photoluminescence (PL), dark-field scattering spectroscopy and finite-difference-time-domain (FDTD) simulation results, the optimal Au NS diameter was found to be nearly equal to an LSPR wavelength of 60 nm, where the Au NSs and CsPbBr<small><sub>3</sub></small> microplates had the strongest coupling effect. In contrast with a pristine CsPbBr<small><sub>3</sub></small> microplate, the on/off ratio of the CsPbBr<small><sub>3</sub></small> microplate covered with Au NSs was observed to increase from 109 to 448 and responsivity could reach as high as 8430 mA W<small><sup>−1</sup></small>, which is comparable to many other excellent perovskite-based photodetectors. An ultrahigh plasmonic enhancement factor of about 1145% was suggested to be responsible for the excellent photoresponsive performance of the hybrid Au NS-CsPbBr<small><sub>3</sub></small> photodetector. Our research may shed new light on accelerating the development of visible-light detectors based on perovskite materials.</p>","PeriodicalId":84,"journal":{"name":"Journal of Materials Chemistry C","volume":" 39","pages":" 15955-15964"},"PeriodicalIF":5.1000,"publicationDate":"2024-08-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Chemistry C","FirstCategoryId":"1","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2024/tc/d4tc02690j","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

All-inorganic perovskites have a high absorption coefficient, long carrier diffusion length, large carrier mobility, tunable direct bandgap and good ambient stability and are therefore considered as an ideal candidate for the new generation of optoelectronic devices. Many methods have been used to improve their photoresponsive performances, among which localized surface plasmon resonance (LSPR) is a very effective means. Theoretically, the enhancement effect of LSPR is strongly dependent on the relationship between the LSPR wavelength and material, but related research has not been reported until now due to the challenge of fabricating perovskite materials with an atom-level smooth surface. Herein, we successfully developed a simple polydimethylsiloxane (PDMS)-assisted slow evaporation route to fabricate plenty of supersmooth CsPbBr3 microplates with a mean surface roughness of only 0.6 nm. Subsequently, gold nanospheres (Au NSs) were deposited on the surface of the perovskite microplates to examine the effect of the diameter of the gold nanospheres on the LSPR wavelength. Based on photoluminescence (PL), dark-field scattering spectroscopy and finite-difference-time-domain (FDTD) simulation results, the optimal Au NS diameter was found to be nearly equal to an LSPR wavelength of 60 nm, where the Au NSs and CsPbBr3 microplates had the strongest coupling effect. In contrast with a pristine CsPbBr3 microplate, the on/off ratio of the CsPbBr3 microplate covered with Au NSs was observed to increase from 109 to 448 and responsivity could reach as high as 8430 mA W−1, which is comparable to many other excellent perovskite-based photodetectors. An ultrahigh plasmonic enhancement factor of about 1145% was suggested to be responsible for the excellent photoresponsive performance of the hybrid Au NS-CsPbBr3 photodetector. Our research may shed new light on accelerating the development of visible-light detectors based on perovskite materials.

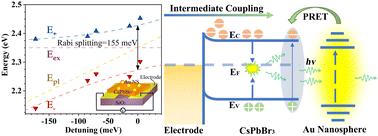

Abstract Image

超光滑 CsPbBr3 微板中的质子-激子协同作用带来的巨大光电探测增强效应†。
全无机过氧化物具有高吸收系数、长载流子扩散长度、大载流子迁移率、可调直接带隙和良好的环境稳定性,因此被认为是新一代光电器件的理想候选材料。人们采用了许多方法来提高它们的光致穿透性能,其中局部表面等离子体共振(LSPR)是一种非常有效的方法。理论上,局部表面等离子体共振的增强效果与局部表面等离子体共振波长和材料之间的关系密切相关,但由于制造具有原子级光滑表面的过氧化物材料是一项挑战,相关研究至今尚未见报道。在此,我们成功开发了一种简单的聚二甲基硅氧烷(PDMS)辅助缓慢蒸发路线,制备出大量平均表面粗糙度仅为 0.6 nm 的超光滑 CsPbBr3 微板。随后,在过氧化物微板表面沉积了金纳米球(Au NSs),以研究金纳米球直径对 LSPR 波长的影响。根据光致发光 (PL)、暗视野散射光谱和有限差分时域 (FDTD) 模拟结果,发现最佳 Au NS 直径几乎等于 60 nm 的 LSPR 波长,其中 Au NS 与 CsPbBr3 微板的耦合效应最强。与原始的 CsPbBr3 微板相比,观察到覆盖了 Au NSs 的 CsPbBr3 微板的开/关比率从 109 增加到 448,响应率高达 8430 mA W-1,可与许多其他优秀的基于包晶石的光电探测器相媲美。据认为,约 1145% 的超高等离子体增强因子是混合金 NS-CsPbBr3 光电探测器具有优异光致穿透性能的原因。我们的研究可能会为加速开发基于包晶材料的可见光探测器带来新的启示。
