翼管形态和地形的变异分析及其对神经外科的影响:骨测量学研究。

Asian Journal of Neurosurgery Pub Date : 2023-08-31 eCollection Date: 2023-09-01 DOI:10.1055/s-0043-1772759
Navita Aggarwal, Noopinder Kaur, Apurba Patra, Monika Gupta
{"title":"翼管形态和地形的变异分析及其对神经外科的影响:骨测量学研究。","authors":"Navita Aggarwal, Noopinder Kaur, Apurba Patra, Monika Gupta","doi":"10.1055/s-0043-1772759","DOIUrl":null,"url":null,"abstract":"<p><p><b>Objective</b>  Pterion is an \"H\" shaped formation of sutures located in the temporal fossa of the skull. It is an important anatomical landmark and a craniometric point. The thinness of the skull and its inner relation with the middle meningeal artery make this anatomical landmark clinically significant. Variations in the pterion are imperative, especially for neurosurgeons in order to have the most suitable craniometric point to be minimally invasive. <b>Materials and Methods</b>  One hundred pterions were studied to report the variations in the type and location of the pterion. Murphy's classification was used to classify the pterion into four types on the basis of bone articulation-sphenoparietal, frontotemporal, stellate, and epipteric. <b>Results</b>  All four types of pterions were observed, sphenoparietal being the most common. No significant gender difference was observed in terms of type and laterality of various pterions. The mean distance between the center of pterion to the superolateral point of zygomaticotemporal (PZT) suture and the anterolateral point of the frontozygomatic (PFZ) suture were 3.91 ± 3.79 cm and 3.68 ± 3.79 mm, respectively. Correlation analysis showed a strong positive relation between PZT and PFZ sutures. <b>Conclusion</b>  Accurate data on the morphology and morphometry of bony anatomical points are crucial, while performing intracranial surgery using them as recognizable landmarks. The morphometric parameters may help in determining the soundness of the pterion as an identifiable landmark for performing interventions like burr hole and other neurosurgical procedures in this area.</p>","PeriodicalId":8521,"journal":{"name":"Asian Journal of Neurosurgery","volume":null,"pages":null},"PeriodicalIF":0.0000,"publicationDate":"2023-08-31","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC10749850/pdf/","citationCount":"0","resultStr":"{\"title\":\"Analysis of the Variations in the Morphology, Topography of the Pterion, and Their Implications in Neurosurgery: An Osteometric Study.\",\"authors\":\"Navita Aggarwal, Noopinder Kaur, Apurba Patra, Monika Gupta\",\"doi\":\"10.1055/s-0043-1772759\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p><b>Objective</b>  Pterion is an \\\"H\\\" shaped formation of sutures located in the temporal fossa of the skull. It is an important anatomical landmark and a craniometric point. The thinness of the skull and its inner relation with the middle meningeal artery make this anatomical landmark clinically significant. Variations in the pterion are imperative, especially for neurosurgeons in order to have the most suitable craniometric point to be minimally invasive. <b>Materials and Methods</b>  One hundred pterions were studied to report the variations in the type and location of the pterion. Murphy's classification was used to classify the pterion into four types on the basis of bone articulation-sphenoparietal, frontotemporal, stellate, and epipteric. <b>Results</b>  All four types of pterions were observed, sphenoparietal being the most common. No significant gender difference was observed in terms of type and laterality of various pterions. The mean distance between the center of pterion to the superolateral point of zygomaticotemporal (PZT) suture and the anterolateral point of the frontozygomatic (PFZ) suture were 3.91 ± 3.79 cm and 3.68 ± 3.79 mm, respectively. Correlation analysis showed a strong positive relation between PZT and PFZ sutures. <b>Conclusion</b>  Accurate data on the morphology and morphometry of bony anatomical points are crucial, while performing intracranial surgery using them as recognizable landmarks. The morphometric parameters may help in determining the soundness of the pterion as an identifiable landmark for performing interventions like burr hole and other neurosurgical procedures in this area.</p>\",\"PeriodicalId\":8521,\"journal\":{\"name\":\"Asian Journal of Neurosurgery\",\"volume\":null,\"pages\":null},\"PeriodicalIF\":0.0000,\"publicationDate\":\"2023-08-31\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC10749850/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Asian Journal of Neurosurgery\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://doi.org/10.1055/s-0043-1772759\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2023/9/1 0:00:00\",\"PubModel\":\"eCollection\",\"JCR\":\"\",\"JCRName\":\"\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Asian Journal of Neurosurgery","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.1055/s-0043-1772759","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2023/9/1 0:00:00","PubModel":"eCollection","JCR":"","JCRName":"","Score":null,"Total":0}
引用次数: 0

摘要

Objective Pterion 是位于颅骨颞窝内的 "H "形缝合线。它是一个重要的解剖标志和颅骨测量点。颅骨较薄,且与脑膜中动脉有内在联系,因此这一解剖标志具有重要的临床意义。翼管的变化是必要的,特别是对于神经外科医生来说,以便获得最合适的颅骨测量点,从而实现微创。材料和方法 研究了 100 个翼手架,以报告翼手架类型和位置的变化。采用墨菲分类法,根据骨衔接将翼状突分为四种类型--顶骨型、额颞型、星状突型和翼上突型。结果 所有四种类型的蝶骨均可观察到,其中以顶蝶骨最为常见。在各种蝶窦的类型和侧位方面没有观察到明显的性别差异。蝶窦中心到颧颞缝(PZT)上外侧点和前颧缝(PFZ)前外侧点的平均距离分别为(3.91 ± 3.79)厘米和(3.68 ± 3.79)毫米。相关分析表明,PZT 和 PFZ 缝合线之间存在很强的正相关关系。结论 在使用骨性解剖点作为可识别的地标进行颅内手术时,准确的骨性解剖点形态和形态计量数据至关重要。形态计量参数有助于确定翼管作为可识别地标的合理性,以便在这一区域进行毛刺孔等干预手术和其他神经外科手术。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
Analysis of the Variations in the Morphology, Topography of the Pterion, and Their Implications in Neurosurgery: An Osteometric Study.

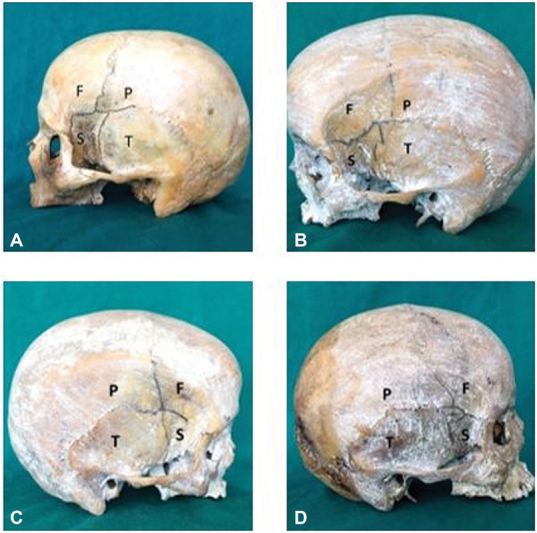

Objective  Pterion is an "H" shaped formation of sutures located in the temporal fossa of the skull. It is an important anatomical landmark and a craniometric point. The thinness of the skull and its inner relation with the middle meningeal artery make this anatomical landmark clinically significant. Variations in the pterion are imperative, especially for neurosurgeons in order to have the most suitable craniometric point to be minimally invasive. Materials and Methods  One hundred pterions were studied to report the variations in the type and location of the pterion. Murphy's classification was used to classify the pterion into four types on the basis of bone articulation-sphenoparietal, frontotemporal, stellate, and epipteric. Results  All four types of pterions were observed, sphenoparietal being the most common. No significant gender difference was observed in terms of type and laterality of various pterions. The mean distance between the center of pterion to the superolateral point of zygomaticotemporal (PZT) suture and the anterolateral point of the frontozygomatic (PFZ) suture were 3.91 ± 3.79 cm and 3.68 ± 3.79 mm, respectively. Correlation analysis showed a strong positive relation between PZT and PFZ sutures. Conclusion  Accurate data on the morphology and morphometry of bony anatomical points are crucial, while performing intracranial surgery using them as recognizable landmarks. The morphometric parameters may help in determining the soundness of the pterion as an identifiable landmark for performing interventions like burr hole and other neurosurgical procedures in this area.
