大气相关样品中功能化有机化合物的非目标串联高分辨率质谱分析

IF 8.8 2区 环境科学与生态学 Q1 ENGINEERING, ENVIRONMENTAL
Yibei Wan, Chong Xing, Xinyu Wang, Zhaomin Yang, Xiangpeng Huang, Xinlei Ge, Lin Du, Qiongqiong Wang and Huan Yu*,
{"title":"大气相关样品中功能化有机化合物的非目标串联高分辨率质谱分析","authors":"Yibei Wan,&nbsp;Chong Xing,&nbsp;Xinyu Wang,&nbsp;Zhaomin Yang,&nbsp;Xiangpeng Huang,&nbsp;Xinlei Ge,&nbsp;Lin Du,&nbsp;Qiongqiong Wang and Huan Yu*,&nbsp;","doi":"10.1021/acs.estlett.2c00788","DOIUrl":null,"url":null,"abstract":"<p >We present a data analysis workflow for nontarget tandem high-resolution mass spectrometry (MS), with the aim being full speciation of functionalized organic compounds in complex atmospheric samples without unambiguous molecular structure assignment. The workflow was demonstrated for four types of samples, including primary-emission aerosols, secondary organic aerosols, ambient aerosols, and rainwater, but could be applicable to other environmental samples. With a single mass spectrometry run, the combined MS<sup>1</sup> and MS<sup>2</sup> analysis provided molecular formula, functional group, and aromaticity information for 68.1–88.8% of deprotonated molecules and 58.6–84.7% of protonated molecules. We determined relative abundances of 22 and 21 compound categories for deprotonated and protonated molecules, respectively, on the basis of the assignment of a variety of oxygen-, nitrogen-, and sulfur-containing functional groups. Molar concentrations of compound categories were further semiquantified with surrogate standards in electrospray ionization negative mode, ranging from 10<sup>–4</sup> to 1 nmol (μg of source aerosol mass)<sup>−1</sup>, from 3 × 10<sup>–3</sup> to 2 nmol m<sup>–3</sup> in the atmosphere, and from 2 × 10<sup>–3</sup> to 1 nmol (mL of rainwater)<sup>−1</sup>. The assignment and quantification of functional groups provided new chemical fingerprints of organic compounds to trace their sources, formation, and aging in the atmosphere and also allowed the use of group contribution methods to study the physicochemical properties of organic aerosols.</p>","PeriodicalId":37,"journal":{"name":"Environmental Science & Technology Letters Environ.","volume":"9 12","pages":"1022–1029"},"PeriodicalIF":8.8000,"publicationDate":"2022-11-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"1","resultStr":"{\"title\":\"Nontarget Tandem High-Resolution Mass Spectrometry Analysis of Functionalized Organic Compounds in Atmospherically Relevant Samples\",\"authors\":\"Yibei Wan,&nbsp;Chong Xing,&nbsp;Xinyu Wang,&nbsp;Zhaomin Yang,&nbsp;Xiangpeng Huang,&nbsp;Xinlei Ge,&nbsp;Lin Du,&nbsp;Qiongqiong Wang and Huan Yu*,&nbsp;\",\"doi\":\"10.1021/acs.estlett.2c00788\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >We present a data analysis workflow for nontarget tandem high-resolution mass spectrometry (MS), with the aim being full speciation of functionalized organic compounds in complex atmospheric samples without unambiguous molecular structure assignment. The workflow was demonstrated for four types of samples, including primary-emission aerosols, secondary organic aerosols, ambient aerosols, and rainwater, but could be applicable to other environmental samples. With a single mass spectrometry run, the combined MS<sup>1</sup> and MS<sup>2</sup> analysis provided molecular formula, functional group, and aromaticity information for 68.1–88.8% of deprotonated molecules and 58.6–84.7% of protonated molecules. We determined relative abundances of 22 and 21 compound categories for deprotonated and protonated molecules, respectively, on the basis of the assignment of a variety of oxygen-, nitrogen-, and sulfur-containing functional groups. Molar concentrations of compound categories were further semiquantified with surrogate standards in electrospray ionization negative mode, ranging from 10<sup>–4</sup> to 1 nmol (μg of source aerosol mass)<sup>−1</sup>, from 3 × 10<sup>–3</sup> to 2 nmol m<sup>–3</sup> in the atmosphere, and from 2 × 10<sup>–3</sup> to 1 nmol (mL of rainwater)<sup>−1</sup>. The assignment and quantification of functional groups provided new chemical fingerprints of organic compounds to trace their sources, formation, and aging in the atmosphere and also allowed the use of group contribution methods to study the physicochemical properties of organic aerosols.</p>\",\"PeriodicalId\":37,\"journal\":{\"name\":\"Environmental Science & Technology Letters Environ.\",\"volume\":\"9 12\",\"pages\":\"1022–1029\"},\"PeriodicalIF\":8.8000,\"publicationDate\":\"2022-11-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"1\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Environmental Science & Technology Letters Environ.\",\"FirstCategoryId\":\"1\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.estlett.2c00788\",\"RegionNum\":2,\"RegionCategory\":\"环境科学与生态学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ENGINEERING, ENVIRONMENTAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Environmental Science & Technology Letters Environ.","FirstCategoryId":"1","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.estlett.2c00788","RegionNum":2,"RegionCategory":"环境科学与生态学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, ENVIRONMENTAL","Score":null,"Total":0}
引用次数: 1

摘要

我们提出了一种非目标串联高分辨率质谱(MS)的数据分析工作流程,目的是在复杂的大气样品中完整地形成功能化有机化合物,而不需要明确的分子结构分配。该工作流程适用于四种类型的样品,包括一次排放气溶胶、二次有机气溶胶、环境气溶胶和雨水,但也适用于其他环境样品。通过单次质谱分析,MS1和MS2联合分析可为68.1-88.8%的去质子化分子和58.6-84.7%的质子化分子提供分子式、官能团和芳香性信息。根据各种含氧、含氮和含硫官能团的分配,我们分别确定了去质子化和质子化分子的22和21种化合物类别的相对丰度。在电喷雾电离负模式下,用替代标准进一步半量化化合物类别的摩尔浓度,范围为10-4至1 nmol (μg /源气溶胶质量)−1,大气中3 × 10-3至2 nmol - m-3,以及2 × 10-3至1 nmol (mL /雨水)−1。官能团的分配和定量为有机化合物的来源、形成和老化提供了新的化学指纹图谱,也允许使用基团贡献方法来研究有机气溶胶的物理化学性质。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Nontarget Tandem High-Resolution Mass Spectrometry Analysis of Functionalized Organic Compounds in Atmospherically Relevant Samples

Nontarget Tandem High-Resolution Mass Spectrometry Analysis of Functionalized Organic Compounds in Atmospherically Relevant Samples

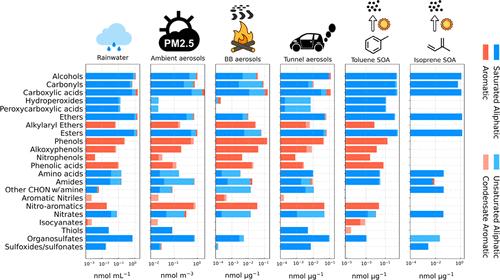

We present a data analysis workflow for nontarget tandem high-resolution mass spectrometry (MS), with the aim being full speciation of functionalized organic compounds in complex atmospheric samples without unambiguous molecular structure assignment. The workflow was demonstrated for four types of samples, including primary-emission aerosols, secondary organic aerosols, ambient aerosols, and rainwater, but could be applicable to other environmental samples. With a single mass spectrometry run, the combined MS1 and MS2 analysis provided molecular formula, functional group, and aromaticity information for 68.1–88.8% of deprotonated molecules and 58.6–84.7% of protonated molecules. We determined relative abundances of 22 and 21 compound categories for deprotonated and protonated molecules, respectively, on the basis of the assignment of a variety of oxygen-, nitrogen-, and sulfur-containing functional groups. Molar concentrations of compound categories were further semiquantified with surrogate standards in electrospray ionization negative mode, ranging from 10–4 to 1 nmol (μg of source aerosol mass)−1, from 3 × 10–3 to 2 nmol m–3 in the atmosphere, and from 2 × 10–3 to 1 nmol (mL of rainwater)−1. The assignment and quantification of functional groups provided new chemical fingerprints of organic compounds to trace their sources, formation, and aging in the atmosphere and also allowed the use of group contribution methods to study the physicochemical properties of organic aerosols.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Environmental Science & Technology Letters Environ.
Environmental Science & Technology Letters Environ. ENGINEERING, ENVIRONMENTALENVIRONMENTAL SC-ENVIRONMENTAL SCIENCES
CiteScore
17.90
自引率
3.70%
发文量
163
期刊介绍: Environmental Science & Technology Letters serves as an international forum for brief communications on experimental or theoretical results of exceptional timeliness in all aspects of environmental science, both pure and applied. Published as soon as accepted, these communications are summarized in monthly issues. Additionally, the journal features short reviews on emerging topics in environmental science and technology.
×
