Optimized structure design of asymmetrical Mg alloy cerebrovascular stent with high flexibility

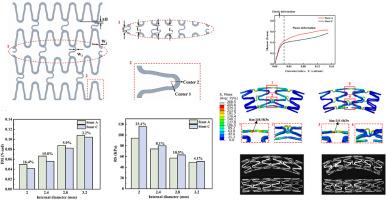

In the treatment of cerebral artery stenosis via stent intervention, it is required that the stent can pass through the tortuous blood vessel with high curvature to reach the lesion position smoothly, and the damage to the artery should be as small as possible. This determines that the coronary artery stent cannot be directly applied to the diseased cerebrovascular, but a specialized cerebrovascular stent with high flexibility should be specifically designed. Differing from the commonly employed symmetrical structure, in this work, an asymmetrical and unequal-heigh stent structure was designed, which helps to improve the flexibility of the stent and reduces the self-contact phenomenon that occurs after the ordinary stent is bent. To balance the comprehensive properties of the stent, multi-objective optimization on the stent structure was carried out. The optimized stent structure shows better radial strength and flexibility and does not significantly affect equivalent plastic strain after stent expansion and volume average stress. In addition, this work provides a universal workflow for the customized stent structure.
