Layer-by-layer growth of graphene oxide multilayers using robust interlayer linking chemistry. 1. Zr-bisphosphates

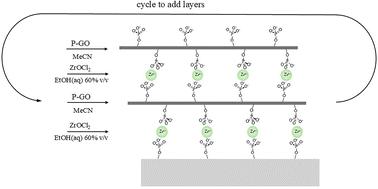

Graphene oxide (GO) holds substantial interest because of its utility in applications ranging from chemical sensing to catalysis and energy storage. We report on the layer-by-layer formation of graphene oxide phosphate (P-GO) multilayers on silica and oxidized silicon supports, with the layers connected via Zr-bisphosphate (ZP) linking chemistry. Layers were grown either directly by ZP linkages between P-GO sheets, or with the use of 1,4-phenylene bisphosphate (BP1) or [1,1′-biphenyl]4,4′-diyl bisphosphate (BP2). The layers have been characterized using optical null ellipsometry, X-ray photoelectron spectroscopy (XPS), UV-visible absorption spectroscopy and scanning electron microscopy (SEM). There is a linear dependence of assembly thickness on the number of layers deposited and the integrated area of the optical absorbance bands also increases linearly with number of layers deposited. XPS data provides information on interlayer linking stoichiometry. SEM images provide insight into the morphology of the adlayers, suggesting the structure and length of the interlayer linking moieties used in the multilayer assembly play a significant role in the organization of the resulting system.
