Assessment of critical flaw sizes and crack driving forces during additive manufacturing of metallic materials

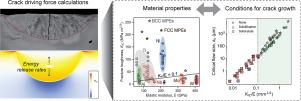

Additive manufacturing (AM) of complex engineering components is often plagued by a high susceptibility to cracking, particularly in high-strength metallic materials. While alloy design efforts have made progress in mitigating solidification defects, there remains a need for mechanistic guidelines to predict susceptibility to solid-state cracking. To address this gap, driving forces for the growth of melt pool cracks are calculated across a wide range of alloys using an efficient computational framework. Calculations are coupled with rapid single track laser experiments to elucidate trends in cracking from laser melting. The analyses conducted here highlight the important role of material properties in susceptibility to cracking, notably fracture toughness and elastic modulus. An important finding is that residual stresses that are limited in magnitude to the yield stress of the material are likely insufficient to drive cracking during cooling. The implications of these results are discussed in the context of alloy design for AM and residual stress accumulation during AM.
