co5mn10ox、LaCoO3或Ce0.6Zr0.4O2改性花状al2o3负载Pd催化剂提高甲烷燃烧性能和稳定性的新策略

IF 3.9 3区 工程技术 Q2 ENGINEERING, CHEMICAL
Wei Fan, Mengwei Hua, Jinxiong Tao, Linke Wu, Peiqi Chu, Zhiquan Hou, Lin Jing, Yuxi Liu, Xuehong Zi, Jiguang Deng, Hongxing Dai
{"title":"co5mn10ox、LaCoO3或Ce0.6Zr0.4O2改性花状al2o3负载Pd催化剂提高甲烷燃烧性能和稳定性的新策略","authors":"Wei Fan, Mengwei Hua, Jinxiong Tao, Linke Wu, Peiqi Chu, Zhiquan Hou, Lin Jing, Yuxi Liu, Xuehong Zi, Jiguang Deng, Hongxing Dai","doi":"10.1021/acs.iecr.5c03047","DOIUrl":null,"url":null,"abstract":"The development of CH<sub>4</sub> combustion catalysts with good low-temperature activities and stability still faces a great challenge. In this work, flower-like alumina (NF-Al<sub>2</sub>O<sub>3</sub>), M/NF-Al<sub>2</sub>O<sub>3</sub> (M = Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>, LaCoO<sub>3</sub>, and Ce<sub>0.6</sub>Zr<sub>0.4</sub>O<sub>2</sub> (CZO)), and Pd/M/NF-Al<sub>2</sub>O<sub>3</sub> (Pd loading = 2.00, 2.07, and 1.93 wt %) catalysts were fabricated using the hydrothermal, incipient wetness impregnation, and NaBH<sub>4</sub> reduction methods, respectively. The Pd/M/NF-Al<sub>2</sub>O<sub>3</sub> catalysts showed good catalytic activity for methane combustion, among which Pd/Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>/NF-Al<sub>2</sub>O<sub>3</sub> performed the best: The temperatures (<i>T</i><sub>50%</sub> and <i>T</i><sub>90%</sub>) at CH<sub>4</sub> conversions = 50 and 90% were 285 and 323 °C at a gas hourly space velocity of ca. 20,000 mL/(g h), respectively; the methane reaction rate at 280 °C was 50.1 μmol/(g<sub>Pd</sub> s), and the turnover frequency (TOF<sub>Pd</sub>) at 280 °C was 0.018 s<sup>–1</sup>. In addition, the Pd/Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>/NF-Al<sub>2</sub>O<sub>3</sub> sample exhibited good water and sulfur dioxide resistance. The enhanced methane combustion performance of Pd/Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>/NF-Al<sub>2</sub>O<sub>3</sub> was mainly attributed to two factors: (i) the unique three-dimensional flower-like layered structure of NF-Al<sub>2</sub>O<sub>3</sub> effectively promoted dispersion of the Pd species; and (ii) the introduction of Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub> stabilized the active Pd<sup>2+</sup> species and provided the more reactive oxygen species. Methane combustion over Pd/Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>/NF-Al<sub>2</sub>O<sub>3</sub> might take place according to the pathway of gaseous methane → adsorbed methane → formate and carbonate → CO<sub>2</sub> and H<sub>2</sub>O. This work provides valuable insight into the modification of the Pd/Al<sub>2</sub>O<sub>3</sub> catalyst and a new idea for the design of high-performance methane combustion catalysts in the future.","PeriodicalId":39,"journal":{"name":"Industrial & Engineering Chemistry Research","volume":"51 1","pages":""},"PeriodicalIF":3.9000,"publicationDate":"2025-10-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A Novel Strategy To Enhance Methane Combustion Performance and Stability of Flower-Like Al2O3–Supported Pd Catalysts by Modification with Co5Mn1Ox, LaCoO3, or Ce0.6Zr0.4O2\",\"authors\":\"Wei Fan, Mengwei Hua, Jinxiong Tao, Linke Wu, Peiqi Chu, Zhiquan Hou, Lin Jing, Yuxi Liu, Xuehong Zi, Jiguang Deng, Hongxing Dai\",\"doi\":\"10.1021/acs.iecr.5c03047\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"The development of CH<sub>4</sub> combustion catalysts with good low-temperature activities and stability still faces a great challenge. In this work, flower-like alumina (NF-Al<sub>2</sub>O<sub>3</sub>), M/NF-Al<sub>2</sub>O<sub>3</sub> (M = Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>, LaCoO<sub>3</sub>, and Ce<sub>0.6</sub>Zr<sub>0.4</sub>O<sub>2</sub> (CZO)), and Pd/M/NF-Al<sub>2</sub>O<sub>3</sub> (Pd loading = 2.00, 2.07, and 1.93 wt %) catalysts were fabricated using the hydrothermal, incipient wetness impregnation, and NaBH<sub>4</sub> reduction methods, respectively. The Pd/M/NF-Al<sub>2</sub>O<sub>3</sub> catalysts showed good catalytic activity for methane combustion, among which Pd/Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>/NF-Al<sub>2</sub>O<sub>3</sub> performed the best: The temperatures (<i>T</i><sub>50%</sub> and <i>T</i><sub>90%</sub>) at CH<sub>4</sub> conversions = 50 and 90% were 285 and 323 °C at a gas hourly space velocity of ca. 20,000 mL/(g h), respectively; the methane reaction rate at 280 °C was 50.1 μmol/(g<sub>Pd</sub> s), and the turnover frequency (TOF<sub>Pd</sub>) at 280 °C was 0.018 s<sup>–1</sup>. In addition, the Pd/Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>/NF-Al<sub>2</sub>O<sub>3</sub> sample exhibited good water and sulfur dioxide resistance. The enhanced methane combustion performance of Pd/Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>/NF-Al<sub>2</sub>O<sub>3</sub> was mainly attributed to two factors: (i) the unique three-dimensional flower-like layered structure of NF-Al<sub>2</sub>O<sub>3</sub> effectively promoted dispersion of the Pd species; and (ii) the introduction of Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub> stabilized the active Pd<sup>2+</sup> species and provided the more reactive oxygen species. Methane combustion over Pd/Co<sub>5</sub>Mn<sub>1</sub>O<sub><i>x</i></sub>/NF-Al<sub>2</sub>O<sub>3</sub> might take place according to the pathway of gaseous methane → adsorbed methane → formate and carbonate → CO<sub>2</sub> and H<sub>2</sub>O. This work provides valuable insight into the modification of the Pd/Al<sub>2</sub>O<sub>3</sub> catalyst and a new idea for the design of high-performance methane combustion catalysts in the future.\",\"PeriodicalId\":39,\"journal\":{\"name\":\"Industrial & Engineering Chemistry Research\",\"volume\":\"51 1\",\"pages\":\"\"},\"PeriodicalIF\":3.9000,\"publicationDate\":\"2025-10-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Industrial & Engineering Chemistry Research\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://doi.org/10.1021/acs.iecr.5c03047\",\"RegionNum\":3,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"ENGINEERING, CHEMICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Industrial & Engineering Chemistry Research","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1021/acs.iecr.5c03047","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}
引用次数: 0

摘要

开发具有良好低温活性和稳定性的CH4燃烧催化剂仍然面临着很大的挑战。本研究分别采用水热法、初湿浸渍法和NaBH4还原法制备了花状氧化铝(NF-Al2O3)、M/NF-Al2O3 (M = co5mn10ox、LaCoO3和Ce0.6Zr0.4O2 (CZO))和Pd/M/NF-Al2O3 (Pd负载= 2.00、2.07和1.93 wt %)催化剂。Pd/M/NF-Al2O3催化剂对甲烷燃烧表现出良好的催化活性,其中Pd/ co5mn10ox /NF-Al2O3表现最好:在CH4转化率为50%和90%时,温度(T50%和T90%)分别为285℃和323℃,气时空速约为20,000 mL/(g h);280℃时甲烷反应速率为50.1 μmol/(gPd s), 280℃时周转频率(TOFPd)为0.018 s - 1。此外,Pd/ co5mn10ox /NF-Al2O3样品具有良好的耐水性和耐二氧化硫性能。Pd/ co5mn10ox /NF-Al2O3的甲烷燃烧性能增强主要归因于两个因素:(1)NF-Al2O3独特的三维花状层状结构有效促进了Pd的分散;(ii) co5mn10ox的引入稳定了活性的Pd2+,并提供了更多的活性氧。在Pd/ co5mn10ox /NF-Al2O3上,甲烷燃烧的途径可能是气态甲烷→吸附甲烷→甲酸酯和碳酸盐→CO2和H2O。这项工作为Pd/Al2O3催化剂的改性提供了有价值的见解,并为未来高性能甲烷燃烧催化剂的设计提供了新的思路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

A Novel Strategy To Enhance Methane Combustion Performance and Stability of Flower-Like Al2O3–Supported Pd Catalysts by Modification with Co5Mn1Ox, LaCoO3, or Ce0.6Zr0.4O2

A Novel Strategy To Enhance Methane Combustion Performance and Stability of Flower-Like Al2O3–Supported Pd Catalysts by Modification with Co5Mn1Ox, LaCoO3, or Ce0.6Zr0.4O2

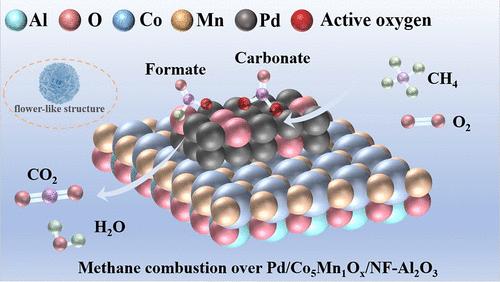

The development of CH4 combustion catalysts with good low-temperature activities and stability still faces a great challenge. In this work, flower-like alumina (NF-Al2O3), M/NF-Al2O3 (M = Co5Mn1Ox, LaCoO3, and Ce0.6Zr0.4O2 (CZO)), and Pd/M/NF-Al2O3 (Pd loading = 2.00, 2.07, and 1.93 wt %) catalysts were fabricated using the hydrothermal, incipient wetness impregnation, and NaBH4 reduction methods, respectively. The Pd/M/NF-Al2O3 catalysts showed good catalytic activity for methane combustion, among which Pd/Co5Mn1Ox/NF-Al2O3 performed the best: The temperatures (T50% and T90%) at CH4 conversions = 50 and 90% were 285 and 323 °C at a gas hourly space velocity of ca. 20,000 mL/(g h), respectively; the methane reaction rate at 280 °C was 50.1 μmol/(gPd s), and the turnover frequency (TOFPd) at 280 °C was 0.018 s–1. In addition, the Pd/Co5Mn1Ox/NF-Al2O3 sample exhibited good water and sulfur dioxide resistance. The enhanced methane combustion performance of Pd/Co5Mn1Ox/NF-Al2O3 was mainly attributed to two factors: (i) the unique three-dimensional flower-like layered structure of NF-Al2O3 effectively promoted dispersion of the Pd species; and (ii) the introduction of Co5Mn1Ox stabilized the active Pd2+ species and provided the more reactive oxygen species. Methane combustion over Pd/Co5Mn1Ox/NF-Al2O3 might take place according to the pathway of gaseous methane → adsorbed methane → formate and carbonate → CO2 and H2O. This work provides valuable insight into the modification of the Pd/Al2O3 catalyst and a new idea for the design of high-performance methane combustion catalysts in the future.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Industrial & Engineering Chemistry Research
Industrial & Engineering Chemistry Research 工程技术-工程:化工
CiteScore
7.40
自引率
7.10%
发文量
1467
审稿时长
2.8 months
期刊介绍: ndustrial & Engineering Chemistry, with variations in title and format, has been published since 1909 by the American Chemical Society. Industrial & Engineering Chemistry Research is a weekly publication that reports industrial and academic research in the broad fields of applied chemistry and chemical engineering with special focus on fundamentals, processes, and products.
×
