高效双表面钙钛矿/硅串联太阳能电池中吡啶酰胺的异构体工程研究

IF 17.1 1区 材料科学 Q1 CHEMISTRY, PHYSICAL
Jianxun Li, Yihan Ye, Bita Farhadi, Kai Wang, Qingyun Wei, Dan Yang, Han Lu, Yafei Qiao, Siyi Jiang, Jing Ma, Shengzhong Liu
{"title":"高效双表面钙钛矿/硅串联太阳能电池中吡啶酰胺的异构体工程研究","authors":"Jianxun Li, Yihan Ye, Bita Farhadi, Kai Wang, Qingyun Wei, Dan Yang, Han Lu, Yafei Qiao, Siyi Jiang, Jing Ma, Shengzhong Liu","doi":"10.1016/j.nanoen.2025.111520","DOIUrl":null,"url":null,"abstract":"Bifacial perovskite/silicon tandem solar cells (TSCs) exhibit significant performance advantages over their monofacial counterparts under real-world operating conditions, yet their progress is contingent on the development of high-quality wide-bandgap perovskites. Herein, we integrate the benefits of Lewis bases and oversized cations by designing a series of structurally tailored pyridine-functionalized amidinium additives (2PyFA⁺, 3PyFA⁺, and 4PyFA⁺) to systematically explore the impact of ionic configuration on perovskite film properties and device performance. Among them, the meta-configured 3PyFA⁺ demonstrates a unique bidentate anchoring capability: it simultaneously coordinates with Pb<sup>2+</sup> and forms hydrogen bonds with I⁻, enabled by its optimal spatial geometry and inductive modulation. This dual-site interaction not only promotes oriented perovskite crystal growth and relieves residual lattice strain, but also induces the formation of low-dimensional perovskites that reduce residual PbI<sub>2</sub> and passivate defects. As a result, inverted single-junction 1.6<!-- --> <!-- -->eV wide-bandgap perovskite solar cells achieved a remarkable power conversion efficiency of 23.53%, alongside excellent photo- and thermal stability. Notably, monolithic bifacial perovskite/silicon TSCs incorporating 3PyFA⁺ attain a record-high power generation density of 32.51<!-- --> <!-- -->mW<!-- --> <!-- -->cm<sup>-2</sup> under typical bifacial illumination - the highest reported value to date for bifacial perovskite/silicon TSCs. This study establishes a new paradigm for additive design via structural isomer engineering and offers practical guidance for the development of efficient and durable bifacial tandem photovoltaics.","PeriodicalId":394,"journal":{"name":"Nano Energy","volume":"19 1","pages":""},"PeriodicalIF":17.1000,"publicationDate":"2025-10-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Isomer-Engineering of Pyridine Amidinium for Efficient Bifacial Perovskite/Silicon Tandem Solar Cells\",\"authors\":\"Jianxun Li, Yihan Ye, Bita Farhadi, Kai Wang, Qingyun Wei, Dan Yang, Han Lu, Yafei Qiao, Siyi Jiang, Jing Ma, Shengzhong Liu\",\"doi\":\"10.1016/j.nanoen.2025.111520\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Bifacial perovskite/silicon tandem solar cells (TSCs) exhibit significant performance advantages over their monofacial counterparts under real-world operating conditions, yet their progress is contingent on the development of high-quality wide-bandgap perovskites. Herein, we integrate the benefits of Lewis bases and oversized cations by designing a series of structurally tailored pyridine-functionalized amidinium additives (2PyFA⁺, 3PyFA⁺, and 4PyFA⁺) to systematically explore the impact of ionic configuration on perovskite film properties and device performance. Among them, the meta-configured 3PyFA⁺ demonstrates a unique bidentate anchoring capability: it simultaneously coordinates with Pb<sup>2+</sup> and forms hydrogen bonds with I⁻, enabled by its optimal spatial geometry and inductive modulation. This dual-site interaction not only promotes oriented perovskite crystal growth and relieves residual lattice strain, but also induces the formation of low-dimensional perovskites that reduce residual PbI<sub>2</sub> and passivate defects. As a result, inverted single-junction 1.6<!-- --> <!-- -->eV wide-bandgap perovskite solar cells achieved a remarkable power conversion efficiency of 23.53%, alongside excellent photo- and thermal stability. Notably, monolithic bifacial perovskite/silicon TSCs incorporating 3PyFA⁺ attain a record-high power generation density of 32.51<!-- --> <!-- -->mW<!-- --> <!-- -->cm<sup>-2</sup> under typical bifacial illumination - the highest reported value to date for bifacial perovskite/silicon TSCs. This study establishes a new paradigm for additive design via structural isomer engineering and offers practical guidance for the development of efficient and durable bifacial tandem photovoltaics.\",\"PeriodicalId\":394,\"journal\":{\"name\":\"Nano Energy\",\"volume\":\"19 1\",\"pages\":\"\"},\"PeriodicalIF\":17.1000,\"publicationDate\":\"2025-10-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Nano Energy\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1016/j.nanoen.2025.111520\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nano Energy","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1016/j.nanoen.2025.111520","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

在实际操作条件下,双面钙钛矿/硅串联太阳能电池(tsc)比单面太阳能电池表现出显著的性能优势,但其进展取决于高质量宽带隙钙钛矿的发展。在这里,我们通过设计一系列结构定制的吡啶功能化酰胺类添加剂(2PyFA⁺、3PyFA⁺和4PyFA⁺)来整合Lewis碱和超大阳离子的优点,系统地探索离子构型对钙钛矿薄膜性能和器件性能的影响。其中,元构型3PyFA⁺表现出独特的双牙锚定能力:它与Pb2+同时配位,并与I⁻形成氢键,这是由其最佳的空间几何形状和感应调制实现的。这种双位点相互作用不仅促进了取向钙钛矿晶体的生长,减轻了残余的晶格应变,而且还诱导了低维钙钛矿的形成,减少了残余的PbI2和钝化缺陷。结果表明,倒置单结1.6 eV宽禁带钙钛矿太阳能电池的功率转换效率达到了23.53%,并且具有优异的光稳定性和热稳定性。值得注意的是,在典型的双面照明下,采用3PyFA⁺的单片双面钙钛矿/硅tsc的发电密度达到了创纪录的32.51 mW cm-2,这是迄今为止报道的双面钙钛矿/硅tsc的最高值。本研究通过结构异构体工程为增材设计建立了新的范式,为开发高效、耐用的双面串联光伏材料提供了实践指导。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Isomer-Engineering of Pyridine Amidinium for Efficient Bifacial Perovskite/Silicon Tandem Solar Cells

Isomer-Engineering of Pyridine Amidinium for Efficient Bifacial Perovskite/Silicon Tandem Solar Cells

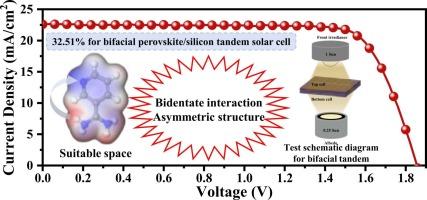

Bifacial perovskite/silicon tandem solar cells (TSCs) exhibit significant performance advantages over their monofacial counterparts under real-world operating conditions, yet their progress is contingent on the development of high-quality wide-bandgap perovskites. Herein, we integrate the benefits of Lewis bases and oversized cations by designing a series of structurally tailored pyridine-functionalized amidinium additives (2PyFA⁺, 3PyFA⁺, and 4PyFA⁺) to systematically explore the impact of ionic configuration on perovskite film properties and device performance. Among them, the meta-configured 3PyFA⁺ demonstrates a unique bidentate anchoring capability: it simultaneously coordinates with Pb2+ and forms hydrogen bonds with I⁻, enabled by its optimal spatial geometry and inductive modulation. This dual-site interaction not only promotes oriented perovskite crystal growth and relieves residual lattice strain, but also induces the formation of low-dimensional perovskites that reduce residual PbI2 and passivate defects. As a result, inverted single-junction 1.6 eV wide-bandgap perovskite solar cells achieved a remarkable power conversion efficiency of 23.53%, alongside excellent photo- and thermal stability. Notably, monolithic bifacial perovskite/silicon TSCs incorporating 3PyFA⁺ attain a record-high power generation density of 32.51 mW cm-2 under typical bifacial illumination - the highest reported value to date for bifacial perovskite/silicon TSCs. This study establishes a new paradigm for additive design via structural isomer engineering and offers practical guidance for the development of efficient and durable bifacial tandem photovoltaics.
