具有可调节表面粘附的背粘复合固体电解质在固态钠金属电池中实现增强的界面动力学和稳定性

IF 18.2 1区 材料科学 Q1 CHEMISTRY, PHYSICAL
Dongrong Yang, , , Huangkai Zhou, , , Baowen Wang, , , Kun Ren, , , Pan Liu, , , Yingjie Zhou, , , Da Zhang, , , Shengping Hou, , , Fupeng Li, , , Minjie Hou, , , Yongqing Cai, , , Haijun Wu, , , Bin Yang, , and , Feng Liang*,
{"title":"具有可调节表面粘附的背粘复合固体电解质在固态钠金属电池中实现增强的界面动力学和稳定性","authors":"Dongrong Yang,&nbsp;, ,&nbsp;Huangkai Zhou,&nbsp;, ,&nbsp;Baowen Wang,&nbsp;, ,&nbsp;Kun Ren,&nbsp;, ,&nbsp;Pan Liu,&nbsp;, ,&nbsp;Yingjie Zhou,&nbsp;, ,&nbsp;Da Zhang,&nbsp;, ,&nbsp;Shengping Hou,&nbsp;, ,&nbsp;Fupeng Li,&nbsp;, ,&nbsp;Minjie Hou,&nbsp;, ,&nbsp;Yongqing Cai,&nbsp;, ,&nbsp;Haijun Wu,&nbsp;, ,&nbsp;Bin Yang,&nbsp;, and ,&nbsp;Feng Liang*,&nbsp;","doi":"10.1021/acsenergylett.5c01155","DOIUrl":null,"url":null,"abstract":"<p >Achieving intimate interfacial contact and dendrite suppression at electrolyte interfaces is critical in order for solid-state sodium-metal batteries (SSSBs) to become next-generation energy storage systems. Herein, a surface adhesion regulation strategy using a Na<sub>3</sub>Zr<sub>2</sub>Si<sub>2</sub>PO<sub>12</sub> (NASICON)–polymer hybrid approach is introduced to design laminated hybrid solid electrolytes (LHSEs) with asymmetric rigid-adhesive surfaces. This design simultaneously enhances interfacial kinetics at the cathode and improves anode stability. Experiments and DFT calculations show that a new NASICON–polymer interface phase reduces the energy barrier for Na<sup>+</sup> transport, enhancing ion migration efficiency. The optimized SEs5040, comprising 50% NASICON and 40% NASICON hybrid solid electrolyte (HSE) heterogeneous layers, exhibits a critical current density of 1.5 mA cm<sup>–2</sup>, and the Na/SEs5040/Na<sub>3</sub>V<sub>2</sub>(PO<sub>4</sub>)<sub>3</sub> cell retains 86.2% capacity after 1795 cycles at 2 C. These findings offer insights into optimizing interfacial contacts and suppressing dendrites in SSSBs.</p>","PeriodicalId":16,"journal":{"name":"ACS Energy Letters ","volume":"10 10","pages":"4777–4786"},"PeriodicalIF":18.2000,"publicationDate":"2025-09-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Back-Adhesive Hybrid Solid Electrolyte with Regulated Surface Adhesion Realizing Enhanced Interfacial Kinetics and Stability in Solid-State Sodium Metal Batteries\",\"authors\":\"Dongrong Yang,&nbsp;, ,&nbsp;Huangkai Zhou,&nbsp;, ,&nbsp;Baowen Wang,&nbsp;, ,&nbsp;Kun Ren,&nbsp;, ,&nbsp;Pan Liu,&nbsp;, ,&nbsp;Yingjie Zhou,&nbsp;, ,&nbsp;Da Zhang,&nbsp;, ,&nbsp;Shengping Hou,&nbsp;, ,&nbsp;Fupeng Li,&nbsp;, ,&nbsp;Minjie Hou,&nbsp;, ,&nbsp;Yongqing Cai,&nbsp;, ,&nbsp;Haijun Wu,&nbsp;, ,&nbsp;Bin Yang,&nbsp;, and ,&nbsp;Feng Liang*,&nbsp;\",\"doi\":\"10.1021/acsenergylett.5c01155\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Achieving intimate interfacial contact and dendrite suppression at electrolyte interfaces is critical in order for solid-state sodium-metal batteries (SSSBs) to become next-generation energy storage systems. Herein, a surface adhesion regulation strategy using a Na<sub>3</sub>Zr<sub>2</sub>Si<sub>2</sub>PO<sub>12</sub> (NASICON)–polymer hybrid approach is introduced to design laminated hybrid solid electrolytes (LHSEs) with asymmetric rigid-adhesive surfaces. This design simultaneously enhances interfacial kinetics at the cathode and improves anode stability. Experiments and DFT calculations show that a new NASICON–polymer interface phase reduces the energy barrier for Na<sup>+</sup> transport, enhancing ion migration efficiency. The optimized SEs5040, comprising 50% NASICON and 40% NASICON hybrid solid electrolyte (HSE) heterogeneous layers, exhibits a critical current density of 1.5 mA cm<sup>–2</sup>, and the Na/SEs5040/Na<sub>3</sub>V<sub>2</sub>(PO<sub>4</sub>)<sub>3</sub> cell retains 86.2% capacity after 1795 cycles at 2 C. These findings offer insights into optimizing interfacial contacts and suppressing dendrites in SSSBs.</p>\",\"PeriodicalId\":16,\"journal\":{\"name\":\"ACS Energy Letters \",\"volume\":\"10 10\",\"pages\":\"4777–4786\"},\"PeriodicalIF\":18.2000,\"publicationDate\":\"2025-09-06\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Energy Letters \",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsenergylett.5c01155\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Energy Letters ","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsenergylett.5c01155","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

为了使固态钠金属电池(SSSBs)成为下一代储能系统,在电解质界面上实现紧密的界面接触和枝晶抑制至关重要。本文介绍了一种利用Na3Zr2Si2PO12 (NASICON) -聚合物杂化方法的表面粘附调节策略,用于设计具有非对称刚性粘附表面的层状杂化固体电解质(LHSEs)。这种设计同时提高了阴极的界面动力学和阳极的稳定性。实验和DFT计算表明,新的nasicon -聚合物界面相降低了Na+输运的能垒,提高了离子迁移效率。优化后的SEs5040由50%的NASICON和40%的NASICON混合固体电解质(HSE)非均质层组成,其临界电流密度为1.5 mA cm-2,并且Na/SEs5040/Na3V2(PO4)3电池在2c下循环1795次后仍保持86.2%的容量。这些研究结果为优化SSSBs的界面接触和抑制枝晶提供了见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Back-Adhesive Hybrid Solid Electrolyte with Regulated Surface Adhesion Realizing Enhanced Interfacial Kinetics and Stability in Solid-State Sodium Metal Batteries

Back-Adhesive Hybrid Solid Electrolyte with Regulated Surface Adhesion Realizing Enhanced Interfacial Kinetics and Stability in Solid-State Sodium Metal Batteries

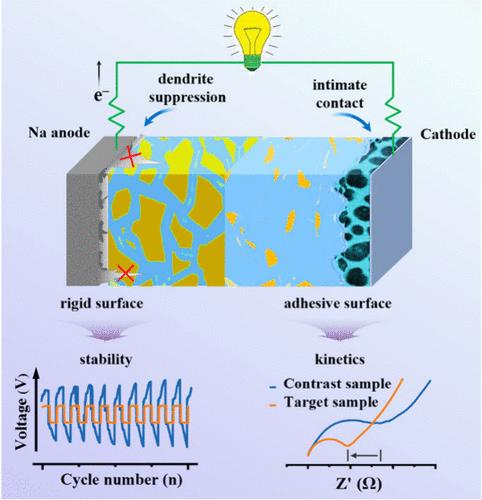

Achieving intimate interfacial contact and dendrite suppression at electrolyte interfaces is critical in order for solid-state sodium-metal batteries (SSSBs) to become next-generation energy storage systems. Herein, a surface adhesion regulation strategy using a Na3Zr2Si2PO12 (NASICON)–polymer hybrid approach is introduced to design laminated hybrid solid electrolytes (LHSEs) with asymmetric rigid-adhesive surfaces. This design simultaneously enhances interfacial kinetics at the cathode and improves anode stability. Experiments and DFT calculations show that a new NASICON–polymer interface phase reduces the energy barrier for Na+ transport, enhancing ion migration efficiency. The optimized SEs5040, comprising 50% NASICON and 40% NASICON hybrid solid electrolyte (HSE) heterogeneous layers, exhibits a critical current density of 1.5 mA cm–2, and the Na/SEs5040/Na3V2(PO4)3 cell retains 86.2% capacity after 1795 cycles at 2 C. These findings offer insights into optimizing interfacial contacts and suppressing dendrites in SSSBs.
