选择性碱性蚀刻法直接回收太阳能电池中的银和硅

IF 7.3 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Haochen Wang, , , Shiyu Wang, , , Shuaibo Gao, , , Fangzhao Pang, , , Hongya Wang, , , Xiang Chen, , , Shun Dai, , , Simin Xu, , , Yongxin Wu, , , Dihua Wang, , and , Huayi Yin*,
{"title":"选择性碱性蚀刻法直接回收太阳能电池中的银和硅","authors":"Haochen Wang,&nbsp;, ,&nbsp;Shiyu Wang,&nbsp;, ,&nbsp;Shuaibo Gao,&nbsp;, ,&nbsp;Fangzhao Pang,&nbsp;, ,&nbsp;Hongya Wang,&nbsp;, ,&nbsp;Xiang Chen,&nbsp;, ,&nbsp;Shun Dai,&nbsp;, ,&nbsp;Simin Xu,&nbsp;, ,&nbsp;Yongxin Wu,&nbsp;, ,&nbsp;Dihua Wang,&nbsp;, and ,&nbsp;Huayi Yin*,&nbsp;","doi":"10.1021/acssuschemeng.5c05190","DOIUrl":null,"url":null,"abstract":"<p >Recycling retired silicon solar cells is indispensable to sustain the ever-increasing deployment of photovoltaic (PV) panels. However, the recycling of silver (Ag) and silicon (Si) remains a challenge because the use of toxic acids (e.g., HF, HNO<sub>3</sub>) results in serious environmental burdens. Herein, we report a selective alkaline etching approach for the separation of Ag from Si solar cells, achieving complete separation in 5 min. The separation of Ag and Si is realized by the selective etching of SiO<sub>2</sub> and Si at the Ag/Si interface in the NaOH solution, where Ag is insoluble and collected as Ag wires. The recovery rates of Ag and Si reach 99% and 95%, respectively. Unlike traditional methods, Ag is directly recovered without the complex dissolution-electrolysis process. Si is recovered rather than fully or partially dissolved in the hydro-metallurgical process or converted into slags in the pyro-metallurgical process. Life Cycle Assessment (LCA) and Life Cycle Cost (LCC) results show that this approach has environmental and economic benefits. Overall, the selective alkaline etching approach is a green and low-cost recovery method to recycle Ag and Si, which will close the materials circle for the PV industry.</p>","PeriodicalId":25,"journal":{"name":"ACS Sustainable Chemistry & Engineering","volume":"13 41","pages":"17197–17207"},"PeriodicalIF":7.3000,"publicationDate":"2025-10-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Direct Recycling of Silver and Silicon from Solar Cells through Selective Alkaline Etching\",\"authors\":\"Haochen Wang,&nbsp;, ,&nbsp;Shiyu Wang,&nbsp;, ,&nbsp;Shuaibo Gao,&nbsp;, ,&nbsp;Fangzhao Pang,&nbsp;, ,&nbsp;Hongya Wang,&nbsp;, ,&nbsp;Xiang Chen,&nbsp;, ,&nbsp;Shun Dai,&nbsp;, ,&nbsp;Simin Xu,&nbsp;, ,&nbsp;Yongxin Wu,&nbsp;, ,&nbsp;Dihua Wang,&nbsp;, and ,&nbsp;Huayi Yin*,&nbsp;\",\"doi\":\"10.1021/acssuschemeng.5c05190\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Recycling retired silicon solar cells is indispensable to sustain the ever-increasing deployment of photovoltaic (PV) panels. However, the recycling of silver (Ag) and silicon (Si) remains a challenge because the use of toxic acids (e.g., HF, HNO<sub>3</sub>) results in serious environmental burdens. Herein, we report a selective alkaline etching approach for the separation of Ag from Si solar cells, achieving complete separation in 5 min. The separation of Ag and Si is realized by the selective etching of SiO<sub>2</sub> and Si at the Ag/Si interface in the NaOH solution, where Ag is insoluble and collected as Ag wires. The recovery rates of Ag and Si reach 99% and 95%, respectively. Unlike traditional methods, Ag is directly recovered without the complex dissolution-electrolysis process. Si is recovered rather than fully or partially dissolved in the hydro-metallurgical process or converted into slags in the pyro-metallurgical process. Life Cycle Assessment (LCA) and Life Cycle Cost (LCC) results show that this approach has environmental and economic benefits. Overall, the selective alkaline etching approach is a green and low-cost recovery method to recycle Ag and Si, which will close the materials circle for the PV industry.</p>\",\"PeriodicalId\":25,\"journal\":{\"name\":\"ACS Sustainable Chemistry & Engineering\",\"volume\":\"13 41\",\"pages\":\"17197–17207\"},\"PeriodicalIF\":7.3000,\"publicationDate\":\"2025-10-09\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Sustainable Chemistry & Engineering\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acssuschemeng.5c05190\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Sustainable Chemistry & Engineering","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acssuschemeng.5c05190","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

回收退役的硅太阳能电池对于维持不断增长的光伏(PV)板的部署是必不可少的。然而,银(Ag)和硅(Si)的回收仍然是一个挑战,因为使用有毒酸(如HF、HNO3)会造成严重的环境负担。在此,我们报道了一种选择性碱性蚀刻方法用于银和硅太阳能电池的分离,在5分钟内实现了完全分离。Ag和Si的分离是通过NaOH溶液中SiO2和Si在Ag/Si界面上的选择性蚀刻来实现的,其中Ag是不溶的,并以Ag丝的形式收集。银和硅的回收率分别达到99%和95%。与传统方法不同,银是直接回收的,不需要复杂的溶解电解过程。在湿法冶金过程中,硅被回收而不是全部或部分溶解,或者在火法冶金过程中转化为炉渣。生命周期评价(LCA)和生命周期成本(LCC)结果表明,该方法具有良好的环境效益和经济效益。总的来说,选择性碱性蚀刻法是一种绿色、低成本的回收银和硅的方法,将为光伏产业闭合材料循环。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Direct Recycling of Silver and Silicon from Solar Cells through Selective Alkaline Etching

Direct Recycling of Silver and Silicon from Solar Cells through Selective Alkaline Etching

Direct Recycling of Silver and Silicon from Solar Cells through Selective Alkaline Etching

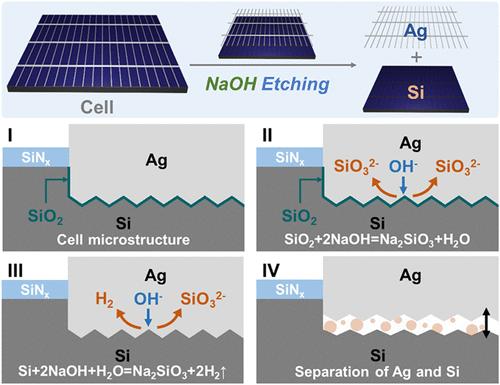

Recycling retired silicon solar cells is indispensable to sustain the ever-increasing deployment of photovoltaic (PV) panels. However, the recycling of silver (Ag) and silicon (Si) remains a challenge because the use of toxic acids (e.g., HF, HNO3) results in serious environmental burdens. Herein, we report a selective alkaline etching approach for the separation of Ag from Si solar cells, achieving complete separation in 5 min. The separation of Ag and Si is realized by the selective etching of SiO2 and Si at the Ag/Si interface in the NaOH solution, where Ag is insoluble and collected as Ag wires. The recovery rates of Ag and Si reach 99% and 95%, respectively. Unlike traditional methods, Ag is directly recovered without the complex dissolution-electrolysis process. Si is recovered rather than fully or partially dissolved in the hydro-metallurgical process or converted into slags in the pyro-metallurgical process. Life Cycle Assessment (LCA) and Life Cycle Cost (LCC) results show that this approach has environmental and economic benefits. Overall, the selective alkaline etching approach is a green and low-cost recovery method to recycle Ag and Si, which will close the materials circle for the PV industry.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Sustainable Chemistry & Engineering
ACS Sustainable Chemistry & Engineering CHEMISTRY, MULTIDISCIPLINARY-ENGINEERING, CHEMICAL
CiteScore
13.80
自引率
4.80%
发文量
1470
审稿时长
1.7 months
期刊介绍: ACS Sustainable Chemistry & Engineering is a prestigious weekly peer-reviewed scientific journal published by the American Chemical Society. Dedicated to advancing the principles of green chemistry and green engineering, it covers a wide array of research topics including green chemistry, green engineering, biomass, alternative energy, and life cycle assessment. The journal welcomes submissions in various formats, including Letters, Articles, Features, and Perspectives (Reviews), that address the challenges of sustainability in the chemical enterprise and contribute to the advancement of sustainable practices. Join us in shaping the future of sustainable chemistry and engineering.
×
