混合维n-ReS2/p-GaAs范德华异质结构实现的高性能宽带偏振敏感光电探测器。

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Bing Wang, , , Zuocheng Pu, , , Chaoyang Liu, , , Guoxin Liu, , , Wanglong Wu, , , Gaotian Zhang, , , Zhen Wang, , , Xiaozhou Wang, , , Wei Gao*, , , Huaimin Gu*, , and , Jingbo Li*,
{"title":"混合维n-ReS2/p-GaAs范德华异质结构实现的高性能宽带偏振敏感光电探测器。","authors":"Bing Wang,&nbsp;, ,&nbsp;Zuocheng Pu,&nbsp;, ,&nbsp;Chaoyang Liu,&nbsp;, ,&nbsp;Guoxin Liu,&nbsp;, ,&nbsp;Wanglong Wu,&nbsp;, ,&nbsp;Gaotian Zhang,&nbsp;, ,&nbsp;Zhen Wang,&nbsp;, ,&nbsp;Xiaozhou Wang,&nbsp;, ,&nbsp;Wei Gao*,&nbsp;, ,&nbsp;Huaimin Gu*,&nbsp;, and ,&nbsp;Jingbo Li*,&nbsp;","doi":"10.1021/acsami.5c14804","DOIUrl":null,"url":null,"abstract":"<p >The realization of photodetectors capable of broadband detection, self-powered operation, and polarization sensitivity is crucial for advancing next-generation optoelectronic technologies. A mixed-dimensional van der Waals heterojunction photodetector composed of two-dimensional ReS<sub>2</sub> and three-dimensional p-type GaAs was designed and fabricated in this study. The device effectively achieves broadband self-powered photodetection across the spectral range of 254–808 nm at zero external bias. When exposed to 365 nm ultraviolet radiation, the photodetector delivers a high responsivity of 0.15 A/W and a specific detectivity reaching 8.39 × 10<sup>11</sup> Jones. Additionally, it demonstrates rapid temporal response, with rise and decay times of 77 and 81 ms, respectively. Benefiting from the intrinsic in-plane anisotropy of the ReS<sub>2</sub> crystal lattice and the effective depletion region at the ReS<sub>2</sub>/GaAs interface, the device reveals pronounced polarization sensitivity, with the polarization ratios of 2.11 at V<sub>ds</sub> = 0 V and 14.46 at V<sub>ds</sub> = −1 V under 405 nm. These findings underscore the promising prospects of n-ReS<sub>2</sub>/p-GaAs heterostructures in enabling multifunctional, energy-efficient, and high-performance photodetection, with particular relevance to polarization-resolved imaging and next-generation optical sensing technologies.</p>","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"17 42","pages":"58914–58925"},"PeriodicalIF":8.2000,"publicationDate":"2025-10-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"High Performance Broadband Polarization-Sensitive Photodetector Enabled by Mixed-Dimensional n-ReS2/p-GaAs van der Waals Heterostructure\",\"authors\":\"Bing Wang,&nbsp;, ,&nbsp;Zuocheng Pu,&nbsp;, ,&nbsp;Chaoyang Liu,&nbsp;, ,&nbsp;Guoxin Liu,&nbsp;, ,&nbsp;Wanglong Wu,&nbsp;, ,&nbsp;Gaotian Zhang,&nbsp;, ,&nbsp;Zhen Wang,&nbsp;, ,&nbsp;Xiaozhou Wang,&nbsp;, ,&nbsp;Wei Gao*,&nbsp;, ,&nbsp;Huaimin Gu*,&nbsp;, and ,&nbsp;Jingbo Li*,&nbsp;\",\"doi\":\"10.1021/acsami.5c14804\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The realization of photodetectors capable of broadband detection, self-powered operation, and polarization sensitivity is crucial for advancing next-generation optoelectronic technologies. A mixed-dimensional van der Waals heterojunction photodetector composed of two-dimensional ReS<sub>2</sub> and three-dimensional p-type GaAs was designed and fabricated in this study. The device effectively achieves broadband self-powered photodetection across the spectral range of 254–808 nm at zero external bias. When exposed to 365 nm ultraviolet radiation, the photodetector delivers a high responsivity of 0.15 A/W and a specific detectivity reaching 8.39 × 10<sup>11</sup> Jones. Additionally, it demonstrates rapid temporal response, with rise and decay times of 77 and 81 ms, respectively. Benefiting from the intrinsic in-plane anisotropy of the ReS<sub>2</sub> crystal lattice and the effective depletion region at the ReS<sub>2</sub>/GaAs interface, the device reveals pronounced polarization sensitivity, with the polarization ratios of 2.11 at V<sub>ds</sub> = 0 V and 14.46 at V<sub>ds</sub> = −1 V under 405 nm. These findings underscore the promising prospects of n-ReS<sub>2</sub>/p-GaAs heterostructures in enabling multifunctional, energy-efficient, and high-performance photodetection, with particular relevance to polarization-resolved imaging and next-generation optical sensing technologies.</p>\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"17 42\",\"pages\":\"58914–58925\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2025-10-07\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsami.5c14804\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsami.5c14804","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

实现具有宽带探测能力、自供电能力和偏振灵敏度的光电探测器对于推进下一代光电技术至关重要。本研究设计并制作了由二维ReS2和三维p型GaAs组成的混合维范德华异质结光电探测器。该器件在零外部偏压下有效地实现了254-808 nm光谱范围内的宽带自供电光探测。当暴露于365 nm紫外辐射时,光电探测器提供了0.15 a /W的高响应率,比探测率达到8.39 × 1011琼斯。此外,它表现出快速的时间响应,上升和衰减时间分别为77 ms和81 ms。得益于ReS2晶格的本征面内各向异性和ReS2/GaAs界面处的有效耗尽区,该器件在405 nm下具有明显的极化灵敏度,在Vds = 0 V时极化比为2.11,在Vds = -1 V时极化比为14.46。这些发现强调了n-ReS2/p-GaAs异质结构在实现多功能、节能和高性能光探测方面的广阔前景,特别是与偏振分辨成像和下一代光学传感技术相关。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

High Performance Broadband Polarization-Sensitive Photodetector Enabled by Mixed-Dimensional n-ReS2/p-GaAs van der Waals Heterostructure

High Performance Broadband Polarization-Sensitive Photodetector Enabled by Mixed-Dimensional n-ReS2/p-GaAs van der Waals Heterostructure

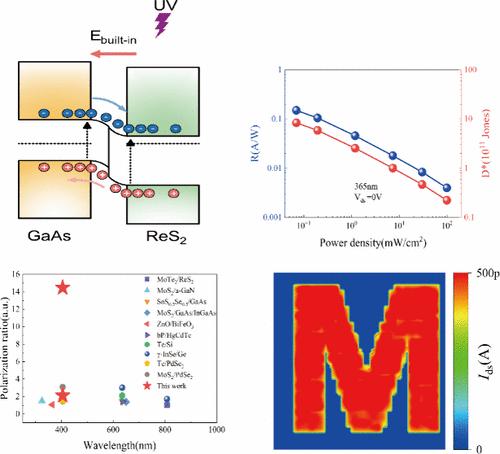

The realization of photodetectors capable of broadband detection, self-powered operation, and polarization sensitivity is crucial for advancing next-generation optoelectronic technologies. A mixed-dimensional van der Waals heterojunction photodetector composed of two-dimensional ReS2 and three-dimensional p-type GaAs was designed and fabricated in this study. The device effectively achieves broadband self-powered photodetection across the spectral range of 254–808 nm at zero external bias. When exposed to 365 nm ultraviolet radiation, the photodetector delivers a high responsivity of 0.15 A/W and a specific detectivity reaching 8.39 × 1011 Jones. Additionally, it demonstrates rapid temporal response, with rise and decay times of 77 and 81 ms, respectively. Benefiting from the intrinsic in-plane anisotropy of the ReS2 crystal lattice and the effective depletion region at the ReS2/GaAs interface, the device reveals pronounced polarization sensitivity, with the polarization ratios of 2.11 at Vds = 0 V and 14.46 at Vds = −1 V under 405 nm. These findings underscore the promising prospects of n-ReS2/p-GaAs heterostructures in enabling multifunctional, energy-efficient, and high-performance photodetection, with particular relevance to polarization-resolved imaging and next-generation optical sensing technologies.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Applied Materials & Interfaces
ACS Applied Materials & Interfaces 工程技术-材料科学:综合
CiteScore
16.00
自引率
6.30%
发文量
4978
审稿时长
1.8 months
期刊介绍: ACS Applied Materials & Interfaces is a leading interdisciplinary journal that brings together chemists, engineers, physicists, and biologists to explore the development and utilization of newly-discovered materials and interfacial processes for specific applications. Our journal has experienced remarkable growth since its establishment in 2009, both in terms of the number of articles published and the impact of the research showcased. We are proud to foster a truly global community, with the majority of published articles originating from outside the United States, reflecting the rapid growth of applied research worldwide.
×
