优异的稳定性纤维素复合隔膜使高倍率锌离子电池具有超长的循环寿命

IF 9.1 1区材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY

Nano Letters Pub Date : 2025-10-06 DOI:10.1021/acs.nanolett.5c03382

Qijin Teng, Zuocai Zhang, Renyang Han, Nannan Zhu, Yibin Xing, Xiyao Wang, Bing Du, Xuejuan Wan

{"title":"优异的稳定性纤维素复合隔膜使高倍率锌离子电池具有超长的循环寿命","authors":"Qijin Teng, Zuocai Zhang, Renyang Han, Nannan Zhu, Yibin Xing, Xiyao Wang, Bing Du, Xuejuan Wan","doi":"10.1021/acs.nanolett.5c03382","DOIUrl":null,"url":null,"abstract":"Aqueous zinc ion batteries (AZIBs) are preferred for safety and cost-effectiveness but encounter challenges like zinc dendrite growth and side reactions, reducing their lifespan. Herein, a composite separator (CSC) for AZIBs is prepared using carboxylate sisal fiber (CSF) and sulfonation cotton fiber (SCF), followed by cross-linking with citric acid (CA). The exceptional stability of CSC─including high mechanical strength, wide pH tolerance, and suppression of hydrogen evolution─combined with high zinc ion migration number (tZn2+ = 0.70), leads to its remarkable electrochemical performance. The cycle life of Zn//Zn batteries with CSC is over 6400 and 400 h at 5 mA cm–2 and 20 mA cm–2, respectively. A Zn//MnO2 full battery exhibits 92.85% capacity retention after 10000 cycles at 5 A g–1 (∼16C), significantly outperforming the widely used commercial separators in AZIBs like glass fiber (GF). This work presents a highly effective but simple separator design strategy to achieve long-cycling, high-rate AZIBs.","PeriodicalId":53,"journal":{"name":"Nano Letters","volume":"23 1","pages":""},"PeriodicalIF":9.1000,"publicationDate":"2025-10-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Superior Stability Cellulose Composite Separators Enable High-Rate Zinc Ion Batteries with Ultralong Cycle Life\",\"authors\":\"Qijin Teng, Zuocai Zhang, Renyang Han, Nannan Zhu, Yibin Xing, Xiyao Wang, Bing Du, Xuejuan Wan\",\"doi\":\"10.1021/acs.nanolett.5c03382\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Aqueous zinc ion batteries (AZIBs) are preferred for safety and cost-effectiveness but encounter challenges like zinc dendrite growth and side reactions, reducing their lifespan. Herein, a composite separator (CSC) for AZIBs is prepared using carboxylate sisal fiber (CSF) and sulfonation cotton fiber (SCF), followed by cross-linking with citric acid (CA). The exceptional stability of CSC─including high mechanical strength, wide pH tolerance, and suppression of hydrogen evolution─combined with high zinc ion migration number (tZn2+ = 0.70), leads to its remarkable electrochemical performance. The cycle life of Zn//Zn batteries with CSC is over 6400 and 400 h at 5 mA cm–2 and 20 mA cm–2, respectively. A Zn//MnO2 full battery exhibits 92.85% capacity retention after 10000 cycles at 5 A g–1 (∼16C), significantly outperforming the widely used commercial separators in AZIBs like glass fiber (GF). This work presents a highly effective but simple separator design strategy to achieve long-cycling, high-rate AZIBs.\",\"PeriodicalId\":53,\"journal\":{\"name\":\"Nano Letters\",\"volume\":\"23 1\",\"pages\":\"\"},\"PeriodicalIF\":9.1000,\"publicationDate\":\"2025-10-06\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Nano Letters\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acs.nanolett.5c03382\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nano Letters","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acs.nanolett.5c03382","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

水性锌离子电池（azib）在安全性和成本效益方面是首选，但遇到锌枝晶生长和副反应等挑战，降低了其使用寿命。本文以羧酸剑麻纤维（CSF）和磺化棉纤维（SCF）为原料，与柠檬酸（CA）交联，制备了azib复合分离器（CSC）。CSC优异的稳定性，包括高机械强度、宽pH耐受性和抑制析氢，加上高锌离子迁移数（tZn2+ = 0.70），使其具有卓越的电化学性能。在5 mA cm-2和20 mA cm-2条件下，含CSC的Zn//Zn电池的循环寿命分别超过6400和400 h。在5 A g-1（~ 16℃）下，在10000次循环后，Zn//MnO2电池的容量保持率为92.85%，显著优于在azib（如玻璃纤维）中广泛使用的商业隔膜。这项工作提出了一种高效而简单的分离器设计策略，可以实现长周期、高速率的azib。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Superior Stability Cellulose Composite Separators Enable High-Rate Zinc Ion Batteries with Ultralong Cycle Life

查看原文本刊更多论文

Superior Stability Cellulose Composite Separators Enable High-Rate Zinc Ion Batteries with Ultralong Cycle Life

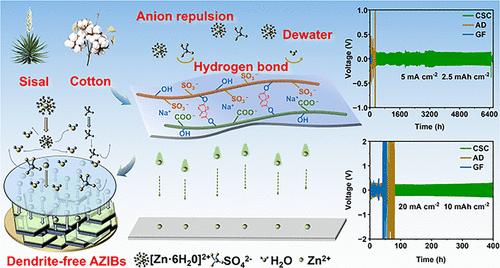

Aqueous zinc ion batteries (AZIBs) are preferred for safety and cost-effectiveness but encounter challenges like zinc dendrite growth and side reactions, reducing their lifespan. Herein, a composite separator (CSC) for AZIBs is prepared using carboxylate sisal fiber (CSF) and sulfonation cotton fiber (SCF), followed by cross-linking with citric acid (CA). The exceptional stability of CSC─including high mechanical strength, wide pH tolerance, and suppression of hydrogen evolution─combined with high zinc ion migration number (t_Zn²⁺ = 0.70), leads to its remarkable electrochemical performance. The cycle life of Zn//Zn batteries with CSC is over 6400 and 400 h at 5 mA cm^–2 and 20 mA cm^–2, respectively. A Zn//MnO₂ full battery exhibits 92.85% capacity retention after 10000 cycles at 5 A g^–1 (∼16C), significantly outperforming the widely used commercial separators in AZIBs like glass fiber (GF). This work presents a highly effective but simple separator design strategy to achieve long-cycling, high-rate AZIBs.

求助全文

通过发布文献求助，成功后即可免费获取论文全文。去求助
