单链DNA (ssDNA)供体修复模板和CRISPR/Cas9能够在马铃薯中实现高频率的靶向插入。

IF 4.4 Q1 BIOTECHNOLOGY & APPLIED MICROBIOLOGY
Frontiers in genome editing Pub Date : 2025-09-19 eCollection Date: 2025-01-01 DOI:10.3389/fgeed.2025.1661829
Matías N González, Neha Salaria, Martin Friberg, Ying Liu, Josefin Alverup, Mariette Andersson, Per Hofvander
{"title":"单链DNA (ssDNA)供体修复模板和CRISPR/Cas9能够在马铃薯中实现高频率的靶向插入。","authors":"Matías N González, Neha Salaria, Martin Friberg, Ying Liu, Josefin Alverup, Mariette Andersson, Per Hofvander","doi":"10.3389/fgeed.2025.1661829","DOIUrl":null,"url":null,"abstract":"<p><p>Homology-directed repair (HDR) holds great promise for plant genetic engineering but remains challenging due to its inherently low efficiency in gene editing applications. While studies in animal systems suggest that the structure of the donor repair template (DRT) influences HDR efficiency, this parameter remains largely unexplored in plants. In this study, we combined protoplast transfection with next-generation sequencing to analyse the impact of DRT structure on HDR efficiency in potato. A highly efficient ribonucleoprotein (RNP) complex targeting the <i>soluble starch synthase 1</i> (<i>SS1</i>) gene was used in combination with various DRTs, differing in structural factors such as homology arm (HA) length, strandedness (i.e., ssDNA vs. dsDNA), and sequence orientation in ssDNA donors. Our results indicate that a ssDNA donor in the target orientation outperformed other configurations, achieving a HDR efficiency of 1.12% of the sequencing reads in the pool of protoplasts. Interestingly, HDR efficiency appeared independent of HA length. Notably, a ssDNA donor with HAs as short as 30 nucleotides led to targeted insertions in up to 24.89% of reads on average, but predominantly via alternative imprecise repair pathways, such as microhomology-mediated end joining (MMEJ). This donor structure also consistently yielded the highest HDR and targeted insertion rates at two out of three additional loci tested, offering valuable insights for future genome editing strategies in potato. We further assessed strategies to favour HDR over alternative repair outcomes, including the use of small molecules known to inhibit competing pathways in animal systems, and modifications to DRTs to enhance their availability in the vicinity of the target site. However, these approaches did not improve HDR efficiency. Overall, this study presents an effective platform for rapidly assessing gene editing components in potato and provides insights for achieving high-frequency, targeted insertions of short DNA fragments, especially relevant for efficient knock-in integration in non-coding genomic regions.</p>","PeriodicalId":73086,"journal":{"name":"Frontiers in genome editing","volume":"7 ","pages":"1661829"},"PeriodicalIF":4.4000,"publicationDate":"2025-09-19","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12491282/pdf/","citationCount":"0","resultStr":"{\"title\":\"Single-stranded DNA (ssDNA) donor repair templates and CRISPR/Cas9 enable a high-frequency of targeted insertions in potato.\",\"authors\":\"Matías N González, Neha Salaria, Martin Friberg, Ying Liu, Josefin Alverup, Mariette Andersson, Per Hofvander\",\"doi\":\"10.3389/fgeed.2025.1661829\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>Homology-directed repair (HDR) holds great promise for plant genetic engineering but remains challenging due to its inherently low efficiency in gene editing applications. While studies in animal systems suggest that the structure of the donor repair template (DRT) influences HDR efficiency, this parameter remains largely unexplored in plants. In this study, we combined protoplast transfection with next-generation sequencing to analyse the impact of DRT structure on HDR efficiency in potato. A highly efficient ribonucleoprotein (RNP) complex targeting the <i>soluble starch synthase 1</i> (<i>SS1</i>) gene was used in combination with various DRTs, differing in structural factors such as homology arm (HA) length, strandedness (i.e., ssDNA vs. dsDNA), and sequence orientation in ssDNA donors. Our results indicate that a ssDNA donor in the target orientation outperformed other configurations, achieving a HDR efficiency of 1.12% of the sequencing reads in the pool of protoplasts. Interestingly, HDR efficiency appeared independent of HA length. Notably, a ssDNA donor with HAs as short as 30 nucleotides led to targeted insertions in up to 24.89% of reads on average, but predominantly via alternative imprecise repair pathways, such as microhomology-mediated end joining (MMEJ). This donor structure also consistently yielded the highest HDR and targeted insertion rates at two out of three additional loci tested, offering valuable insights for future genome editing strategies in potato. We further assessed strategies to favour HDR over alternative repair outcomes, including the use of small molecules known to inhibit competing pathways in animal systems, and modifications to DRTs to enhance their availability in the vicinity of the target site. However, these approaches did not improve HDR efficiency. Overall, this study presents an effective platform for rapidly assessing gene editing components in potato and provides insights for achieving high-frequency, targeted insertions of short DNA fragments, especially relevant for efficient knock-in integration in non-coding genomic regions.</p>\",\"PeriodicalId\":73086,\"journal\":{\"name\":\"Frontiers in genome editing\",\"volume\":\"7 \",\"pages\":\"1661829\"},\"PeriodicalIF\":4.4000,\"publicationDate\":\"2025-09-19\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12491282/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Frontiers in genome editing\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://doi.org/10.3389/fgeed.2025.1661829\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2025/1/1 0:00:00\",\"PubModel\":\"eCollection\",\"JCR\":\"Q1\",\"JCRName\":\"BIOTECHNOLOGY & APPLIED MICROBIOLOGY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Frontiers in genome editing","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.3389/fgeed.2025.1661829","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/1/1 0:00:00","PubModel":"eCollection","JCR":"Q1","JCRName":"BIOTECHNOLOGY & APPLIED MICROBIOLOGY","Score":null,"Total":0}
引用次数: 0

摘要

同源定向修复技术(Homology-directed repair, HDR)在植物基因工程中具有广阔的应用前景,但由于其在基因编辑应用中固有的低效率,仍然具有挑战性。虽然在动物系统中的研究表明,供体修复模板(DRT)的结构影响HDR效率,但这一参数在植物中仍未得到充分研究。本研究采用原生质体转染和下一代测序相结合的方法,分析了DRT结构对马铃薯HDR效率的影响。针对可溶性淀粉合成酶1 (SS1)基因的高效核糖核蛋白(RNP)复合体与各种DRTs结合使用,这些DRTs的结构因素不同,如同源臂(HA)长度、链结性(即ssDNA与dsDNA)和ssDNA供体的序列取向。我们的研究结果表明,目标方向的ssDNA供体优于其他配置,在原生质体池中测序读取的HDR效率为1.12%。有趣的是,HDR效率与HA长度无关。值得注意的是,具有30个核苷酸的ha的ssDNA供体平均在高达24.89%的reads中导致靶向插入,但主要是通过替代的不精确修复途径,如微同源介导的末端连接(MMEJ)。该供体结构在另外三个测试位点中的两个位点也始终产生最高的HDR和靶向插入率,为马铃薯未来的基因组编辑策略提供了有价值的见解。我们进一步评估了有利于HDR的策略,而不是其他修复结果,包括使用已知的小分子来抑制动物系统中的竞争途径,以及修改drt以提高其在靶点附近的可用性。然而,这些方法并没有提高HDR效率。总体而言,本研究提供了一个快速评估马铃薯基因编辑成分的有效平台,并为实现短DNA片段的高频靶向插入提供了见解,特别是与非编码基因组区域的高效敲入整合相关。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Single-stranded DNA (ssDNA) donor repair templates and CRISPR/Cas9 enable a high-frequency of targeted insertions in potato.

Single-stranded DNA (ssDNA) donor repair templates and CRISPR/Cas9 enable a high-frequency of targeted insertions in potato.

Single-stranded DNA (ssDNA) donor repair templates and CRISPR/Cas9 enable a high-frequency of targeted insertions in potato.

Single-stranded DNA (ssDNA) donor repair templates and CRISPR/Cas9 enable a high-frequency of targeted insertions in potato.

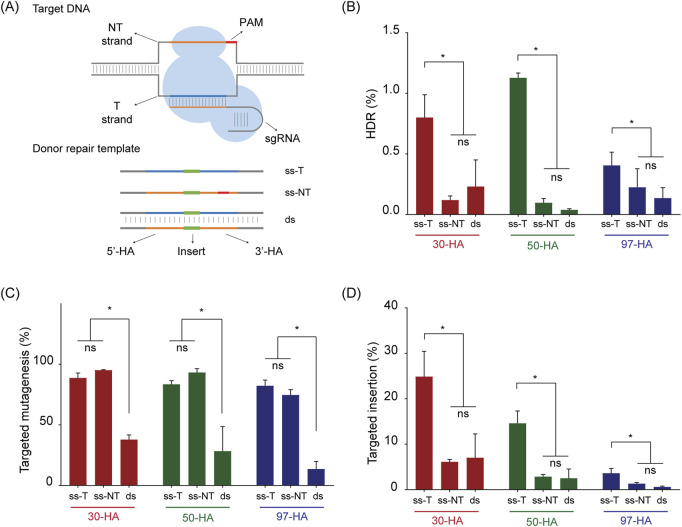

Homology-directed repair (HDR) holds great promise for plant genetic engineering but remains challenging due to its inherently low efficiency in gene editing applications. While studies in animal systems suggest that the structure of the donor repair template (DRT) influences HDR efficiency, this parameter remains largely unexplored in plants. In this study, we combined protoplast transfection with next-generation sequencing to analyse the impact of DRT structure on HDR efficiency in potato. A highly efficient ribonucleoprotein (RNP) complex targeting the soluble starch synthase 1 (SS1) gene was used in combination with various DRTs, differing in structural factors such as homology arm (HA) length, strandedness (i.e., ssDNA vs. dsDNA), and sequence orientation in ssDNA donors. Our results indicate that a ssDNA donor in the target orientation outperformed other configurations, achieving a HDR efficiency of 1.12% of the sequencing reads in the pool of protoplasts. Interestingly, HDR efficiency appeared independent of HA length. Notably, a ssDNA donor with HAs as short as 30 nucleotides led to targeted insertions in up to 24.89% of reads on average, but predominantly via alternative imprecise repair pathways, such as microhomology-mediated end joining (MMEJ). This donor structure also consistently yielded the highest HDR and targeted insertion rates at two out of three additional loci tested, offering valuable insights for future genome editing strategies in potato. We further assessed strategies to favour HDR over alternative repair outcomes, including the use of small molecules known to inhibit competing pathways in animal systems, and modifications to DRTs to enhance their availability in the vicinity of the target site. However, these approaches did not improve HDR efficiency. Overall, this study presents an effective platform for rapidly assessing gene editing components in potato and provides insights for achieving high-frequency, targeted insertions of short DNA fragments, especially relevant for efficient knock-in integration in non-coding genomic regions.
