TPMS径向连续梯度多孔骨支架的仿生设计与性能研究

IF 4 3区 材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY
Qian Kai, Lu Ping, Zhang Fulong, Liu Shuangyu, Wang Binhua, Ferdinand Machibya, Jiang Weibo, Huang Chuanjin, Wang Xi, Hong Juan
{"title":"TPMS径向连续梯度多孔骨支架的仿生设计与性能研究","authors":"Qian Kai,&nbsp;Lu Ping,&nbsp;Zhang Fulong,&nbsp;Liu Shuangyu,&nbsp;Wang Binhua,&nbsp;Ferdinand Machibya,&nbsp;Jiang Weibo,&nbsp;Huang Chuanjin,&nbsp;Wang Xi,&nbsp;Hong Juan","doi":"10.1007/s12540-025-01945-4","DOIUrl":null,"url":null,"abstract":"<div><p>In this study, radial pore continuous gradient porous bone scaffolds were designed and optimized based on the Gyroid single-cell structure to meet the demand for high-performance bone implants in bone tissue engineering. Ti–6Al–4V alloy scaffolds with varying single-cell sizes and porosities were fabricated using laser powder bed fusion (PBF-LB) technology for comparative analysis. The findings revealed that the radial pore continuous gradient porous structure exhibited superior mechanical properties and permeability, coupled with a large specific surface area and a helical trajectory for fluid permeation. These features significantly enhanced cell attachment and promoted bone regeneration. The mechanical properties of the scaffolds were further refined, and their toughness was improved through heat treatment of the Ti–6Al–4V alloy. Among the tested designs, the G3-60 scaffold demonstrated the most balanced performance, achieving an elastic modulus of 8.23 GPa, a yield strength of 300.09 MPa, a maximum specific surface area of 3559.362 mm<sup>2</sup>, and a permeability of 2.984 × 10<sup>−3</sup>m<sup>2</sup> at a flow velocity of 0.1 mm/s. This scaffold not only provides exceptional mechanical load-bearing capacity and permeability but also offers a substantial surface area to support osteoblast attachment and proliferation. These results provide critical theoretical insights and technical guidance for the future design and clinical application of advanced bone implants.</p><h3>Graphical Abstract</h3>\n<div><figure><div><div><picture><source><img></source></picture></div></div></figure></div></div>","PeriodicalId":703,"journal":{"name":"Metals and Materials International","volume":"31 11","pages":"3216 - 3242"},"PeriodicalIF":4.0000,"publicationDate":"2025-04-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Biomimetic Design and Performance of TPMS Radial Continuous Gradient Porous Bone Scaffolds\",\"authors\":\"Qian Kai,&nbsp;Lu Ping,&nbsp;Zhang Fulong,&nbsp;Liu Shuangyu,&nbsp;Wang Binhua,&nbsp;Ferdinand Machibya,&nbsp;Jiang Weibo,&nbsp;Huang Chuanjin,&nbsp;Wang Xi,&nbsp;Hong Juan\",\"doi\":\"10.1007/s12540-025-01945-4\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><p>In this study, radial pore continuous gradient porous bone scaffolds were designed and optimized based on the Gyroid single-cell structure to meet the demand for high-performance bone implants in bone tissue engineering. Ti–6Al–4V alloy scaffolds with varying single-cell sizes and porosities were fabricated using laser powder bed fusion (PBF-LB) technology for comparative analysis. The findings revealed that the radial pore continuous gradient porous structure exhibited superior mechanical properties and permeability, coupled with a large specific surface area and a helical trajectory for fluid permeation. These features significantly enhanced cell attachment and promoted bone regeneration. The mechanical properties of the scaffolds were further refined, and their toughness was improved through heat treatment of the Ti–6Al–4V alloy. Among the tested designs, the G3-60 scaffold demonstrated the most balanced performance, achieving an elastic modulus of 8.23 GPa, a yield strength of 300.09 MPa, a maximum specific surface area of 3559.362 mm<sup>2</sup>, and a permeability of 2.984 × 10<sup>−3</sup>m<sup>2</sup> at a flow velocity of 0.1 mm/s. This scaffold not only provides exceptional mechanical load-bearing capacity and permeability but also offers a substantial surface area to support osteoblast attachment and proliferation. These results provide critical theoretical insights and technical guidance for the future design and clinical application of advanced bone implants.</p><h3>Graphical Abstract</h3>\\n<div><figure><div><div><picture><source><img></source></picture></div></div></figure></div></div>\",\"PeriodicalId\":703,\"journal\":{\"name\":\"Metals and Materials International\",\"volume\":\"31 11\",\"pages\":\"3216 - 3242\"},\"PeriodicalIF\":4.0000,\"publicationDate\":\"2025-04-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Metals and Materials International\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://link.springer.com/article/10.1007/s12540-025-01945-4\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Metals and Materials International","FirstCategoryId":"88","ListUrlMain":"https://link.springer.com/article/10.1007/s12540-025-01945-4","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

本研究基于Gyroid单细胞结构对径向孔连续梯度多孔骨支架进行了设计和优化,以满足骨组织工程对高性能骨植入物的需求。采用激光粉末床熔合(PBF-LB)技术制备不同单细胞尺寸和孔隙率的Ti-6Al-4V合金支架进行对比分析。结果表明,径向孔连续梯度多孔结构具有优异的力学性能和渗透率,且具有较大的比表面积和流体渗透的螺旋轨迹。这些特征显著增强细胞附着,促进骨再生。通过对Ti-6Al-4V合金进行热处理,进一步细化了支架的力学性能,提高了支架的韧性。在试验设计中,G3-60支架表现出最平衡的性能,在流速为0.1 mm/s时,其弹性模量为8.23 GPa,屈服强度为300.09 MPa,最大比表面积为3559.362 mm2,渗透率为2.984 × 10−3m2。这种支架不仅提供了卓越的机械承载能力和渗透性,而且提供了大量的表面积来支持成骨细胞的附着和增殖。这些结果为未来先进骨种植体的设计和临床应用提供了重要的理论见解和技术指导。图形抽象
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Biomimetic Design and Performance of TPMS Radial Continuous Gradient Porous Bone Scaffolds

Biomimetic Design and Performance of TPMS Radial Continuous Gradient Porous Bone Scaffolds

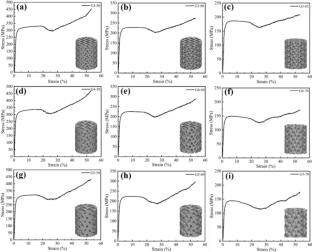

In this study, radial pore continuous gradient porous bone scaffolds were designed and optimized based on the Gyroid single-cell structure to meet the demand for high-performance bone implants in bone tissue engineering. Ti–6Al–4V alloy scaffolds with varying single-cell sizes and porosities were fabricated using laser powder bed fusion (PBF-LB) technology for comparative analysis. The findings revealed that the radial pore continuous gradient porous structure exhibited superior mechanical properties and permeability, coupled with a large specific surface area and a helical trajectory for fluid permeation. These features significantly enhanced cell attachment and promoted bone regeneration. The mechanical properties of the scaffolds were further refined, and their toughness was improved through heat treatment of the Ti–6Al–4V alloy. Among the tested designs, the G3-60 scaffold demonstrated the most balanced performance, achieving an elastic modulus of 8.23 GPa, a yield strength of 300.09 MPa, a maximum specific surface area of 3559.362 mm2, and a permeability of 2.984 × 10−3m2 at a flow velocity of 0.1 mm/s. This scaffold not only provides exceptional mechanical load-bearing capacity and permeability but also offers a substantial surface area to support osteoblast attachment and proliferation. These results provide critical theoretical insights and technical guidance for the future design and clinical application of advanced bone implants.

Graphical Abstract
