一种利用碳纳米管光纤冷阴极实现高分辨率成像的微焦点x射线源

IF 11.6 2区 材料科学 Q1 CHEMISTRY, PHYSICAL
Jiankang Gao, Congying Deng, Qi Liu, Jun Jiang, Yanlin Ke, Juncong She, Jun Chen, Yu Zhang, Shaozhi Deng
{"title":"一种利用碳纳米管光纤冷阴极实现高分辨率成像的微焦点x射线源","authors":"Jiankang Gao,&nbsp;Congying Deng,&nbsp;Qi Liu,&nbsp;Jun Jiang,&nbsp;Yanlin Ke,&nbsp;Juncong She,&nbsp;Jun Chen,&nbsp;Yu Zhang,&nbsp;Shaozhi Deng","doi":"10.1016/j.carbon.2025.120893","DOIUrl":null,"url":null,"abstract":"<div><div>Facing the precising X-ray imaging applications such as medical and integrated circuit industry, high resolution micro-focal spot X-ray source is in urgent need. In this work, a novel carbon nanotube fiber (CNTF) was introduced as the microscale cold cathode for the X-ray source. The precising fabrication and field emission characteristics of CNTF cathode were carried out. The apex of the CNTF exhibited a cone-like structure with a diameter of 3.2 μm, which gives an extremely high current density of 3632.6 A/cm<sup>2</sup>, high reduced brightness of 1.14 × 10<sup>10</sup> A m<sup>−2</sup>·sr<sup>−1</sup>·V<sup>−1</sup>, low semi-angle of divergence of 11.3°, and low current fluctuation of 0.97 %. Benefit from the microscale CNTF cathode, a transmission type micro-focal spot X-ray source was assembled using a simple electrooptical structure. The measured X-ray FSS was 15.6 μm and the imaging resolution of 8.0 lp/mm was achieved at the anode voltage of 45 kV and anode current of 31.8 μA. The results demonstrated that the CNTF cold cathode based micro-focal spot X-ray source is a convenient and low-cost device solution which have a great potential in the applications of microscale object and biological tissue imaging.</div></div>","PeriodicalId":262,"journal":{"name":"Carbon","volume":"246 ","pages":"Article 120893"},"PeriodicalIF":11.6000,"publicationDate":"2025-09-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A micro-focal spot X-ray source using carbon nanotube fiber cold cathode to achieve high resolution imaging\",\"authors\":\"Jiankang Gao,&nbsp;Congying Deng,&nbsp;Qi Liu,&nbsp;Jun Jiang,&nbsp;Yanlin Ke,&nbsp;Juncong She,&nbsp;Jun Chen,&nbsp;Yu Zhang,&nbsp;Shaozhi Deng\",\"doi\":\"10.1016/j.carbon.2025.120893\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Facing the precising X-ray imaging applications such as medical and integrated circuit industry, high resolution micro-focal spot X-ray source is in urgent need. In this work, a novel carbon nanotube fiber (CNTF) was introduced as the microscale cold cathode for the X-ray source. The precising fabrication and field emission characteristics of CNTF cathode were carried out. The apex of the CNTF exhibited a cone-like structure with a diameter of 3.2 μm, which gives an extremely high current density of 3632.6 A/cm<sup>2</sup>, high reduced brightness of 1.14 × 10<sup>10</sup> A m<sup>−2</sup>·sr<sup>−1</sup>·V<sup>−1</sup>, low semi-angle of divergence of 11.3°, and low current fluctuation of 0.97 %. Benefit from the microscale CNTF cathode, a transmission type micro-focal spot X-ray source was assembled using a simple electrooptical structure. The measured X-ray FSS was 15.6 μm and the imaging resolution of 8.0 lp/mm was achieved at the anode voltage of 45 kV and anode current of 31.8 μA. The results demonstrated that the CNTF cold cathode based micro-focal spot X-ray source is a convenient and low-cost device solution which have a great potential in the applications of microscale object and biological tissue imaging.</div></div>\",\"PeriodicalId\":262,\"journal\":{\"name\":\"Carbon\",\"volume\":\"246 \",\"pages\":\"Article 120893\"},\"PeriodicalIF\":11.6000,\"publicationDate\":\"2025-09-28\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Carbon\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S0008622325009091\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Carbon","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0008622325009091","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

面对医疗、集成电路等精密x射线成像应用,迫切需要高分辨率的微焦点x射线源。本文介绍了一种新型碳纳米管纤维(CNTF)作为x射线源的微尺度冷阴极。研究了CNTF阴极的精密制作和场发射特性。CNTF尖端呈直径3.2 μm的圆锥形结构,具有3632.6 a /cm2的极高电流密度、1.14 × 1010 am−2·sr−1·V−1的高亮度、11.3°的低发散角和0.97%的低电流波动。利用微尺度CNTF阴极,利用简单的光电结构组装了透射型微焦斑x射线源。在阳极电压为45 kV,阳极电流为31.8 μA的条件下,测得的x射线FSS尺寸为15.6 μm,成像分辨率为8.0 lp/mm。结果表明,基于CNTF冷阴极的微焦点x射线源是一种方便、低成本的器件解决方案,在微尺度物体和生物组织成像方面具有很大的应用潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

A micro-focal spot X-ray source using carbon nanotube fiber cold cathode to achieve high resolution imaging

A micro-focal spot X-ray source using carbon nanotube fiber cold cathode to achieve high resolution imaging

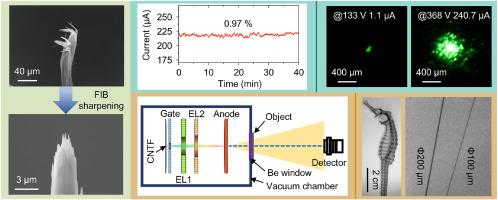

Facing the precising X-ray imaging applications such as medical and integrated circuit industry, high resolution micro-focal spot X-ray source is in urgent need. In this work, a novel carbon nanotube fiber (CNTF) was introduced as the microscale cold cathode for the X-ray source. The precising fabrication and field emission characteristics of CNTF cathode were carried out. The apex of the CNTF exhibited a cone-like structure with a diameter of 3.2 μm, which gives an extremely high current density of 3632.6 A/cm2, high reduced brightness of 1.14 × 1010 A m−2·sr−1·V−1, low semi-angle of divergence of 11.3°, and low current fluctuation of 0.97 %. Benefit from the microscale CNTF cathode, a transmission type micro-focal spot X-ray source was assembled using a simple electrooptical structure. The measured X-ray FSS was 15.6 μm and the imaging resolution of 8.0 lp/mm was achieved at the anode voltage of 45 kV and anode current of 31.8 μA. The results demonstrated that the CNTF cold cathode based micro-focal spot X-ray source is a convenient and low-cost device solution which have a great potential in the applications of microscale object and biological tissue imaging.
