Evaluating the bond strength and fracture mechanisms of cold-sprayed zinc coating on AZ91 magnesium substrate via a combined experimental and computational approach

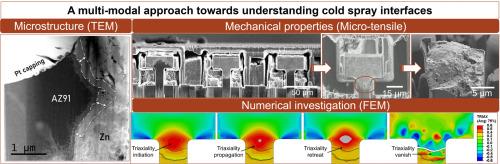

Magnesium (Mg) alloys are ideal candidates for automotive applications due to their high strength to weight ratio, castability, recyclability etc., however, they lack corrosion and oxidation resistance. Solid-state deposition techniques, such as cold spray, have been demonstrated to enhance their corrosion resistance as it relies on the severe plastic deformation of powder particles upon impact with the substrate to form a metallurgical bond with the substrate and within the coating. At cold sprayed interfaces, a heterogeneous microstructure is formed that includes some porosity, oxides and intermetallics which can significantly affect coating performance. Thus, establishing a direct correlation between the interface microstructure and its properties can aid in designing optimal cold spray parameters. In this study, we investigated the microstructure and mechanical properties of a zinc (Zn) coating deposited on a high pressure die cast (HPDC) AZ91 Mg substrate via high resolution scanning transmission electron microscopy, in situ micro-tensile testing, and finite element method (FEM) modeling. Micro-tensile pillars fabricated using the plasma focused ion beam (PFIB) successfully isolates the coating-substrate interface within the gauge length. The average bond strength of Zn-Mg interface was determined to be ∼140 MPa with failure occurring partially at the interface and mostly into the coatings. A detailed microstructural characterization revealed evidence of a strong metallurgical bonding at the Zn-Mg interface and formation of the C14 MgZn₂ laves phase interlayer resulting in a mixed mode of fracture during the micro-tensile experiments. FEM modeling reveals the stress distribution along the interfaces and suggests that a MgZn₂ layer thickness between 200–400 nm is optimum to increase the bond strength and minimize the triaxiality. Such a site-specific interfacial analysis with correlative computational modeling provides crucial insight into the overall performance of cold spray interfaces.
