有机突触晶体管显示界面光异构效应,增强紫外-近红外响应和双向调制神经形态视觉

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Zechen Liang, , , Jingpeng Wu, , , Xian Tang, , , Yi Zhao, , , Xianqiang Xie, , , Laju Bu, , , Xin Wang*, , and , Guanghao Lu*,
{"title":"有机突触晶体管显示界面光异构效应,增强紫外-近红外响应和双向调制神经形态视觉","authors":"Zechen Liang,&nbsp;, ,&nbsp;Jingpeng Wu,&nbsp;, ,&nbsp;Xian Tang,&nbsp;, ,&nbsp;Yi Zhao,&nbsp;, ,&nbsp;Xianqiang Xie,&nbsp;, ,&nbsp;Laju Bu,&nbsp;, ,&nbsp;Xin Wang*,&nbsp;, and ,&nbsp;Guanghao Lu*,&nbsp;","doi":"10.1021/acsami.5c13782","DOIUrl":null,"url":null,"abstract":"<p >Neuromorphic devices are pivotal for surpassing von Neumann architecture constraints, advancing neuromorphic computing and multifunctional simulations. Light-stimulated organic field-effect transistors (OFETs) are promising platforms for this purpose. However, most synaptic transistors are limited to single-wavelength response, and achieving bidirectional (excitatory/inhibitory) light modulation in unipolar devices remains challenging. Here, we fabricate an organic synaptic transistor using a spiropyran (SP) and poly(4-vinylphenol) (PVP) blended interface modification layer. This device achieves enhanced broadband responsivity from ultraviolet (UV) to near-infrared (NIR) with ultralow electrical energy consumption (0.104 fJ/spike), enabling applications in diverse functional simulations, as well as multispectral image perception, memory, processing, and color-mixed handwritten digit recognition. The enhancement stems from a collective effect: zwitterion-dipole-induced hole accumulation within the channel following SP photoisomerization and surface-trap-mediated photogenerated electron capture. Furthermore, we demonstrate bidirectional synaptic modulation in a unipolar transistor with an SP interface modification layer via gate voltage control. This exploits the voltage-dependent functionality of photogenerated zwitterions: hole induction at small negative fields (excitatory) and hole capture at high negative fields (inhibitory), applied to dynamic image encryption. This work demonstrates an easily accessible strategy for developing organic synaptic transistors with enhanced broadband responsiveness and bidirectional optical modulation.</p>","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"17 41","pages":"57365–57378"},"PeriodicalIF":8.2000,"publicationDate":"2025-10-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Organic Synaptic Transistors Exhibiting Interface Photoisomerizable Effect with Enhanced UV-NIR Response and Bidirectional Modulation for Neuromorphic Vision\",\"authors\":\"Zechen Liang,&nbsp;, ,&nbsp;Jingpeng Wu,&nbsp;, ,&nbsp;Xian Tang,&nbsp;, ,&nbsp;Yi Zhao,&nbsp;, ,&nbsp;Xianqiang Xie,&nbsp;, ,&nbsp;Laju Bu,&nbsp;, ,&nbsp;Xin Wang*,&nbsp;, and ,&nbsp;Guanghao Lu*,&nbsp;\",\"doi\":\"10.1021/acsami.5c13782\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Neuromorphic devices are pivotal for surpassing von Neumann architecture constraints, advancing neuromorphic computing and multifunctional simulations. Light-stimulated organic field-effect transistors (OFETs) are promising platforms for this purpose. However, most synaptic transistors are limited to single-wavelength response, and achieving bidirectional (excitatory/inhibitory) light modulation in unipolar devices remains challenging. Here, we fabricate an organic synaptic transistor using a spiropyran (SP) and poly(4-vinylphenol) (PVP) blended interface modification layer. This device achieves enhanced broadband responsivity from ultraviolet (UV) to near-infrared (NIR) with ultralow electrical energy consumption (0.104 fJ/spike), enabling applications in diverse functional simulations, as well as multispectral image perception, memory, processing, and color-mixed handwritten digit recognition. The enhancement stems from a collective effect: zwitterion-dipole-induced hole accumulation within the channel following SP photoisomerization and surface-trap-mediated photogenerated electron capture. Furthermore, we demonstrate bidirectional synaptic modulation in a unipolar transistor with an SP interface modification layer via gate voltage control. This exploits the voltage-dependent functionality of photogenerated zwitterions: hole induction at small negative fields (excitatory) and hole capture at high negative fields (inhibitory), applied to dynamic image encryption. This work demonstrates an easily accessible strategy for developing organic synaptic transistors with enhanced broadband responsiveness and bidirectional optical modulation.</p>\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"17 41\",\"pages\":\"57365–57378\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2025-10-03\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsami.5c13782\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsami.5c13782","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

神经形态设备是超越冯·诺伊曼架构限制,推进神经形态计算和多功能模拟的关键。光激发的有机场效应晶体管(ofet)是很有前途的平台。然而,大多数突触晶体管仅限于单波长响应,并且在单极器件中实现双向(兴奋/抑制)光调制仍然具有挑战性。在这里,我们使用螺吡喃(SP)和聚(4-乙烯基酚)(PVP)混合界面修饰层制作了一个有机突触晶体管。该器件实现了从紫外(UV)到近红外(NIR)的增强宽带响应性,具有超低的电能消耗(0.104 fJ/spike),可用于各种功能模拟,以及多光谱图像感知、记忆、处理和彩色混合手写数字识别。这种增强源于一种集体效应:在SP光异构化和表面陷阱介导的光生电子捕获之后,两性离子-偶极子诱导的通道内空穴积累。此外,我们展示了双向突触调制在单极晶体管与一个SP接口修改层通过栅极电压控制。这利用了光产生两性离子的电压依赖功能:小负场的空穴感应(兴奋性)和高负场的空穴捕获(抑制性),应用于动态图像加密。这项工作展示了一种易于实现的策略,用于开发具有增强宽带响应性和双向光调制的有机突触晶体管。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Organic Synaptic Transistors Exhibiting Interface Photoisomerizable Effect with Enhanced UV-NIR Response and Bidirectional Modulation for Neuromorphic Vision

Organic Synaptic Transistors Exhibiting Interface Photoisomerizable Effect with Enhanced UV-NIR Response and Bidirectional Modulation for Neuromorphic Vision

Organic Synaptic Transistors Exhibiting Interface Photoisomerizable Effect with Enhanced UV-NIR Response and Bidirectional Modulation for Neuromorphic Vision

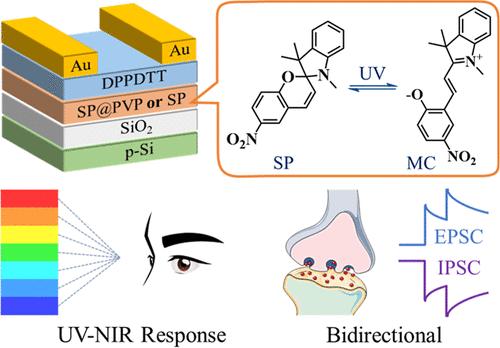

Neuromorphic devices are pivotal for surpassing von Neumann architecture constraints, advancing neuromorphic computing and multifunctional simulations. Light-stimulated organic field-effect transistors (OFETs) are promising platforms for this purpose. However, most synaptic transistors are limited to single-wavelength response, and achieving bidirectional (excitatory/inhibitory) light modulation in unipolar devices remains challenging. Here, we fabricate an organic synaptic transistor using a spiropyran (SP) and poly(4-vinylphenol) (PVP) blended interface modification layer. This device achieves enhanced broadband responsivity from ultraviolet (UV) to near-infrared (NIR) with ultralow electrical energy consumption (0.104 fJ/spike), enabling applications in diverse functional simulations, as well as multispectral image perception, memory, processing, and color-mixed handwritten digit recognition. The enhancement stems from a collective effect: zwitterion-dipole-induced hole accumulation within the channel following SP photoisomerization and surface-trap-mediated photogenerated electron capture. Furthermore, we demonstrate bidirectional synaptic modulation in a unipolar transistor with an SP interface modification layer via gate voltage control. This exploits the voltage-dependent functionality of photogenerated zwitterions: hole induction at small negative fields (excitatory) and hole capture at high negative fields (inhibitory), applied to dynamic image encryption. This work demonstrates an easily accessible strategy for developing organic synaptic transistors with enhanced broadband responsiveness and bidirectional optical modulation.
