浸没养护温度和龄期耦合作用下尾砂胶结充填体力学性能及能量损伤演化研究

IF 2.8 4区 环境科学与生态学 Q3 ENVIRONMENTAL SCIENCES
Kui Zhao, Zhouchao Liu, Peng Zeng, Liangfeng Xiong, Cong Gong, Ming Guo, Tianshou Hu, Rongsen Pan
{"title":"浸没养护温度和龄期耦合作用下尾砂胶结充填体力学性能及能量损伤演化研究","authors":"Kui Zhao,&nbsp;Zhouchao Liu,&nbsp;Peng Zeng,&nbsp;Liangfeng Xiong,&nbsp;Cong Gong,&nbsp;Ming Guo,&nbsp;Tianshou Hu,&nbsp;Rongsen Pan","doi":"10.1007/s12665-025-12518-4","DOIUrl":null,"url":null,"abstract":"<div><p>The backfill mining method is now in the transition stage from shallow to deep, and cemented tailings backfill (CTB) is subjected to the coupled of water and high temperature in the deep environment. Based on indoor tests and the theory of energy conservation, this paper investigates the mechanical properties and energy damage mechanism of CTB after water immersion at different temperatures (20, 35 and 50 °C) and ages (3, 7, 14 and 28 days). The results showed that the increase of both the curing temperature and age were beneficial to the mechanical properties of CTB, the water-weakening effect affected the deformation process of CTB, and the peak strain (PS) of CTB increased with the increase of the curing temperature and decreased with the increase of the curing age. The energy difference (<i>e</i><sub><i>k</i></sub>) curves of CTB under different curing conditions can be divided into four stages and correspond to the stress-strain curves. The weakening effect of water affects the rate of energy exchange of CTB, and the increase of curing temperature and age will enhance the energy absorption and transfer performance of CTB. The weakening effect of water slows down the rate of development of the slowly rising phase and the steadily rising phase of the dissipative energy curve, which is facilitated by the increase of the curing temperature, while the increase of the curing age leads to the rapid development of CTB dissipative energy curve in the rapidly rising phase. At lower curing temperatures and ages, the surface cracks of CTB were not prominent, and the “soft damage” effect was obvious. With the increase of temperatures and ages, the failure mode of CTB changed from shear damage to mixed tensile-shear damage. In this study, CTB with a solid content of 75% and a tailings-to-Portland cement ratio of 10:1 were prepared and subjected to immersion curing at 20, 35 and 50 °C for periods of 3, 7, 14, and 28 days. Following the curing process, unconfined compressive strength (UCS) tests and Brazilian splitting tensile strength tests were conducted at a constant loading rate of 0.5 mm/min.</p></div>","PeriodicalId":542,"journal":{"name":"Environmental Earth Sciences","volume":"84 19","pages":""},"PeriodicalIF":2.8000,"publicationDate":"2025-09-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Study on mechanical properties and energy damage evolution of cemented tailings backfill under the coupled effect of immersion curing temperature and age\",\"authors\":\"Kui Zhao,&nbsp;Zhouchao Liu,&nbsp;Peng Zeng,&nbsp;Liangfeng Xiong,&nbsp;Cong Gong,&nbsp;Ming Guo,&nbsp;Tianshou Hu,&nbsp;Rongsen Pan\",\"doi\":\"10.1007/s12665-025-12518-4\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><p>The backfill mining method is now in the transition stage from shallow to deep, and cemented tailings backfill (CTB) is subjected to the coupled of water and high temperature in the deep environment. Based on indoor tests and the theory of energy conservation, this paper investigates the mechanical properties and energy damage mechanism of CTB after water immersion at different temperatures (20, 35 and 50 °C) and ages (3, 7, 14 and 28 days). The results showed that the increase of both the curing temperature and age were beneficial to the mechanical properties of CTB, the water-weakening effect affected the deformation process of CTB, and the peak strain (PS) of CTB increased with the increase of the curing temperature and decreased with the increase of the curing age. The energy difference (<i>e</i><sub><i>k</i></sub>) curves of CTB under different curing conditions can be divided into four stages and correspond to the stress-strain curves. The weakening effect of water affects the rate of energy exchange of CTB, and the increase of curing temperature and age will enhance the energy absorption and transfer performance of CTB. The weakening effect of water slows down the rate of development of the slowly rising phase and the steadily rising phase of the dissipative energy curve, which is facilitated by the increase of the curing temperature, while the increase of the curing age leads to the rapid development of CTB dissipative energy curve in the rapidly rising phase. At lower curing temperatures and ages, the surface cracks of CTB were not prominent, and the “soft damage” effect was obvious. With the increase of temperatures and ages, the failure mode of CTB changed from shear damage to mixed tensile-shear damage. In this study, CTB with a solid content of 75% and a tailings-to-Portland cement ratio of 10:1 were prepared and subjected to immersion curing at 20, 35 and 50 °C for periods of 3, 7, 14, and 28 days. Following the curing process, unconfined compressive strength (UCS) tests and Brazilian splitting tensile strength tests were conducted at a constant loading rate of 0.5 mm/min.</p></div>\",\"PeriodicalId\":542,\"journal\":{\"name\":\"Environmental Earth Sciences\",\"volume\":\"84 19\",\"pages\":\"\"},\"PeriodicalIF\":2.8000,\"publicationDate\":\"2025-09-29\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Environmental Earth Sciences\",\"FirstCategoryId\":\"93\",\"ListUrlMain\":\"https://link.springer.com/article/10.1007/s12665-025-12518-4\",\"RegionNum\":4,\"RegionCategory\":\"环境科学与生态学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q3\",\"JCRName\":\"ENVIRONMENTAL SCIENCES\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Environmental Earth Sciences","FirstCategoryId":"93","ListUrlMain":"https://link.springer.com/article/10.1007/s12665-025-12518-4","RegionNum":4,"RegionCategory":"环境科学与生态学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"ENVIRONMENTAL SCIENCES","Score":null,"Total":0}
引用次数: 0

摘要

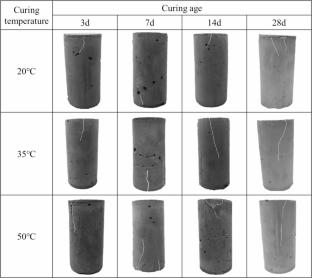

充填采矿法目前正处于由浅向深过渡阶段,胶结尾砂充填体在深部环境中受到水与高温的耦合作用。基于室内试验和节能理论,研究了不同温度(20、35、50℃)和龄期(3、7、14、28天)浸水后CTB的力学性能和能量损伤机理。结果表明:养护温度和龄期的提高均有利于CTB的力学性能,水弱化效应影响CTB的变形过程,CTB的峰值应变(PS)随养护温度的升高而增大,随养护龄期的增大而减小。不同固化条件下CTB的能量差(ek)曲线可分为4个阶段,与应力-应变曲线相对应。水的弱化作用影响CTB的能量交换速率,养护温度和龄期的提高会增强CTB的能量吸收和传递性能。水的弱化作用减缓了耗散能曲线缓慢上升阶段和稳定上升阶段的发展速度,养护温度的升高有利于耗散能曲线的缓慢上升阶段和稳定上升阶段的发展,而养护龄期的增加则导致CTB耗散能曲线在快速上升阶段的快速发展。在较低的养护温度和龄期下,CTB表面裂纹不明显,“软损伤”效应明显。随着温度和龄期的增加,CTB的破坏模式由剪切破坏转变为拉剪混合破坏。本研究制备了固含量为75%、尾矿与硅酸盐水泥比为10:1的CTB,分别在20、35和50℃下浸泡养护3、7、14和28天。在固化过程完成后,以0.5 mm/min恒定加载速率进行无侧限抗压强度(UCS)试验和巴西劈裂抗拉强度试验。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Study on mechanical properties and energy damage evolution of cemented tailings backfill under the coupled effect of immersion curing temperature and age

Study on mechanical properties and energy damage evolution of cemented tailings backfill under the coupled effect of immersion curing temperature and age

The backfill mining method is now in the transition stage from shallow to deep, and cemented tailings backfill (CTB) is subjected to the coupled of water and high temperature in the deep environment. Based on indoor tests and the theory of energy conservation, this paper investigates the mechanical properties and energy damage mechanism of CTB after water immersion at different temperatures (20, 35 and 50 °C) and ages (3, 7, 14 and 28 days). The results showed that the increase of both the curing temperature and age were beneficial to the mechanical properties of CTB, the water-weakening effect affected the deformation process of CTB, and the peak strain (PS) of CTB increased with the increase of the curing temperature and decreased with the increase of the curing age. The energy difference (ek) curves of CTB under different curing conditions can be divided into four stages and correspond to the stress-strain curves. The weakening effect of water affects the rate of energy exchange of CTB, and the increase of curing temperature and age will enhance the energy absorption and transfer performance of CTB. The weakening effect of water slows down the rate of development of the slowly rising phase and the steadily rising phase of the dissipative energy curve, which is facilitated by the increase of the curing temperature, while the increase of the curing age leads to the rapid development of CTB dissipative energy curve in the rapidly rising phase. At lower curing temperatures and ages, the surface cracks of CTB were not prominent, and the “soft damage” effect was obvious. With the increase of temperatures and ages, the failure mode of CTB changed from shear damage to mixed tensile-shear damage. In this study, CTB with a solid content of 75% and a tailings-to-Portland cement ratio of 10:1 were prepared and subjected to immersion curing at 20, 35 and 50 °C for periods of 3, 7, 14, and 28 days. Following the curing process, unconfined compressive strength (UCS) tests and Brazilian splitting tensile strength tests were conducted at a constant loading rate of 0.5 mm/min.
