纳米MXene/纤维素膜在卤水和黑质中选择性提取锂的研究

IF 16 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
ACS Nano Pub Date : 2025-10-02 DOI:10.1021/acsnano.5c08653
Kou Yang, , , Qinyue Wang, , , Konstantin G. Nikolaev, , , Qian Wang, , , Ivan V. Moskalenko, , , Shanqing Zhang, , , Xueqing Qiu, , , Eduard O. Timashev, , , Ekaterina V. Skorb, , , Kostya S. Novoselov, , and , Daria V. Andreeva*,
{"title":"纳米MXene/纤维素膜在卤水和黑质中选择性提取锂的研究","authors":"Kou Yang,&nbsp;, ,&nbsp;Qinyue Wang,&nbsp;, ,&nbsp;Konstantin G. Nikolaev,&nbsp;, ,&nbsp;Qian Wang,&nbsp;, ,&nbsp;Ivan V. Moskalenko,&nbsp;, ,&nbsp;Shanqing Zhang,&nbsp;, ,&nbsp;Xueqing Qiu,&nbsp;, ,&nbsp;Eduard O. Timashev,&nbsp;, ,&nbsp;Ekaterina V. Skorb,&nbsp;, ,&nbsp;Kostya S. Novoselov,&nbsp;, and ,&nbsp;Daria V. Andreeva*,&nbsp;","doi":"10.1021/acsnano.5c08653","DOIUrl":null,"url":null,"abstract":"<p >A nanoconfined thermoresponsive membrane composed of Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene and hydroxypropyl cellulose (HPC) was developed for selective Li<sup>+</sup> extraction. By integrating the electrothermal conductivity of MXenes and hydration-responsive gating of HPC, the membrane forms heterochannels with tunable spacing that regulate ion transport through nanoconfinement-enhanced mechanisms based on interaction energy and hydration radius. While density functional theory calculations predicted stronger sorption for Mg<sup>2+</sup>, experimental data revealed a clear preference for Li<sup>+</sup> uptake from both simulated brine and battery black mass. This selectivity is attributed to favorable interactions of Li<sup>+</sup> within the nanoconfined composite channels, where the subnanometer interlayer spacings promote partial dehydration and size-sieving effects. Li<sup>+</sup> retention is governed not only by thermodynamic affinity but also by kinetic acceleration in nanoconfined pathways and hydration-based steric control. The membrane exhibits a reversible thermal response and maintains stable performance under Joule heating. It achieves &gt;90% extraction efficiency from simulated Atacama brine and up to 98% Li<sup>+</sup> recovery from black mass supplied by VGM Sustainability Solutions (SG3R, Pte. Ltd.).</p>","PeriodicalId":21,"journal":{"name":"ACS Nano","volume":"19 40","pages":"35483–35492"},"PeriodicalIF":16.0000,"publicationDate":"2025-10-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Nanoconfined MXene/Cellulose Membranes for Selective Lithium Extraction from Brines and Black Mass\",\"authors\":\"Kou Yang,&nbsp;, ,&nbsp;Qinyue Wang,&nbsp;, ,&nbsp;Konstantin G. Nikolaev,&nbsp;, ,&nbsp;Qian Wang,&nbsp;, ,&nbsp;Ivan V. Moskalenko,&nbsp;, ,&nbsp;Shanqing Zhang,&nbsp;, ,&nbsp;Xueqing Qiu,&nbsp;, ,&nbsp;Eduard O. Timashev,&nbsp;, ,&nbsp;Ekaterina V. Skorb,&nbsp;, ,&nbsp;Kostya S. Novoselov,&nbsp;, and ,&nbsp;Daria V. Andreeva*,&nbsp;\",\"doi\":\"10.1021/acsnano.5c08653\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >A nanoconfined thermoresponsive membrane composed of Ti<sub>3</sub>C<sub>2</sub>T<sub><i>x</i></sub> MXene and hydroxypropyl cellulose (HPC) was developed for selective Li<sup>+</sup> extraction. By integrating the electrothermal conductivity of MXenes and hydration-responsive gating of HPC, the membrane forms heterochannels with tunable spacing that regulate ion transport through nanoconfinement-enhanced mechanisms based on interaction energy and hydration radius. While density functional theory calculations predicted stronger sorption for Mg<sup>2+</sup>, experimental data revealed a clear preference for Li<sup>+</sup> uptake from both simulated brine and battery black mass. This selectivity is attributed to favorable interactions of Li<sup>+</sup> within the nanoconfined composite channels, where the subnanometer interlayer spacings promote partial dehydration and size-sieving effects. Li<sup>+</sup> retention is governed not only by thermodynamic affinity but also by kinetic acceleration in nanoconfined pathways and hydration-based steric control. The membrane exhibits a reversible thermal response and maintains stable performance under Joule heating. It achieves &gt;90% extraction efficiency from simulated Atacama brine and up to 98% Li<sup>+</sup> recovery from black mass supplied by VGM Sustainability Solutions (SG3R, Pte. Ltd.).</p>\",\"PeriodicalId\":21,\"journal\":{\"name\":\"ACS Nano\",\"volume\":\"19 40\",\"pages\":\"35483–35492\"},\"PeriodicalIF\":16.0000,\"publicationDate\":\"2025-10-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Nano\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsnano.5c08653\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Nano","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsnano.5c08653","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

制备了由Ti3C2Tx MXene和羟丙基纤维素(HPC)组成的纳米热响应膜,用于Li+的选择性提取。通过整合MXenes的电热导率和HPC的水化响应门控,膜形成具有可调间距的异质通道,通过基于相互作用能和水化半径的纳米约束增强机制调节离子运输。虽然密度泛函理论计算预测Mg2+的吸附更强,但实验数据显示,模拟盐水和电池黑质量都明显倾向于吸收Li+。这种选择性归因于Li+在纳米复合通道内的有利相互作用,其中亚纳米层间距促进了部分脱水和筛分效果。Li+的保留不仅受热力学亲和作用的影响,还受纳米受限路径的动力学加速和基于水的空间控制的影响。该膜表现出可逆的热响应,并在焦耳加热下保持稳定的性能。VGM Sustainability Solutions (SG3R, Pte Ltd.)提供的模拟Atacama盐水的萃取效率达到90%,黑色物质的Li+回收率高达98%。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Nanoconfined MXene/Cellulose Membranes for Selective Lithium Extraction from Brines and Black Mass

Nanoconfined MXene/Cellulose Membranes for Selective Lithium Extraction from Brines and Black Mass

Nanoconfined MXene/Cellulose Membranes for Selective Lithium Extraction from Brines and Black Mass

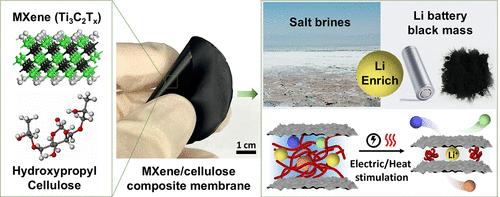

A nanoconfined thermoresponsive membrane composed of Ti3C2Tx MXene and hydroxypropyl cellulose (HPC) was developed for selective Li+ extraction. By integrating the electrothermal conductivity of MXenes and hydration-responsive gating of HPC, the membrane forms heterochannels with tunable spacing that regulate ion transport through nanoconfinement-enhanced mechanisms based on interaction energy and hydration radius. While density functional theory calculations predicted stronger sorption for Mg2+, experimental data revealed a clear preference for Li+ uptake from both simulated brine and battery black mass. This selectivity is attributed to favorable interactions of Li+ within the nanoconfined composite channels, where the subnanometer interlayer spacings promote partial dehydration and size-sieving effects. Li+ retention is governed not only by thermodynamic affinity but also by kinetic acceleration in nanoconfined pathways and hydration-based steric control. The membrane exhibits a reversible thermal response and maintains stable performance under Joule heating. It achieves >90% extraction efficiency from simulated Atacama brine and up to 98% Li+ recovery from black mass supplied by VGM Sustainability Solutions (SG3R, Pte. Ltd.).
