通过dtp调节和表面改性锥形七芯光纤传感器增强VOCs和湿度检测

IF 3.7 1区化学 Q1 CHEMISTRY, ANALYTICAL

Sensors and Actuators B: Chemical Pub Date : 2025-10-01 DOI:10.1016/j.snb.2025.138902

Wanlai Zhu, Guorui Zhou, Zao Yi, Hui You, Dongying Wang

{"title":"通过dtp调节和表面改性锥形七芯光纤传感器增强VOCs和湿度检测","authors":"Wanlai Zhu, Guorui Zhou, Zao Yi, Hui You, Dongying Wang","doi":"10.1016/j.snb.2025.138902","DOIUrl":null,"url":null,"abstract":"Fiber optic sensors exhibit unique advantages in environmental monitoring and biomedicine, yet conventional designs face limitations in detection limits and sensitivity. To overcome these challenges, a tapered seven core fiber (SCF) sensing system based on dispersion turning point (DTP) modulation and surface modification enhancement is innovatively proposed in this work. The wavelength sensitivity near the DTP approaches infinity, and the DTP can also serve as an intrinsic self-referencing point during sensing. In humidity (1-92%RH) sensing, the bare fiber achieved a wavelength sensitivity of 0.2025 nm/%RH and an intensity sensitivity of 0.086 dB/%RH near the DTP. In volatile organic compounds (VOCs) detection, silica sol-gel surface modification amplified the response to polar molecules by 2-4 times, enabling ppb-level pollutant sensing. Specifically, the maximum wavelength sensitivity for ethyl acetate exceeded 1094.2 pm/ppm. This study provides a novel integrated solution for the detection of low-concentration VOCs, offering broad application prospects.","PeriodicalId":425,"journal":{"name":"Sensors and Actuators B: Chemical","volume":"62 1","pages":""},"PeriodicalIF":3.7000,"publicationDate":"2025-10-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Enhanced VOCs and Humidity Detection via DTP-Regulated and Surface-Modified Tapered Seven-Core Fiber Sensors\",\"authors\":\"Wanlai Zhu, Guorui Zhou, Zao Yi, Hui You, Dongying Wang\",\"doi\":\"10.1016/j.snb.2025.138902\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Fiber optic sensors exhibit unique advantages in environmental monitoring and biomedicine, yet conventional designs face limitations in detection limits and sensitivity. To overcome these challenges, a tapered seven core fiber (SCF) sensing system based on dispersion turning point (DTP) modulation and surface modification enhancement is innovatively proposed in this work. The wavelength sensitivity near the DTP approaches infinity, and the DTP can also serve as an intrinsic self-referencing point during sensing. In humidity (1-92%RH) sensing, the bare fiber achieved a wavelength sensitivity of 0.2025 nm/%RH and an intensity sensitivity of 0.086 dB/%RH near the DTP. In volatile organic compounds (VOCs) detection, silica sol-gel surface modification amplified the response to polar molecules by 2-4 times, enabling ppb-level pollutant sensing. Specifically, the maximum wavelength sensitivity for ethyl acetate exceeded 1094.2 pm/ppm. This study provides a novel integrated solution for the detection of low-concentration VOCs, offering broad application prospects.\",\"PeriodicalId\":425,\"journal\":{\"name\":\"Sensors and Actuators B: Chemical\",\"volume\":\"62 1\",\"pages\":\"\"},\"PeriodicalIF\":3.7000,\"publicationDate\":\"2025-10-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Sensors and Actuators B: Chemical\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://doi.org/10.1016/j.snb.2025.138902\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, ANALYTICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Sensors and Actuators B: Chemical","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1016/j.snb.2025.138902","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, ANALYTICAL","Score":null,"Total":0}

引用次数: 0

摘要

光纤传感器在环境监测和生物医学领域具有独特的优势，但传统设计在检测限和灵敏度方面存在局限性。为了克服这些挑战，本文创新性地提出了一种基于色散拐点（DTP）调制和表面改性增强的锥形七芯光纤（SCF）传感系统。DTP附近的波长灵敏度接近无穷大，并且在传感过程中，DTP也可以作为一个固有的自参考点。在湿度（1-92%RH）传感中，光纤在DTP附近的波长灵敏度为0.2025 nm/%RH，强度灵敏度为0.086 dB/%RH。在挥发性有机化合物（VOCs）检测中，二氧化硅溶胶-凝胶表面修饰将对极性分子的响应放大了2-4倍，实现了ppb级污染物的检测。其中，乙酸乙酯的最大波长灵敏度超过1094.2 pm/ppm。本研究为低浓度VOCs的检测提供了一种新颖的集成解决方案，具有广阔的应用前景。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Enhanced VOCs and Humidity Detection via DTP-Regulated and Surface-Modified Tapered Seven-Core Fiber Sensors

查看原文本刊更多论文

Enhanced VOCs and Humidity Detection via DTP-Regulated and Surface-Modified Tapered Seven-Core Fiber Sensors

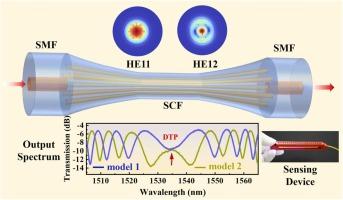

Fiber optic sensors exhibit unique advantages in environmental monitoring and biomedicine, yet conventional designs face limitations in detection limits and sensitivity. To overcome these challenges, a tapered seven core fiber (SCF) sensing system based on dispersion turning point (DTP) modulation and surface modification enhancement is innovatively proposed in this work. The wavelength sensitivity near the DTP approaches infinity, and the DTP can also serve as an intrinsic self-referencing point during sensing. In humidity (1-92%RH) sensing, the bare fiber achieved a wavelength sensitivity of 0.2025 nm/%RH and an intensity sensitivity of 0.086 dB/%RH near the DTP. In volatile organic compounds (VOCs) detection, silica sol-gel surface modification amplified the response to polar molecules by 2-4 times, enabling ppb-level pollutant sensing. Specifically, the maximum wavelength sensitivity for ethyl acetate exceeded 1094.2 pm/ppm. This study provides a novel integrated solution for the detection of low-concentration VOCs, offering broad application prospects.

求助全文

通过发布文献求助，成功后即可免费获取论文全文。去求助
