Heterogeneous Integration Technology Drives the Evolution of Co-Packaged Optics.

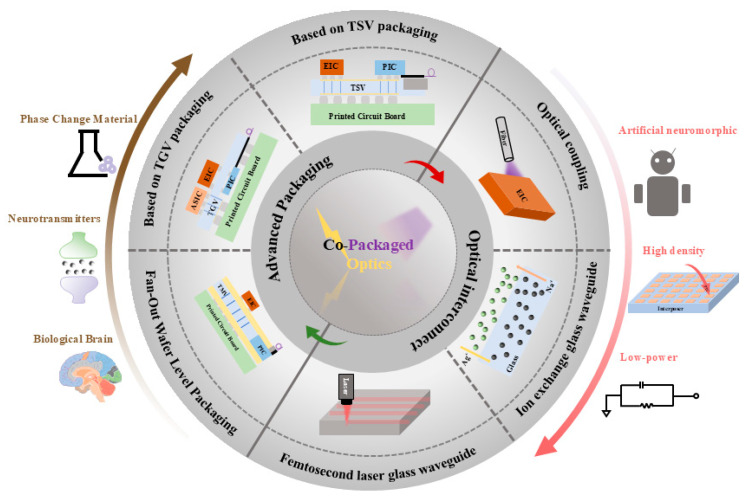

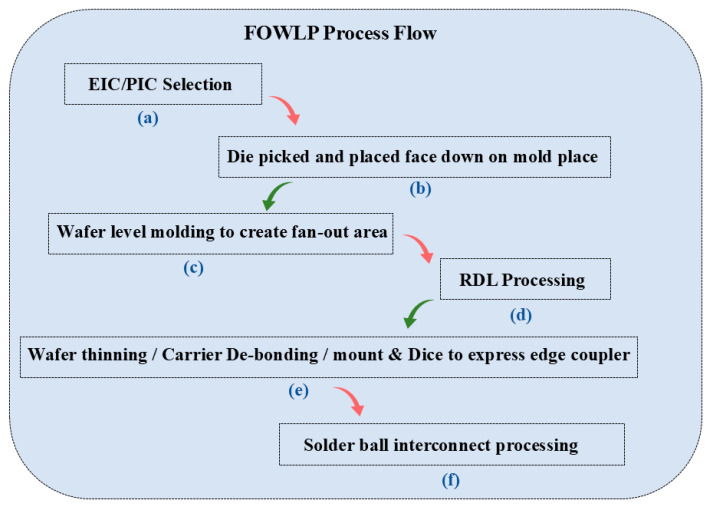

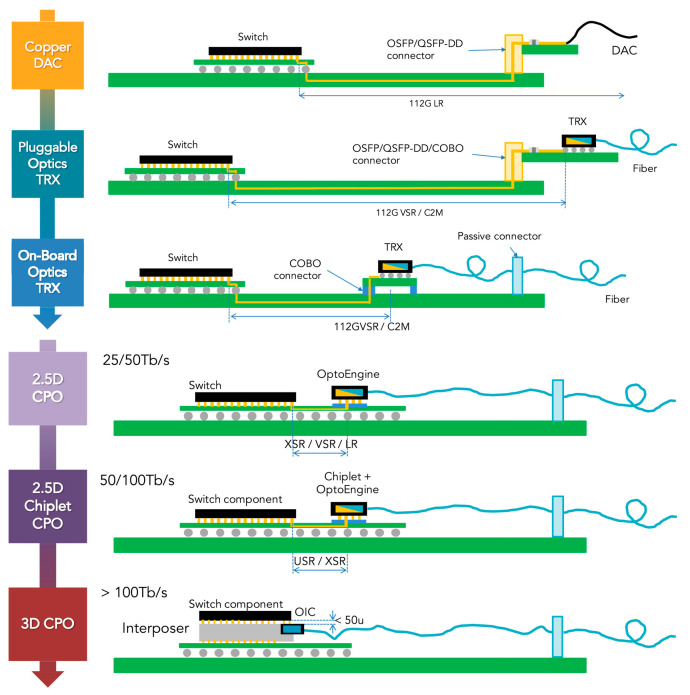

The rapid growth of artificial intelligence (AI), data centers, and high-performance computing (HPC) has increased the demand for large bandwidth, high energy efficiency, and high-density optical interconnects. Co-packaged optics (CPO) technology offers a promising solution by integrating photonic integrated circuits (PICs) directly within or close to electronic integrated circuit (EIC) packages. This paper explores the evolution of CPO performance from various perspectives, including fan-out wafer level packaging (FOWLP), through-silicon via (TSV)-based packaging, through-glass via (TGV)-based packaging, femtosecond laser direct writing waveguides, ion-exchange glass waveguides, and optical coupling. Micro ring resonators (MRRs) are a high-density integration solution due to their compact size, excellent energy efficiency, and compatibility with CMOS processes. However, traditional thermal tuning methods face limitations such as high static power consumption and severe thermal crosstalk. To address these issues, non-volatile neuromorphic photonics has made breakthroughs using phase-change materials (PCMs). By combining the integrated storage and computing capabilities of photonic memory with the efficient optoelectronic interconnects of CPO, this deep integration is expected to work synergistically to overcome material, integration, and architectural challenges, driving the development of a new generation of computing hardware with high energy efficiency, low latency, and large bandwidth.
