Farid Shabani, Julia Hylton, Ahmadreza Hedayat, Lori Tunstall, Juan Antonio Vega Gonzalez, Jorge Wilfredo Vera Alvarado, Martin Taboada Neira
{"title":"硫化矿尾矿作为辅助胶凝材料的机械活化研究","authors":"Farid Shabani, Julia Hylton, Ahmadreza Hedayat, Lori Tunstall, Juan Antonio Vega Gonzalez, Jorge Wilfredo Vera Alvarado, Martin Taboada Neira","doi":"10.1617/s11527-025-02730-w","DOIUrl":null,"url":null,"abstract":"<div><p>Mine tailings (MTs) are hazardous waste generated in large volumes and can pose serious environmental risks if not effectively managed. They are typically stored as slurry in ponds, behind tailings dams, or storage facilities. In sulfidic MTs, the high concentration of sulfide minerals makes them prone to acid mine drainage, infiltrating soil and groundwater. Recently, producing supplementary cementitious materials (SCMs) from MTs has been noted as an effective approach for utilizing mining waste while reducing the carbon footprint of concrete. This study assesses the influence of four milling methods, rotary ball mill, planetary ball mill, vibratory ball mill, and vibratory disc mill, on the reactivity of sulfidic MTs. The vibratory-disc-milled MTs revealed higher reactivity with a heat release of 162 J/g, as quantified using the modified R<sup>3</sup> test; this is likely due to their very fine particle size (d<sub>50</sub> = 9.8–14 μm)<i>.</i> Owing to the presence of pyrite in raw materials, its impact on the activity of MTs in cement-tailings mixes was examined, focusing on heat release, hydration, and strength development through morphological, chemical, mineralogical, and mechanical characterization. Furthermore, hyphenated TGA and FTIR was employed to accurately identify the decomposition temperature ranges of chemically bound water and other evolved gas, in specimens made with tailings-based SCMs. A 10% cement substitution with tailings-based SCMs resulted in mortars with the highest strength at early ages, achieving 41.5 MPa at 3 days, which surpassed the 33 MPa strength of the control specimens. Although strength reduction with higher SCM content likely stemmed from pyrite oxidation and the formation of a secondary ettringite phase, up to 30% substitution achieved the required strength activity index per ASTM C618, indicating their potential as suitable SCMs.</p></div>","PeriodicalId":691,"journal":{"name":"Materials and Structures","volume":"58 6","pages":""},"PeriodicalIF":3.9000,"publicationDate":"2025-07-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Mechanical activation of sulfidic mine tailings for use as supplementary cementitious materials\",\"authors\":\"Farid Shabani, Julia Hylton, Ahmadreza Hedayat, Lori Tunstall, Juan Antonio Vega Gonzalez, Jorge Wilfredo Vera Alvarado, Martin Taboada Neira\",\"doi\":\"10.1617/s11527-025-02730-w\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><p>Mine tailings (MTs) are hazardous waste generated in large volumes and can pose serious environmental risks if not effectively managed. They are typically stored as slurry in ponds, behind tailings dams, or storage facilities. In sulfidic MTs, the high concentration of sulfide minerals makes them prone to acid mine drainage, infiltrating soil and groundwater. Recently, producing supplementary cementitious materials (SCMs) from MTs has been noted as an effective approach for utilizing mining waste while reducing the carbon footprint of concrete. This study assesses the influence of four milling methods, rotary ball mill, planetary ball mill, vibratory ball mill, and vibratory disc mill, on the reactivity of sulfidic MTs. The vibratory-disc-milled MTs revealed higher reactivity with a heat release of 162 J/g, as quantified using the modified R<sup>3</sup> test; this is likely due to their very fine particle size (d<sub>50</sub> = 9.8–14 μm)<i>.</i> Owing to the presence of pyrite in raw materials, its impact on the activity of MTs in cement-tailings mixes was examined, focusing on heat release, hydration, and strength development through morphological, chemical, mineralogical, and mechanical characterization. Furthermore, hyphenated TGA and FTIR was employed to accurately identify the decomposition temperature ranges of chemically bound water and other evolved gas, in specimens made with tailings-based SCMs. A 10% cement substitution with tailings-based SCMs resulted in mortars with the highest strength at early ages, achieving 41.5 MPa at 3 days, which surpassed the 33 MPa strength of the control specimens. Although strength reduction with higher SCM content likely stemmed from pyrite oxidation and the formation of a secondary ettringite phase, up to 30% substitution achieved the required strength activity index per ASTM C618, indicating their potential as suitable SCMs.</p></div>\",\"PeriodicalId\":691,\"journal\":{\"name\":\"Materials and Structures\",\"volume\":\"58 6\",\"pages\":\"\"},\"PeriodicalIF\":3.9000,\"publicationDate\":\"2025-07-29\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Materials and Structures\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://link.springer.com/article/10.1617/s11527-025-02730-w\",\"RegionNum\":3,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CONSTRUCTION & BUILDING TECHNOLOGY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materials and Structures","FirstCategoryId":"5","ListUrlMain":"https://link.springer.com/article/10.1617/s11527-025-02730-w","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CONSTRUCTION & BUILDING TECHNOLOGY","Score":null,"Total":0}
Mechanical activation of sulfidic mine tailings for use as supplementary cementitious materials

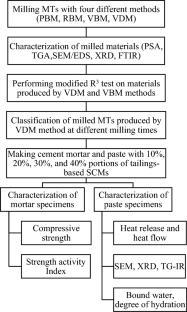

Mine tailings (MTs) are hazardous waste generated in large volumes and can pose serious environmental risks if not effectively managed. They are typically stored as slurry in ponds, behind tailings dams, or storage facilities. In sulfidic MTs, the high concentration of sulfide minerals makes them prone to acid mine drainage, infiltrating soil and groundwater. Recently, producing supplementary cementitious materials (SCMs) from MTs has been noted as an effective approach for utilizing mining waste while reducing the carbon footprint of concrete. This study assesses the influence of four milling methods, rotary ball mill, planetary ball mill, vibratory ball mill, and vibratory disc mill, on the reactivity of sulfidic MTs. The vibratory-disc-milled MTs revealed higher reactivity with a heat release of 162 J/g, as quantified using the modified R3 test; this is likely due to their very fine particle size (d50 = 9.8–14 μm). Owing to the presence of pyrite in raw materials, its impact on the activity of MTs in cement-tailings mixes was examined, focusing on heat release, hydration, and strength development through morphological, chemical, mineralogical, and mechanical characterization. Furthermore, hyphenated TGA and FTIR was employed to accurately identify the decomposition temperature ranges of chemically bound water and other evolved gas, in specimens made with tailings-based SCMs. A 10% cement substitution with tailings-based SCMs resulted in mortars with the highest strength at early ages, achieving 41.5 MPa at 3 days, which surpassed the 33 MPa strength of the control specimens. Although strength reduction with higher SCM content likely stemmed from pyrite oxidation and the formation of a secondary ettringite phase, up to 30% substitution achieved the required strength activity index per ASTM C618, indicating their potential as suitable SCMs.
期刊介绍:
Materials and Structures, the flagship publication of the International Union of Laboratories and Experts in Construction Materials, Systems and Structures (RILEM), provides a unique international and interdisciplinary forum for new research findings on the performance of construction materials. A leader in cutting-edge research, the journal is dedicated to the publication of high quality papers examining the fundamental properties of building materials, their characterization and processing techniques, modeling, standardization of test methods, and the application of research results in building and civil engineering. Materials and Structures also publishes comprehensive reports prepared by the RILEM’s technical committees.
