可持续制造应用中再生编织玄武岩纤维增强复合材料的机械性能

IF 2.9 4区 材料科学 Q3 MATERIALS SCIENCE, COMPOSITES
Mohamed Chairi, Elpida Piperopoulos, Guido Di Bella, Edoardo Proverbio
{"title":"可持续制造应用中再生编织玄武岩纤维增强复合材料的机械性能","authors":"Mohamed Chairi,&nbsp;Elpida Piperopoulos,&nbsp;Guido Di Bella,&nbsp;Edoardo Proverbio","doi":"10.1007/s10443-025-10332-6","DOIUrl":null,"url":null,"abstract":"<div><p>This study investigates the impact of basalt fiber recovery on the mechanical properties of basalt fiber-reinforced composite laminates via a thermal recycling process in air at 500 °C. Laminates were produced using a hand lay-up technique with six layers of bidirectionally woven basalt fibers and polyester resin. Thermal analyses (DSC and TGA) established that 500 °C is the optimal temperature for complete combustion of the polyester matrix, which is fully removed with minimal impact on the fiber surface. The energy released during resin combustion, measured using the Mahler-bomb method, was evaluated for potential reuse to improve energy efficiency in the recycling process. The basalt fibers exhibited exceptional thermal stability, showing only a 1.75% mass loss during the process. Recovered fibers retained their original continuous woven structure, enabling the fabrication of new laminates. Chemical and morphological assessments of the recycled basalt fibers via Fourier-transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), and scanning electron microscopy (SEM) confirmed minimal alterations in fiber properties. Mechanical testing using three-point bending revealed that the recycled laminates experienced a decrease in flexural strength and flexural modulus of approximately 10.39% and 4.51%, respectively, compared to virgin laminates. Furthermore, the failure mechanisms differed between the two systems: while virgin laminates failed through a combination of fiber breakage, matrix cracking, and interlayer delamination, the recycled laminates predominantly exhibited interfacial failure. As a result, these findings support the feasibility of recycling basalt fibers with minimal impact on mechanical performance, presenting a sustainable approach for composite material reuse.</p></div>","PeriodicalId":468,"journal":{"name":"Applied Composite Materials","volume":"32 4","pages":"1617 - 1638"},"PeriodicalIF":2.9000,"publicationDate":"2025-04-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Mechanical Performance of Recycled Woven Basalt Fiber-Reinforced Composites for Sustainable Manufacturing Applications\",\"authors\":\"Mohamed Chairi,&nbsp;Elpida Piperopoulos,&nbsp;Guido Di Bella,&nbsp;Edoardo Proverbio\",\"doi\":\"10.1007/s10443-025-10332-6\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><p>This study investigates the impact of basalt fiber recovery on the mechanical properties of basalt fiber-reinforced composite laminates via a thermal recycling process in air at 500 °C. Laminates were produced using a hand lay-up technique with six layers of bidirectionally woven basalt fibers and polyester resin. Thermal analyses (DSC and TGA) established that 500 °C is the optimal temperature for complete combustion of the polyester matrix, which is fully removed with minimal impact on the fiber surface. The energy released during resin combustion, measured using the Mahler-bomb method, was evaluated for potential reuse to improve energy efficiency in the recycling process. The basalt fibers exhibited exceptional thermal stability, showing only a 1.75% mass loss during the process. Recovered fibers retained their original continuous woven structure, enabling the fabrication of new laminates. Chemical and morphological assessments of the recycled basalt fibers via Fourier-transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), and scanning electron microscopy (SEM) confirmed minimal alterations in fiber properties. Mechanical testing using three-point bending revealed that the recycled laminates experienced a decrease in flexural strength and flexural modulus of approximately 10.39% and 4.51%, respectively, compared to virgin laminates. Furthermore, the failure mechanisms differed between the two systems: while virgin laminates failed through a combination of fiber breakage, matrix cracking, and interlayer delamination, the recycled laminates predominantly exhibited interfacial failure. As a result, these findings support the feasibility of recycling basalt fibers with minimal impact on mechanical performance, presenting a sustainable approach for composite material reuse.</p></div>\",\"PeriodicalId\":468,\"journal\":{\"name\":\"Applied Composite Materials\",\"volume\":\"32 4\",\"pages\":\"1617 - 1638\"},\"PeriodicalIF\":2.9000,\"publicationDate\":\"2025-04-08\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Applied Composite Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://link.springer.com/article/10.1007/s10443-025-10332-6\",\"RegionNum\":4,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q3\",\"JCRName\":\"MATERIALS SCIENCE, COMPOSITES\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Applied Composite Materials","FirstCategoryId":"88","ListUrlMain":"https://link.springer.com/article/10.1007/s10443-025-10332-6","RegionNum":4,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"MATERIALS SCIENCE, COMPOSITES","Score":null,"Total":0}
引用次数: 0

摘要

本研究通过500℃空气热回收工艺研究玄武岩纤维回收对玄武岩纤维增强复合材料层合板力学性能的影响。层压板是用六层双向编织玄武岩纤维和聚酯树脂的手工铺层技术生产的。热分析(DSC和TGA)确定500°C是聚酯基体完全燃烧的最佳温度,在对纤维表面影响最小的情况下完全去除。利用马勒弹法测量树脂燃烧过程中释放的能量,评估其再利用潜力,以提高回收过程中的能源效率。玄武岩纤维表现出优异的热稳定性,在此过程中质量损失仅为1.75%。回收的纤维保留了原有的连续编织结构,从而可以制造新的层压板。通过傅里叶变换红外光谱(FTIR)、x射线衍射(XRD)和扫描电子显微镜(SEM)对回收玄武岩纤维进行化学和形态评估,证实纤维性能几乎没有变化。三点弯曲力学测试表明,与原始层压板相比,回收后的层压板的抗弯强度和抗弯模量分别下降了约10.39%和4.51%。此外,两种系统之间的破坏机制不同:原始层压板的破坏主要是由于纤维断裂、基体开裂和层间分层,而回收层压板主要表现为界面破坏。因此,这些发现支持了回收玄武岩纤维的可行性,同时对机械性能的影响最小,为复合材料的再利用提供了一种可持续的方法。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Mechanical Performance of Recycled Woven Basalt Fiber-Reinforced Composites for Sustainable Manufacturing Applications

Mechanical Performance of Recycled Woven Basalt Fiber-Reinforced Composites for Sustainable Manufacturing Applications

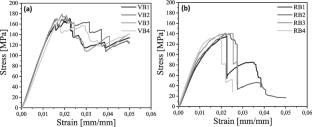

This study investigates the impact of basalt fiber recovery on the mechanical properties of basalt fiber-reinforced composite laminates via a thermal recycling process in air at 500 °C. Laminates were produced using a hand lay-up technique with six layers of bidirectionally woven basalt fibers and polyester resin. Thermal analyses (DSC and TGA) established that 500 °C is the optimal temperature for complete combustion of the polyester matrix, which is fully removed with minimal impact on the fiber surface. The energy released during resin combustion, measured using the Mahler-bomb method, was evaluated for potential reuse to improve energy efficiency in the recycling process. The basalt fibers exhibited exceptional thermal stability, showing only a 1.75% mass loss during the process. Recovered fibers retained their original continuous woven structure, enabling the fabrication of new laminates. Chemical and morphological assessments of the recycled basalt fibers via Fourier-transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), and scanning electron microscopy (SEM) confirmed minimal alterations in fiber properties. Mechanical testing using three-point bending revealed that the recycled laminates experienced a decrease in flexural strength and flexural modulus of approximately 10.39% and 4.51%, respectively, compared to virgin laminates. Furthermore, the failure mechanisms differed between the two systems: while virgin laminates failed through a combination of fiber breakage, matrix cracking, and interlayer delamination, the recycled laminates predominantly exhibited interfacial failure. As a result, these findings support the feasibility of recycling basalt fibers with minimal impact on mechanical performance, presenting a sustainable approach for composite material reuse.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Applied Composite Materials
Applied Composite Materials 工程技术-材料科学:复合
CiteScore
4.20
自引率
4.30%
发文量
81
审稿时长
1.6 months
期刊介绍: Applied Composite Materials is an international journal dedicated to the publication of original full-length papers, review articles and short communications of the highest quality that advance the development and application of engineering composite materials. Its articles identify problems that limit the performance and reliability of the composite material and composite part; and propose solutions that lead to innovation in design and the successful exploitation and commercialization of composite materials across the widest spectrum of engineering uses. The main focus is on the quantitative descriptions of material systems and processing routes. Coverage includes management of time-dependent changes in microscopic and macroscopic structure and its exploitation from the material''s conception through to its eventual obsolescence.
×
