Resolution in Two-Photon Imaging: A Local Manifestation of Entanglement

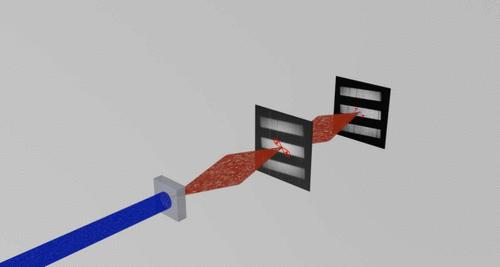

The resolution of a classical imaging system is limited by diffraction. This limit can be overcome, for example, by implementing various forms of localization microscopy in which the center of a fluorescence distribution is estimated to an accuracy scaling with the square root of the number of detected photons, $\sqrt{N}$. In quantum imaging the object can be illuminated using correlated photon-pairs, leading early work to suggest that a $\sqrt{2}$ improvement could be obtained as a result of averaging the position of N = 2 events. However, similar to quantum lithography, which relies upon quantum illumination using entangled photon-pairs and two-photon absorption, the minimum resolvable feature size is reduced by a factor of 2, not just $\sqrt{2}$. Quantum imaging schemes can also lead to a factor of 2 improvement. By using a similar source of correlated photon-pairs to illuminate an object, a single-photon sensitive camera to detect the photon-pairs, and an image processing algorithm to record and sum the bisector positions of the transmitted photon-pairs, we realize a similar factor of ×2 improvement in image resolution, surpassing that of most earlier quantum imaging work.
