玻璃状有机点显示近红外TADF,量子产率bb40 %,用于细胞成像。

IF 6.1 3区 医学 Q1 MATERIALS SCIENCE, BIOMATERIALS
Xujun Qiu, André Jung, Angelica Sevilla-Pym, Peiqi Hu, Stefan Bräse and Zachary M. Hudson
{"title":"玻璃状有机点显示近红外TADF,量子产率bb40 %,用于细胞成像。","authors":"Xujun Qiu, André Jung, Angelica Sevilla-Pym, Peiqi Hu, Stefan Bräse and Zachary M. Hudson","doi":"10.1039/D5TB01740H","DOIUrl":null,"url":null,"abstract":"<p >Near-infrared (NIR) thermally activated delayed fluorescence (TADF) imaging integrates the benefits of both NIR emission and TADF mechanisms, offering enhanced sensitivity and deeper tissue penetration while enabling time-resolved imaging for biological and medical applications. In this study, we synthesized and studied a donor–acceptor (D–A) type TADF emitter, 7,8-bis(4-(di([1,1'-biphenyl]-4-yl)amino)phenyl)phenazine-2,3-dicarbonitrile (<strong>DPPZ</strong>), which exhibits strong NIR fluorescence. The photophysical properties of <strong>DPPZ</strong> were characterized in both toluene and poly(methyl methacrylate) (PMMA) films. In degassed toluene, <strong>DPPZ</strong> displayed a maximum emission peak at 724 nm with a high photoluminescence quantum yield (<em>Φ</em><small><sub>PL</sub></small>) of 54.4%, while maintaining a <em>Φ</em><small><sub>PL</sub></small> of 43.9% in PMMA film under aerated conditions. Upon encapsulation into glassy organic dots (g-Odots), the emitter retained its NIR emission, a <em>Φ</em><small><sub>PL</sub></small> of 40.1%, and a notably long delayed lifetime (<em>τ</em><small><sub>d</sub></small>) of up to 225.5 μs. These NIR-emissive g-Odots were subsequently applied for lysosome-targeted bioimaging in HeLa cells, demonstrating their potential as effective probes for subcellular imaging.</p>","PeriodicalId":83,"journal":{"name":"Journal of Materials Chemistry B","volume":" 41","pages":" 13282-13288"},"PeriodicalIF":6.1000,"publicationDate":"2025-09-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Glassy organic dots exhibiting near-infrared TADF with quantum yields >40% for cellular imaging\",\"authors\":\"Xujun Qiu, André Jung, Angelica Sevilla-Pym, Peiqi Hu, Stefan Bräse and Zachary M. Hudson\",\"doi\":\"10.1039/D5TB01740H\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Near-infrared (NIR) thermally activated delayed fluorescence (TADF) imaging integrates the benefits of both NIR emission and TADF mechanisms, offering enhanced sensitivity and deeper tissue penetration while enabling time-resolved imaging for biological and medical applications. In this study, we synthesized and studied a donor–acceptor (D–A) type TADF emitter, 7,8-bis(4-(di([1,1'-biphenyl]-4-yl)amino)phenyl)phenazine-2,3-dicarbonitrile (<strong>DPPZ</strong>), which exhibits strong NIR fluorescence. The photophysical properties of <strong>DPPZ</strong> were characterized in both toluene and poly(methyl methacrylate) (PMMA) films. In degassed toluene, <strong>DPPZ</strong> displayed a maximum emission peak at 724 nm with a high photoluminescence quantum yield (<em>Φ</em><small><sub>PL</sub></small>) of 54.4%, while maintaining a <em>Φ</em><small><sub>PL</sub></small> of 43.9% in PMMA film under aerated conditions. Upon encapsulation into glassy organic dots (g-Odots), the emitter retained its NIR emission, a <em>Φ</em><small><sub>PL</sub></small> of 40.1%, and a notably long delayed lifetime (<em>τ</em><small><sub>d</sub></small>) of up to 225.5 μs. These NIR-emissive g-Odots were subsequently applied for lysosome-targeted bioimaging in HeLa cells, demonstrating their potential as effective probes for subcellular imaging.</p>\",\"PeriodicalId\":83,\"journal\":{\"name\":\"Journal of Materials Chemistry B\",\"volume\":\" 41\",\"pages\":\" 13282-13288\"},\"PeriodicalIF\":6.1000,\"publicationDate\":\"2025-09-26\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Materials Chemistry B\",\"FirstCategoryId\":\"1\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/tb/d5tb01740h\",\"RegionNum\":3,\"RegionCategory\":\"医学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, BIOMATERIALS\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Chemistry B","FirstCategoryId":"1","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/tb/d5tb01740h","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, BIOMATERIALS","Score":null,"Total":0}
引用次数: 0

摘要

近红外(NIR)热激活延迟荧光(TADF)成像集成了近红外发射和TADF机制的优点,提供了更高的灵敏度和更深的组织穿透,同时为生物和医学应用提供了时间分辨成像。在本研究中,我们合成并研究了一个供体-受体(D-A)型TADF发射器7,8-二(4-(二([1,1'-联苯]-4-基)氨基)苯基)吩嗪-2,3-二碳腈(DPPZ),它具有较强的近红外荧光。对DPPZ在甲苯和聚甲基丙烯酸甲酯(PMMA)薄膜中的光物理性质进行了表征。在脱气甲苯中,DPPZ在724 nm处显示出最大发射峰,光致发光量子产率(ΦPL)高达54.4%,而在曝气条件下PMMA薄膜中,DPPZ的光致发光量子产率(ΦPL)保持在43.9%。在封装成玻璃状有机点(g-Odots)后,发射极保持了40.1%的近红外发射率(ΦPL)和225.5 μs的延迟寿命(τd)。这些nir发射的g-Odots随后被应用于HeLa细胞的溶酶体靶向生物成像,证明了它们作为亚细胞成像有效探针的潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Glassy organic dots exhibiting near-infrared TADF with quantum yields >40% for cellular imaging

Glassy organic dots exhibiting near-infrared TADF with quantum yields >40% for cellular imaging

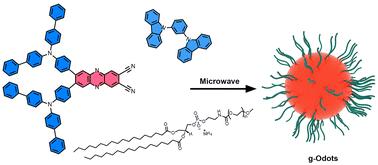

Near-infrared (NIR) thermally activated delayed fluorescence (TADF) imaging integrates the benefits of both NIR emission and TADF mechanisms, offering enhanced sensitivity and deeper tissue penetration while enabling time-resolved imaging for biological and medical applications. In this study, we synthesized and studied a donor–acceptor (D–A) type TADF emitter, 7,8-bis(4-(di([1,1'-biphenyl]-4-yl)amino)phenyl)phenazine-2,3-dicarbonitrile (DPPZ), which exhibits strong NIR fluorescence. The photophysical properties of DPPZ were characterized in both toluene and poly(methyl methacrylate) (PMMA) films. In degassed toluene, DPPZ displayed a maximum emission peak at 724 nm with a high photoluminescence quantum yield (ΦPL) of 54.4%, while maintaining a ΦPL of 43.9% in PMMA film under aerated conditions. Upon encapsulation into glassy organic dots (g-Odots), the emitter retained its NIR emission, a ΦPL of 40.1%, and a notably long delayed lifetime (τd) of up to 225.5 μs. These NIR-emissive g-Odots were subsequently applied for lysosome-targeted bioimaging in HeLa cells, demonstrating their potential as effective probes for subcellular imaging.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Journal of Materials Chemistry B
Journal of Materials Chemistry B MATERIALS SCIENCE, BIOMATERIALS-
CiteScore
11.50
自引率
4.30%
发文量
866
期刊介绍: Journal of Materials Chemistry A, B & C cover high quality studies across all fields of materials chemistry. The journals focus on those theoretical or experimental studies that report new understanding, applications, properties and synthesis of materials. Journal of Materials Chemistry A, B & C are separated by the intended application of the material studied. Broadly, applications in energy and sustainability are of interest to Journal of Materials Chemistry A, applications in biology and medicine are of interest to Journal of Materials Chemistry B, and applications in optical, magnetic and electronic devices are of interest to Journal of Materials Chemistry C.Journal of Materials Chemistry B is a Transformative Journal and Plan S compliant. Example topic areas within the scope of Journal of Materials Chemistry B are listed below. This list is neither exhaustive nor exclusive: Antifouling coatings Biocompatible materials Bioelectronics Bioimaging Biomimetics Biomineralisation Bionics Biosensors Diagnostics Drug delivery Gene delivery Immunobiology Nanomedicine Regenerative medicine & Tissue engineering Scaffolds Soft robotics Stem cells Therapeutic devices
×
