Markerless Force Estimation via SuperPoint-SIFT Fusion and Finite Element Analysis: A Sensorless Solution for Deformable Object Manipulation.

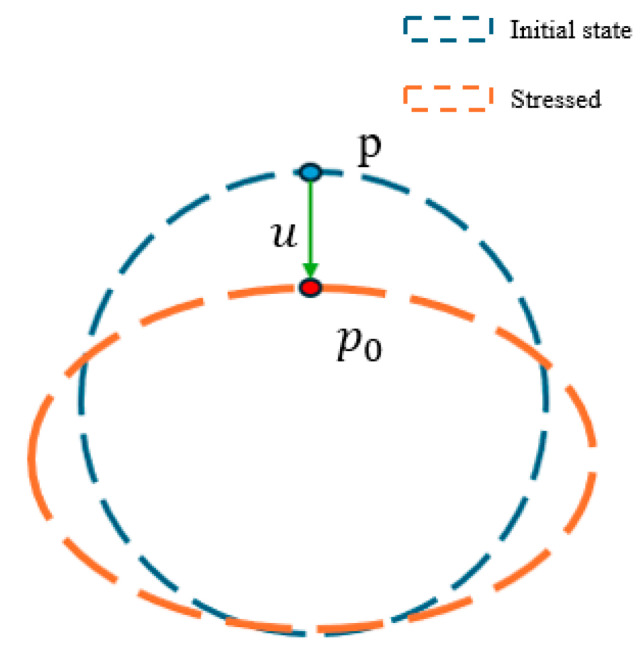

Contact-force perception is a critical component of safe robotic grasping. With the rapid advances in embodied intelligence technology, humanoid robots have enhanced their multimodal perception capabilities. Conventional force sensors face limitations, such as complex spatial arrangements, installation challenges at multiple nodes, and potential interference with robotic flexibility. Consequently, these conventional sensors are unsuitable for biomimetic robot requirements in object perception, natural interaction, and agile movement. Therefore, this study proposes a sensorless external force detection method that integrates SuperPoint-Scale Invariant Feature Transform (SIFT) feature extraction with finite element analysis to address force perception challenges. A visual analysis method based on the SuperPoint-SIFT feature fusion algorithm was implemented to reconstruct a three-dimensional displacement field of the target object. Subsequently, the displacement field was mapped to the contact force distribution using finite element modeling. Experimental results demonstrate a mean force estimation error of 7.60% (isotropic) and 8.15% (anisotropic), with RMSE < 8%, validated by flexible pressure sensors. To enhance the model's reliability, a dual-channel video comparison framework was developed. By analyzing the consistency of the deformation patterns and mechanical responses between the actual compression and finite element simulation video keyframes, the proposed approach provides a novel solution for real-time force perception in robotic interactions. The proposed solution is suitable for applications such as precision assembly and medical robotics, where sensorless force feedback is crucial.
