提高页岩油采收率的活性纳米流体:协同渗吸和多尺度孔隙进入

IF 5.3 3区 工程技术 Q2 ENERGY & FUELS
Zixuan Wang, , , Mingwei Gao*, , , Lianbao Yuan, , , Na Zhao, , , Liangfei Xiao, , , Hao Zheng, , , Yizheng Zhang, , , Yiming Zhang, , and , Caili Dai*,
{"title":"提高页岩油采收率的活性纳米流体:协同渗吸和多尺度孔隙进入","authors":"Zixuan Wang,&nbsp;, ,&nbsp;Mingwei Gao*,&nbsp;, ,&nbsp;Lianbao Yuan,&nbsp;, ,&nbsp;Na Zhao,&nbsp;, ,&nbsp;Liangfei Xiao,&nbsp;, ,&nbsp;Hao Zheng,&nbsp;, ,&nbsp;Yizheng Zhang,&nbsp;, ,&nbsp;Yiming Zhang,&nbsp;, and ,&nbsp;Caili Dai*,&nbsp;","doi":"10.1021/acs.energyfuels.5c03641","DOIUrl":null,"url":null,"abstract":"<p >Shale oil development faces challenges such as rapid production decline and high-cost formation damage caused by refracturing. To address these issues, this study proposes an active silica-based nanofluid with a total concentration of 0.12 wt % (0.045 wt % nanoparticles and 0.075 wt % AES surfactant). Dynamic light scattering (DLS) analysis demonstrates that the nanofluid exhibits excellent stability under high-temperature and high-salinity conditions (90 °C, salinity of 1.0 × 10<sup>5</sup> mg/L), maintaining an average hydrodynamic diameter of approximately 22 nm, which is significantly smaller than that of the unmodified system (30 nm). Interfacial tension (IFT) measurements revealed a stable IFT of 0.358 mN/m at a concentration of 0.3 wt %, while dynamic contact angle tests confirmed its strong wettability alteration capability. Spontaneous imbibition experiments revealed enhanced oil recovery, with increases of 23.8 and 10.62% compared to simulated formation water (SF water) and AES alone, respectively. Additionally, results indicated that higher core permeability facilitated easier oil–water extraction, while oil saturation primarily influenced oil–water displacement through the starting pressure gradient. A multiscale pore classification model was established by integrating nuclear magnetic resonance (NMR), mercury intrusion porosimetry (MIP), and nitrogen adsorption analysis, enabling the quantification of oil contributions from different pore size ranges: micropores (&lt;0.07 μm) contributed 50.94%, macropores (&gt;3.67 μm) 28.92%, and mesopores (0.07–3.67 μm) 20.15%. These results demonstrate its crucial role in overall oil recovery during shale imbibition. Finally, the mechanism behind enhanced recovery was elucidated through synergistic wettability alteration and capillary displacement equations. This work presents a cost-effective nanofluid formulation and a multiscale pore analysis methodology, providing practical approaches and theoretical insights for enhancing shale oil recovery.</p>","PeriodicalId":35,"journal":{"name":"Energy & Fuels","volume":"39 38","pages":"18491–18502"},"PeriodicalIF":5.3000,"publicationDate":"2025-09-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Active Nanofluids for Enhanced Shale Oil Recovery: Synergistic Imbibition and Multiscale Pore Access\",\"authors\":\"Zixuan Wang,&nbsp;, ,&nbsp;Mingwei Gao*,&nbsp;, ,&nbsp;Lianbao Yuan,&nbsp;, ,&nbsp;Na Zhao,&nbsp;, ,&nbsp;Liangfei Xiao,&nbsp;, ,&nbsp;Hao Zheng,&nbsp;, ,&nbsp;Yizheng Zhang,&nbsp;, ,&nbsp;Yiming Zhang,&nbsp;, and ,&nbsp;Caili Dai*,&nbsp;\",\"doi\":\"10.1021/acs.energyfuels.5c03641\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Shale oil development faces challenges such as rapid production decline and high-cost formation damage caused by refracturing. To address these issues, this study proposes an active silica-based nanofluid with a total concentration of 0.12 wt % (0.045 wt % nanoparticles and 0.075 wt % AES surfactant). Dynamic light scattering (DLS) analysis demonstrates that the nanofluid exhibits excellent stability under high-temperature and high-salinity conditions (90 °C, salinity of 1.0 × 10<sup>5</sup> mg/L), maintaining an average hydrodynamic diameter of approximately 22 nm, which is significantly smaller than that of the unmodified system (30 nm). Interfacial tension (IFT) measurements revealed a stable IFT of 0.358 mN/m at a concentration of 0.3 wt %, while dynamic contact angle tests confirmed its strong wettability alteration capability. Spontaneous imbibition experiments revealed enhanced oil recovery, with increases of 23.8 and 10.62% compared to simulated formation water (SF water) and AES alone, respectively. Additionally, results indicated that higher core permeability facilitated easier oil–water extraction, while oil saturation primarily influenced oil–water displacement through the starting pressure gradient. A multiscale pore classification model was established by integrating nuclear magnetic resonance (NMR), mercury intrusion porosimetry (MIP), and nitrogen adsorption analysis, enabling the quantification of oil contributions from different pore size ranges: micropores (&lt;0.07 μm) contributed 50.94%, macropores (&gt;3.67 μm) 28.92%, and mesopores (0.07–3.67 μm) 20.15%. These results demonstrate its crucial role in overall oil recovery during shale imbibition. Finally, the mechanism behind enhanced recovery was elucidated through synergistic wettability alteration and capillary displacement equations. This work presents a cost-effective nanofluid formulation and a multiscale pore analysis methodology, providing practical approaches and theoretical insights for enhancing shale oil recovery.</p>\",\"PeriodicalId\":35,\"journal\":{\"name\":\"Energy & Fuels\",\"volume\":\"39 38\",\"pages\":\"18491–18502\"},\"PeriodicalIF\":5.3000,\"publicationDate\":\"2025-09-16\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Fuels\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.energyfuels.5c03641\",\"RegionNum\":3,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"ENERGY & FUELS\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Fuels","FirstCategoryId":"5","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.energyfuels.5c03641","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENERGY & FUELS","Score":null,"Total":0}
引用次数: 0

摘要

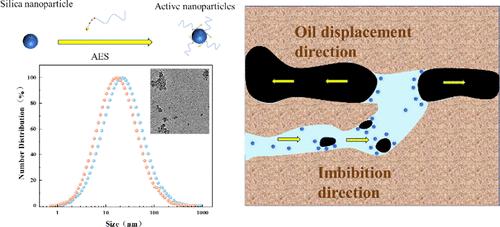

页岩油开发面临着产量快速下降和重复压裂造成的高成本地层破坏等挑战。为了解决这些问题,本研究提出了一种活性硅基纳米流体,其总浓度为0.12 wt % (0.045 wt %纳米颗粒和0.075 wt % AES表面活性剂)。动态光散射(DLS)分析表明,纳米流体在高温和高盐度条件下(90°C,盐度1.0 × 105 mg/L)表现出优异的稳定性,平均水动力直径约为22 nm,明显小于未改性体系(30 nm)。界面张力(IFT)测试表明,在浓度为0.3 wt %时,IFT稳定为0.358 mN/m,而动态接触角测试证实了其较强的润湿性改变能力。自发渗吸实验表明,与单独模拟地层水(SF水)和AES相比,自发渗吸实验的采收率分别提高了23.8%和10.62%。岩心渗透率越高,油水萃取越容易,含油饱和度主要通过启动压力梯度影响油水驱替。通过核磁共振(NMR)、压汞法(MIP)和氮吸附分析相结合,建立了多尺度孔隙分类模型,实现了不同孔径范围的油贡献定量:微孔(<0.07 μm)占50.94%,大孔(>3.67 μm)占28.92%,中孔(0.07 ~ 3.67 μm)占20.15%。这些结果表明,在页岩渗吸过程中,它对整体采收率至关重要。最后,通过协同润湿性改变和毛细管位移方程,阐明了提高采收率的机理。这项工作提出了一种具有成本效益的纳米流体配方和多尺度孔隙分析方法,为提高页岩油采收率提供了实践方法和理论见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Active Nanofluids for Enhanced Shale Oil Recovery: Synergistic Imbibition and Multiscale Pore Access

Active Nanofluids for Enhanced Shale Oil Recovery: Synergistic Imbibition and Multiscale Pore Access

Shale oil development faces challenges such as rapid production decline and high-cost formation damage caused by refracturing. To address these issues, this study proposes an active silica-based nanofluid with a total concentration of 0.12 wt % (0.045 wt % nanoparticles and 0.075 wt % AES surfactant). Dynamic light scattering (DLS) analysis demonstrates that the nanofluid exhibits excellent stability under high-temperature and high-salinity conditions (90 °C, salinity of 1.0 × 105 mg/L), maintaining an average hydrodynamic diameter of approximately 22 nm, which is significantly smaller than that of the unmodified system (30 nm). Interfacial tension (IFT) measurements revealed a stable IFT of 0.358 mN/m at a concentration of 0.3 wt %, while dynamic contact angle tests confirmed its strong wettability alteration capability. Spontaneous imbibition experiments revealed enhanced oil recovery, with increases of 23.8 and 10.62% compared to simulated formation water (SF water) and AES alone, respectively. Additionally, results indicated that higher core permeability facilitated easier oil–water extraction, while oil saturation primarily influenced oil–water displacement through the starting pressure gradient. A multiscale pore classification model was established by integrating nuclear magnetic resonance (NMR), mercury intrusion porosimetry (MIP), and nitrogen adsorption analysis, enabling the quantification of oil contributions from different pore size ranges: micropores (<0.07 μm) contributed 50.94%, macropores (>3.67 μm) 28.92%, and mesopores (0.07–3.67 μm) 20.15%. These results demonstrate its crucial role in overall oil recovery during shale imbibition. Finally, the mechanism behind enhanced recovery was elucidated through synergistic wettability alteration and capillary displacement equations. This work presents a cost-effective nanofluid formulation and a multiscale pore analysis methodology, providing practical approaches and theoretical insights for enhancing shale oil recovery.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Energy & Fuels
Energy & Fuels 工程技术-工程:化工
CiteScore
9.20
自引率
13.20%
发文量
1101
审稿时长
2.1 months
期刊介绍: Energy & Fuels publishes reports of research in the technical area defined by the intersection of the disciplines of chemistry and chemical engineering and the application domain of non-nuclear energy and fuels. This includes research directed at the formation of, exploration for, and production of fossil fuels and biomass; the properties and structure or molecular composition of both raw fuels and refined products; the chemistry involved in the processing and utilization of fuels; fuel cells and their applications; and the analytical and instrumental techniques used in investigations of the foregoing areas.
×
