使用定制的机器学习智能筛选mof中的储氢能力

Deepu Kumar Jha
{"title":"使用定制的机器学习智能筛选mof中的储氢能力","authors":"Deepu Kumar Jha","doi":"10.1016/j.nxener.2025.100431","DOIUrl":null,"url":null,"abstract":"<div><div>Metal-organic frameworks (MOFs) have emerged as promising candidates for solid-state hydrogen storage owing to their exceptional specific surface area, high pore volume, and chemically tunable structural properties. In this work, a diverse set of experimentally synthesized MOFs were evaluated to model and predict hydrogen storage capacity (wt%), using 4 key descriptors which are Brunauer–Emmett–Teller (BET) surface area, pore volume, operating pressure, and temperature. Correlation analysis revealed positive associations between BET surface area, pressure, and pore volume with storage capacity, and a negative association with temperature, consistent with physisorption mechanism. Six machine learning models were developed: support vector regression (SVR), artificial neural networks (ANN), random forest (RF), Gaussian process regression (GPR), gradient boosting (GB), and a Committee of Expert Systems (CES) integrating all base learners. While GB was the top-performing standalone model, the CES delivered the highest predictive fidelity (R<sup>2</sup> = 0.9958, MSE = 0.0094), as confirmed by parity plots and residual analysis. SHapley Additive exPlanations (SHAP) corroborated the statistical feature rankings, consistently identifying BET surface area and pressure as the most influential positive contributors in alignment with adsorption thermodynamics. Paired <em>t</em>-tests on root-mean-square error (RMSE) values confirmed statistically significant CES improvements over all individual models. The CES framework thus offers a data-efficient, accurate, and interpretable approach for rapid MOF screening, with straightforward adaptability to other porous materials and adsorption-based energy storage systems.</div></div>","PeriodicalId":100957,"journal":{"name":"Next Energy","volume":"9 ","pages":"Article 100431"},"PeriodicalIF":0.0000,"publicationDate":"2025-09-22","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Smart screening of hydrogen storage capacities in MOFs using a tailored machine learning\",\"authors\":\"Deepu Kumar Jha\",\"doi\":\"10.1016/j.nxener.2025.100431\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Metal-organic frameworks (MOFs) have emerged as promising candidates for solid-state hydrogen storage owing to their exceptional specific surface area, high pore volume, and chemically tunable structural properties. In this work, a diverse set of experimentally synthesized MOFs were evaluated to model and predict hydrogen storage capacity (wt%), using 4 key descriptors which are Brunauer–Emmett–Teller (BET) surface area, pore volume, operating pressure, and temperature. Correlation analysis revealed positive associations between BET surface area, pressure, and pore volume with storage capacity, and a negative association with temperature, consistent with physisorption mechanism. Six machine learning models were developed: support vector regression (SVR), artificial neural networks (ANN), random forest (RF), Gaussian process regression (GPR), gradient boosting (GB), and a Committee of Expert Systems (CES) integrating all base learners. While GB was the top-performing standalone model, the CES delivered the highest predictive fidelity (R<sup>2</sup> = 0.9958, MSE = 0.0094), as confirmed by parity plots and residual analysis. SHapley Additive exPlanations (SHAP) corroborated the statistical feature rankings, consistently identifying BET surface area and pressure as the most influential positive contributors in alignment with adsorption thermodynamics. Paired <em>t</em>-tests on root-mean-square error (RMSE) values confirmed statistically significant CES improvements over all individual models. The CES framework thus offers a data-efficient, accurate, and interpretable approach for rapid MOF screening, with straightforward adaptability to other porous materials and adsorption-based energy storage systems.</div></div>\",\"PeriodicalId\":100957,\"journal\":{\"name\":\"Next Energy\",\"volume\":\"9 \",\"pages\":\"Article 100431\"},\"PeriodicalIF\":0.0000,\"publicationDate\":\"2025-09-22\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Next Energy\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S2949821X25001942\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"\",\"JCRName\":\"\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Next Energy","FirstCategoryId":"1085","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S2949821X25001942","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"","JCRName":"","Score":null,"Total":0}
引用次数: 0

摘要

金属有机骨架(mof)由于其特殊的比表面积、高孔隙体积和化学可调的结构特性而成为固态储氢的有希望的候选者。在这项工作中,利用4个关键描述符,即brunauer - emmet - teller (BET)表面积、孔隙体积、操作压力和温度,对各种实验合成的mof进行了评估,以模拟和预测储氢容量(wt%)。相关分析表明,BET表面积、压力、孔容与储气量呈正相关,与温度呈负相关,符合物理吸附机理。开发了六种机器学习模型:支持向量回归(SVR)、人工神经网络(ANN)、随机森林(RF)、高斯过程回归(GPR)、梯度增强(GB)和集成所有基础学习者的专家系统委员会(CES)。虽然GB是表现最好的独立模型,但正如奇偶图和残差分析所证实的那样,CES提供了最高的预测保真度(R2 = 0.9958, MSE = 0.0094)。SHapley加性解释(SHAP)证实了统计特征排名,一致认为BET表面积和压力是与吸附热力学一致的最具影响力的积极贡献者。对均方根误差(RMSE)值的配对t检验证实,在所有单个模型中,CES都有统计学上显著的改善。因此,CES框架为快速MOF筛选提供了一种数据高效、准确和可解释的方法,可直接适用于其他多孔材料和基于吸附的储能系统。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Smart screening of hydrogen storage capacities in MOFs using a tailored machine learning

Smart screening of hydrogen storage capacities in MOFs using a tailored machine learning

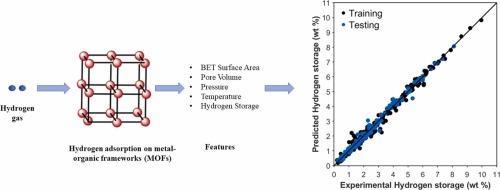

Metal-organic frameworks (MOFs) have emerged as promising candidates for solid-state hydrogen storage owing to their exceptional specific surface area, high pore volume, and chemically tunable structural properties. In this work, a diverse set of experimentally synthesized MOFs were evaluated to model and predict hydrogen storage capacity (wt%), using 4 key descriptors which are Brunauer–Emmett–Teller (BET) surface area, pore volume, operating pressure, and temperature. Correlation analysis revealed positive associations between BET surface area, pressure, and pore volume with storage capacity, and a negative association with temperature, consistent with physisorption mechanism. Six machine learning models were developed: support vector regression (SVR), artificial neural networks (ANN), random forest (RF), Gaussian process regression (GPR), gradient boosting (GB), and a Committee of Expert Systems (CES) integrating all base learners. While GB was the top-performing standalone model, the CES delivered the highest predictive fidelity (R2 = 0.9958, MSE = 0.0094), as confirmed by parity plots and residual analysis. SHapley Additive exPlanations (SHAP) corroborated the statistical feature rankings, consistently identifying BET surface area and pressure as the most influential positive contributors in alignment with adsorption thermodynamics. Paired t-tests on root-mean-square error (RMSE) values confirmed statistically significant CES improvements over all individual models. The CES framework thus offers a data-efficient, accurate, and interpretable approach for rapid MOF screening, with straightforward adaptability to other porous materials and adsorption-based energy storage systems.
