激光粉末床熔接富La/ ce - La- ce - fe - co - si磁热材料的裂纹愈合增强力学强度

IF 5.5 2区材料科学 Q1 MATERIALS SCIENCE, CHARACTERIZATION & TESTING

Materials Characterization Pub Date : 2025-09-18 DOI:10.1016/j.matchar.2025.115572

Kai Xu , Xiang Lu , Xiang Li , Chunfeng Lao , Jing Li , Guoxin Yu , Jian Liu

{"title":"激光粉末床熔接富La/ ce - La- ce - fe - co - si磁热材料的裂纹愈合增强力学强度","authors":"Kai Xu , Xiang Lu , Xiang Li , Chunfeng Lao , Jing Li , Guoxin Yu , Jian Liu","doi":"10.1016/j.matchar.2025.115572","DOIUrl":null,"url":null,"abstract":"<div><div>Laser powder bed fusion (LPBF) has been recently adopted to prepare magnetocaloric La(Fe,Si)<sub>13</sub>-based alloys due to geometry design freedom and near-net-shape features. However, the as-printed sample showed pronounced cracks which hindered their application. Here, La/Ce-rich La-Ce-Fe-Co-Si alloys were prepared by LPBF and the microstructural evolution after 30 min of short annealing was investigated. The as-printed sample consisted of uniformly fine La/Ce-rich and α-Fe(Co,Si) phases with many cold cracks. Notably, these cracks were filled with La/Ce oxides during annealing, leading to a certain degree of healing. Owing to the crack healing effect and the fine microstructure, an excellent compressive strength of 570 MPa was obtained. The annealed samples contained 79.06 wt% of NaZn<sub>13</sub>-type phases, and the magnetic entropy change was −7.48 J·kg<sup>−1</sup>·K<sup>−1</sup> for a magnetic field change of 0–5 T. This research presents a promising route of rare-earth rich composition design for obtaining high-strength La(Fe,Si)<sub>13</sub>-based magnetic refrigerants by the LPBF method.</div></div>","PeriodicalId":18727,"journal":{"name":"Materials Characterization","volume":"229 ","pages":"Article 115572"},"PeriodicalIF":5.5000,"publicationDate":"2025-09-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Enhancement of the mechanical strength in laser powder bed fused La/Ce-rich La-Ce-Fe-Co-Si magnetocaloric materials via crack healing\",\"authors\":\"Kai Xu , Xiang Lu , Xiang Li , Chunfeng Lao , Jing Li , Guoxin Yu , Jian Liu\",\"doi\":\"10.1016/j.matchar.2025.115572\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Laser powder bed fusion (LPBF) has been recently adopted to prepare magnetocaloric La(Fe,Si)<sub>13</sub>-based alloys due to geometry design freedom and near-net-shape features. However, the as-printed sample showed pronounced cracks which hindered their application. Here, La/Ce-rich La-Ce-Fe-Co-Si alloys were prepared by LPBF and the microstructural evolution after 30 min of short annealing was investigated. The as-printed sample consisted of uniformly fine La/Ce-rich and α-Fe(Co,Si) phases with many cold cracks. Notably, these cracks were filled with La/Ce oxides during annealing, leading to a certain degree of healing. Owing to the crack healing effect and the fine microstructure, an excellent compressive strength of 570 MPa was obtained. The annealed samples contained 79.06 wt% of NaZn<sub>13</sub>-type phases, and the magnetic entropy change was −7.48 J·kg<sup>−1</sup>·K<sup>−1</sup> for a magnetic field change of 0–5 T. This research presents a promising route of rare-earth rich composition design for obtaining high-strength La(Fe,Si)<sub>13</sub>-based magnetic refrigerants by the LPBF method.</div></div>\",\"PeriodicalId\":18727,\"journal\":{\"name\":\"Materials Characterization\",\"volume\":\"229 \",\"pages\":\"Article 115572\"},\"PeriodicalIF\":5.5000,\"publicationDate\":\"2025-09-18\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Materials Characterization\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S1044580325008617\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, CHARACTERIZATION & TESTING\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materials Characterization","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S1044580325008617","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, CHARACTERIZATION & TESTING","Score":null,"Total":0}

引用次数: 0

摘要

激光粉末床熔合（LPBF）由于具有几何设计自由和近净形状的特点，被广泛用于制备磁致热La(Fe,Si)13基合金。然而，打印样品显示明显的裂纹，这阻碍了它们的应用。利用LPBF制备了富La/ ce的La- ce - fe - co - si合金，并研究了短时间退火30 min后的显微组织演变。打印样品由均匀细小的富La/ ce相和α-Fe（Co,Si）相组成，并伴有许多冷裂纹。值得注意的是，这些裂纹在退火过程中被La/Ce氧化物填充，导致一定程度的愈合。由于具有良好的裂纹愈合效果和良好的微观组织，获得了优异的抗压强度，达到570 MPa。退火后的样品中，nazn13型相的含量为79.06 wt%，在0 ~ 5 t的磁场变化下，磁熵变化为−7.48 J·kg−1·K−1。本研究为利用LPBF方法制备高强度La(Fe,Si)13基磁性制冷剂提供了一条有前途的富稀土成分设计途径。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Enhancement of the mechanical strength in laser powder bed fused La/Ce-rich La-Ce-Fe-Co-Si magnetocaloric materials via crack healing

查看原文本刊更多论文

Enhancement of the mechanical strength in laser powder bed fused La/Ce-rich La-Ce-Fe-Co-Si magnetocaloric materials via crack healing

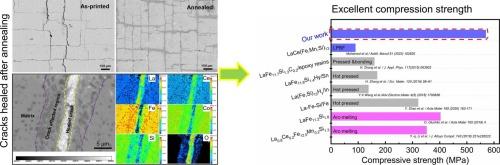

Laser powder bed fusion (LPBF) has been recently adopted to prepare magnetocaloric La(Fe,Si)₁₃-based alloys due to geometry design freedom and near-net-shape features. However, the as-printed sample showed pronounced cracks which hindered their application. Here, La/Ce-rich La-Ce-Fe-Co-Si alloys were prepared by LPBF and the microstructural evolution after 30 min of short annealing was investigated. The as-printed sample consisted of uniformly fine La/Ce-rich and α-Fe(Co,Si) phases with many cold cracks. Notably, these cracks were filled with La/Ce oxides during annealing, leading to a certain degree of healing. Owing to the crack healing effect and the fine microstructure, an excellent compressive strength of 570 MPa was obtained. The annealed samples contained 79.06 wt% of NaZn₁₃-type phases, and the magnetic entropy change was −7.48 J·kg⁻¹·K⁻¹ for a magnetic field change of 0–5 T. This research presents a promising route of rare-earth rich composition design for obtaining high-strength La(Fe,Si)₁₃-based magnetic refrigerants by the LPBF method.
