金刚石薄膜异质外延生长的相场模拟

IF 5.1 3区材料科学 Q2 MATERIALS SCIENCE, COATINGS & FILMS

Diamond and Related Materials Pub Date : 2025-09-17 DOI:10.1016/j.diamond.2025.112846

P.E. L'vov , S.V. Bulyarskiy , A.A. Pavlov , Yu.V. Anufriev , V.V. Sen'

{"title":"金刚石薄膜异质外延生长的相场模拟","authors":"P.E. L'vov , S.V. Bulyarskiy , A.A. Pavlov , Yu.V. Anufriev , V.V. Sen'","doi":"10.1016/j.diamond.2025.112846","DOIUrl":null,"url":null,"abstract":"<div><div>In this study, we develop the phenomenological phase-field model of formation of solid crystalline films during heteroepitaxial growth. The model accounts for the anisotropy of the surface energy of the crystalline phase and enables simulation of heterogeneous nucleation and growth dynamics of the nanocrystals with an arbitrary faceting within the defined crystal system. We simulate the heteroepitaxial growth of crystalline films using the example of diamond for different types of surface energy anisotropy corresponding to the cubic system. The dynamics of the nanosized film morphology are analyzed during the process of continuous deposition up to solid film formation. Typical mechanisms of crystalline film growth are observed in the simulation, including heterogeneous nucleation and growth of faceted nanocrystals, coalescence, some types of twinning, formation and motion of steps and terraces on the crystalline film surface, etc. The probable mechanisms of one-step and two-step nucleation of the crystalline phase are also discussed within the model.</div></div>","PeriodicalId":11266,"journal":{"name":"Diamond and Related Materials","volume":"159 ","pages":"Article 112846"},"PeriodicalIF":5.1000,"publicationDate":"2025-09-17","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Phase-field simulation of heteroepitaxial growth of diamond films\",\"authors\":\"P.E. L'vov , S.V. Bulyarskiy , A.A. Pavlov , Yu.V. Anufriev , V.V. Sen'\",\"doi\":\"10.1016/j.diamond.2025.112846\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>In this study, we develop the phenomenological phase-field model of formation of solid crystalline films during heteroepitaxial growth. The model accounts for the anisotropy of the surface energy of the crystalline phase and enables simulation of heterogeneous nucleation and growth dynamics of the nanocrystals with an arbitrary faceting within the defined crystal system. We simulate the heteroepitaxial growth of crystalline films using the example of diamond for different types of surface energy anisotropy corresponding to the cubic system. The dynamics of the nanosized film morphology are analyzed during the process of continuous deposition up to solid film formation. Typical mechanisms of crystalline film growth are observed in the simulation, including heterogeneous nucleation and growth of faceted nanocrystals, coalescence, some types of twinning, formation and motion of steps and terraces on the crystalline film surface, etc. The probable mechanisms of one-step and two-step nucleation of the crystalline phase are also discussed within the model.</div></div>\",\"PeriodicalId\":11266,\"journal\":{\"name\":\"Diamond and Related Materials\",\"volume\":\"159 \",\"pages\":\"Article 112846\"},\"PeriodicalIF\":5.1000,\"publicationDate\":\"2025-09-17\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Diamond and Related Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S0925963525009033\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, COATINGS & FILMS\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Diamond and Related Materials","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0925963525009033","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, COATINGS & FILMS","Score":null,"Total":0}

引用次数: 0

摘要

在本研究中，我们建立了异质外延生长过程中固体晶体薄膜形成的现象学相场模型。该模型考虑了晶体相表面能的各向异性，并能够在定义的晶体系统中模拟具有任意面形的纳米晶体的非均质成核和生长动力学。我们以金刚石为例，模拟了不同类型的表面能各向异性对应于立方体系的晶体薄膜的异质外延生长。分析了连续沉积到固体膜形成过程中纳米膜形态的动态变化。在模拟中观察到典型的晶膜生长机制，包括多面纳米晶体的非均质成核和生长、聚并、某些类型的孪晶、晶膜表面台阶和台阶的形成和运动等。在模型中还讨论了晶相一步成核和两步成核的可能机理。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Phase-field simulation of heteroepitaxial growth of diamond films

查看原文本刊更多论文

Phase-field simulation of heteroepitaxial growth of diamond films

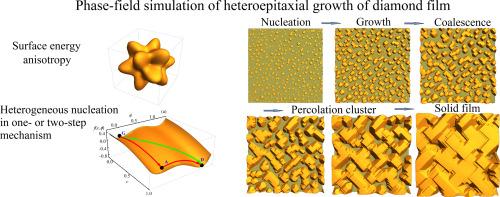

In this study, we develop the phenomenological phase-field model of formation of solid crystalline films during heteroepitaxial growth. The model accounts for the anisotropy of the surface energy of the crystalline phase and enables simulation of heterogeneous nucleation and growth dynamics of the nanocrystals with an arbitrary faceting within the defined crystal system. We simulate the heteroepitaxial growth of crystalline films using the example of diamond for different types of surface energy anisotropy corresponding to the cubic system. The dynamics of the nanosized film morphology are analyzed during the process of continuous deposition up to solid film formation. Typical mechanisms of crystalline film growth are observed in the simulation, including heterogeneous nucleation and growth of faceted nanocrystals, coalescence, some types of twinning, formation and motion of steps and terraces on the crystalline film surface, etc. The probable mechanisms of one-step and two-step nucleation of the crystalline phase are also discussed within the model.
