有机半导体聚2,6-二氨基蒽醌复合材料与Bi负载协同增强了BiVO4的光电阴极保护性能

IF 5.7 3区材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY

Materials Research Bulletin Pub Date : 2025-09-16 DOI:10.1016/j.materresbull.2025.113789

Juan Liu, Yingnan Qin, Meiqi Wang, Hengjun Liu, Tao Zheng, Jing Tian, Jing Wang

{"title":"有机半导体聚2,6-二氨基蒽醌复合材料与Bi负载协同增强了BiVO4的光电阴极保护性能","authors":"Juan Liu, Yingnan Qin, Meiqi Wang, Hengjun Liu, Tao Zheng, Jing Tian, Jing Wang","doi":"10.1016/j.materresbull.2025.113789","DOIUrl":null,"url":null,"abstract":"<div><div>BiVO<sub>4</sub>-based materials have attracted extensive research as advanced photoanode for photogenerated cathodic protection. However, the performance of BiVO<sub>4</sub>-based photoanodes is greatly hindered by its weak charge migration and positive conduction band potential. Herein, poly-2,6-diaminoanthraquinone (PDAAQ)/Bi was grafted on BiVO<sub>4</sub> to improve the separation efficiency of photogenerated carriers and enhance the reducing ability of photogenerated electrons. Studies show that a type II heterojunction can be formed between PDAAQ and BiVO<sub>4</sub>, which accelerates the separation of photogenerated carriers at the interface. In addition, the Bi monomers anchored on BiVO<sub>4</sub>/PDAAQ then expand the light absorption range through the surface plasmon resonance effect. Consequently, the obtained BiVO<sub>4</sub>/PDAAQ/Bi photoanode exhibits a promising photocurrent density of 40 μA·cm<sup>-2</sup>, while the photoinduced potential drop is 540 mV, which is approximately 1.4 times of BiVO<sub>4</sub> materials. These outcomes provide general ideas for the design of organic-inorganic heterozygous systems for achieving eco-friendly corrosion protection.</div></div>","PeriodicalId":18265,"journal":{"name":"Materials Research Bulletin","volume":"194 ","pages":"Article 113789"},"PeriodicalIF":5.7000,"publicationDate":"2025-09-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Organic semiconductor poly-2,6-diaminoanthraquinone composite and Bi loading synergistically enhance the photoelectrochemical cathodic protection performance of BiVO4\",\"authors\":\"Juan Liu, Yingnan Qin, Meiqi Wang, Hengjun Liu, Tao Zheng, Jing Tian, Jing Wang\",\"doi\":\"10.1016/j.materresbull.2025.113789\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>BiVO<sub>4</sub>-based materials have attracted extensive research as advanced photoanode for photogenerated cathodic protection. However, the performance of BiVO<sub>4</sub>-based photoanodes is greatly hindered by its weak charge migration and positive conduction band potential. Herein, poly-2,6-diaminoanthraquinone (PDAAQ)/Bi was grafted on BiVO<sub>4</sub> to improve the separation efficiency of photogenerated carriers and enhance the reducing ability of photogenerated electrons. Studies show that a type II heterojunction can be formed between PDAAQ and BiVO<sub>4</sub>, which accelerates the separation of photogenerated carriers at the interface. In addition, the Bi monomers anchored on BiVO<sub>4</sub>/PDAAQ then expand the light absorption range through the surface plasmon resonance effect. Consequently, the obtained BiVO<sub>4</sub>/PDAAQ/Bi photoanode exhibits a promising photocurrent density of 40 μA·cm<sup>-2</sup>, while the photoinduced potential drop is 540 mV, which is approximately 1.4 times of BiVO<sub>4</sub> materials. These outcomes provide general ideas for the design of organic-inorganic heterozygous systems for achieving eco-friendly corrosion protection.</div></div>\",\"PeriodicalId\":18265,\"journal\":{\"name\":\"Materials Research Bulletin\",\"volume\":\"194 \",\"pages\":\"Article 113789\"},\"PeriodicalIF\":5.7000,\"publicationDate\":\"2025-09-16\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Materials Research Bulletin\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S0025540825004969\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materials Research Bulletin","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0025540825004969","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

bivo4基材料作为光生阴极保护的先进光阳极受到了广泛的研究。然而，bivo4基光阳极的性能受到其弱电荷迁移和正导带电位的极大阻碍。本文将聚2,6-二氨基蒽醌(PDAAQ)/Bi接枝于BiVO4上，以提高光生载子的分离效率，增强光生电子的还原能力。研究表明，PDAAQ与BiVO4之间可形成II型异质结，加速了光生载流子在界面处的分离。此外，锚定在BiVO4/PDAAQ上的Bi单体通过表面等离子体共振效应扩大了光吸收范围。所得BiVO4/PDAAQ/Bi光阳极光电流密度为40 μA·cm-2，光致电位降为540 mV，约为BiVO4材料的1.4倍。这些结果为设计有机-无机杂合体系以实现生态友好的防腐提供了一般思路。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Organic semiconductor poly-2,6-diaminoanthraquinone composite and Bi loading synergistically enhance the photoelectrochemical cathodic protection performance of BiVO4

查看原文本刊更多论文

Organic semiconductor poly-2,6-diaminoanthraquinone composite and Bi loading synergistically enhance the photoelectrochemical cathodic protection performance of BiVO4

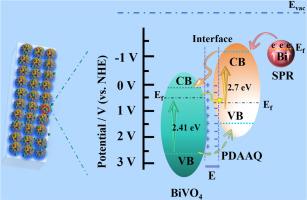

BiVO₄-based materials have attracted extensive research as advanced photoanode for photogenerated cathodic protection. However, the performance of BiVO₄-based photoanodes is greatly hindered by its weak charge migration and positive conduction band potential. Herein, poly-2,6-diaminoanthraquinone (PDAAQ)/Bi was grafted on BiVO₄ to improve the separation efficiency of photogenerated carriers and enhance the reducing ability of photogenerated electrons. Studies show that a type II heterojunction can be formed between PDAAQ and BiVO₄, which accelerates the separation of photogenerated carriers at the interface. In addition, the Bi monomers anchored on BiVO₄/PDAAQ then expand the light absorption range through the surface plasmon resonance effect. Consequently, the obtained BiVO₄/PDAAQ/Bi photoanode exhibits a promising photocurrent density of 40 μA·cm^-2, while the photoinduced potential drop is 540 mV, which is approximately 1.4 times of BiVO₄ materials. These outcomes provide general ideas for the design of organic-inorganic heterozygous systems for achieving eco-friendly corrosion protection.

求助全文

通过发布文献求助，成功后即可免费获取论文全文。去求助
