FePO4-Zn/Pt混合电池系统电化学萃取高浓度Mg2+盐湖盐水中的Li+

IF 5.6 3区材料科学 Q1 ELECTROCHEMISTRY

Electrochimica Acta Pub Date : 2025-09-20 DOI:10.1016/j.electacta.2025.147223

Qian Zhang , Xinwen Li , Kang Chen , Ying Hu , Rongmei Liu , Guixiang Qian , Zhongliang Tian , Chao Yang

{"title":"FePO4-Zn/Pt混合电池系统电化学萃取高浓度Mg2+盐湖盐水中的Li+","authors":"Qian Zhang , Xinwen Li , Kang Chen , Ying Hu , Rongmei Liu , Guixiang Qian , Zhongliang Tian , Chao Yang","doi":"10.1016/j.electacta.2025.147223","DOIUrl":null,"url":null,"abstract":"<div><div>This study presents a FePO<sub>4</sub>-Zn/Pt hybrid power battery system designed for lithium extraction from salt lake brines. Initially, the FePO<sub>4</sub>-Zn battery is utilized for lithium intercalation to form LiFePO<sub>4</sub>, which is subsequently reassembled into a LiFePO<sub>4</sub>-Pt battery for lithium deintercalation. As a result, a Li<sup>+</sup>-rich aqueous solution, free from interfering metal cations, is obtained. The system eliminates the need for ion-exchange membranes, as the Pt electrode remains separated from the brine, thereby preventing contamination by impurity cations. When applied to a brine containing 0.25 g/L Li<sup>+</sup> and 73 g/L Mg<sup>2+</sup>, followed by desorption in a solution of 0.25 g/L Li<sup>+</sup>, only a minimal amount of Mg<sup>2+</sup>was transferred to the lithium chloride solution after two cycles, achieving effective lithium extraction and enrichment with an efficiency of 80.6 %.</div></div>","PeriodicalId":305,"journal":{"name":"Electrochimica Acta","volume":"542 ","pages":"Article 147223"},"PeriodicalIF":5.6000,"publicationDate":"2025-09-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"FePO4-Zn/Pt hybrid battery system for the electrochemical extraction of Li+ from salt lake brine with high Mg2+ concentrations\",\"authors\":\"Qian Zhang , Xinwen Li , Kang Chen , Ying Hu , Rongmei Liu , Guixiang Qian , Zhongliang Tian , Chao Yang\",\"doi\":\"10.1016/j.electacta.2025.147223\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>This study presents a FePO<sub>4</sub>-Zn/Pt hybrid power battery system designed for lithium extraction from salt lake brines. Initially, the FePO<sub>4</sub>-Zn battery is utilized for lithium intercalation to form LiFePO<sub>4</sub>, which is subsequently reassembled into a LiFePO<sub>4</sub>-Pt battery for lithium deintercalation. As a result, a Li<sup>+</sup>-rich aqueous solution, free from interfering metal cations, is obtained. The system eliminates the need for ion-exchange membranes, as the Pt electrode remains separated from the brine, thereby preventing contamination by impurity cations. When applied to a brine containing 0.25 g/L Li<sup>+</sup> and 73 g/L Mg<sup>2+</sup>, followed by desorption in a solution of 0.25 g/L Li<sup>+</sup>, only a minimal amount of Mg<sup>2+</sup>was transferred to the lithium chloride solution after two cycles, achieving effective lithium extraction and enrichment with an efficiency of 80.6 %.</div></div>\",\"PeriodicalId\":305,\"journal\":{\"name\":\"Electrochimica Acta\",\"volume\":\"542 \",\"pages\":\"Article 147223\"},\"PeriodicalIF\":5.6000,\"publicationDate\":\"2025-09-20\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Electrochimica Acta\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S0013468625015804\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ELECTROCHEMISTRY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Electrochimica Acta","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0013468625015804","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ELECTROCHEMISTRY","Score":null,"Total":0}

引用次数: 0

摘要

研究了一种用于盐湖卤水提锂的FePO4-Zn/Pt混合动力电池系统。首先，将FePO4-Zn电池用于锂嵌入形成LiFePO4，随后将其重新组装成LiFePO4- pt电池用于锂的脱嵌。结果，得到了不受金属阳离子干扰的富Li+水溶液。该系统不需要离子交换膜，因为Pt电极与盐水分离，从而防止了杂质阳离子的污染。在含0.25 g/L Li+和73 g/L Mg2+的卤水中进行解吸，在含0.25 g/L Li+的溶液中进行解吸，经过两个循环后，只有少量的Mg2+转移到氯化锂溶液中，实现了有效的锂提取和富集，效率为80.6%。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

FePO4-Zn/Pt hybrid battery system for the electrochemical extraction of Li+ from salt lake brine with high Mg2+ concentrations

查看原文本刊更多论文

FePO4-Zn/Pt hybrid battery system for the electrochemical extraction of Li+ from salt lake brine with high Mg2+ concentrations

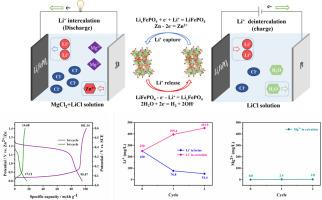

This study presents a FePO₄-Zn/Pt hybrid power battery system designed for lithium extraction from salt lake brines. Initially, the FePO₄-Zn battery is utilized for lithium intercalation to form LiFePO₄, which is subsequently reassembled into a LiFePO₄-Pt battery for lithium deintercalation. As a result, a Li⁺-rich aqueous solution, free from interfering metal cations, is obtained. The system eliminates the need for ion-exchange membranes, as the Pt electrode remains separated from the brine, thereby preventing contamination by impurity cations. When applied to a brine containing 0.25 g/L Li⁺ and 73 g/L Mg²⁺, followed by desorption in a solution of 0.25 g/L Li⁺, only a minimal amount of Mg²⁺was transferred to the lithium chloride solution after two cycles, achieving effective lithium extraction and enrichment with an efficiency of 80.6 %.

求助全文

通过发布文献求助，成功后即可免费获取论文全文。去求助
