Spin-NeuroMem: a low-power neuromorphic associative memory design based on spintronic devices

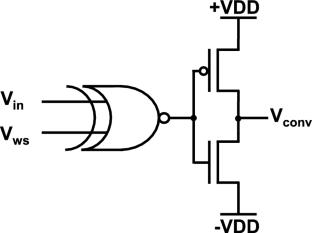

Biologically inspired computing models have made significant progress in recent years, but the conventional von Neumann architecture is inefficient for the large-scale matrix operations and massive parallelism required by these models. This paper presents Spin-NeuroMem, a low-power circuit design of a Hopfield network for the function of associative memory. Spin-NeuroMem is equipped with energy-efficient spintronic synapses which utilize magnetic tunnel junctions (MTJs) to store weight matrices of multiple associative memories. The proposed synapse design achieves as low as 17.4% power consumption compared to the state-of-the-art synapse designs. Spin-NeuroMem also encompasses a novel voltage converter with a 53.3% reduction in transistor usage for effective Hopfield network computation. In addition, we propose an associative memory simulator for the first time, which achieves a 5 M\(\times\) speedup with a comparable associative memory effect. By harnessing the potential of spintronic devices, this work paves the way for the development of energy-efficient and scalable neuromorphic computing systems.
