Jing Li, Xiang Liu, Si-Min Xu, Ming Xu, Yunlong Wang, Yizheng Lyu, An-Zhen Li, Ye Wang, Xi Wang, Tiancong Zhou, Hua Zhou, Yue Peng, Xuning Li, Lirong Zheng, Haohong Duan
{"title":"在自由状态下通过电合成羟胺实现可持续的肟生产","authors":"Jing Li, Xiang Liu, Si-Min Xu, Ming Xu, Yunlong Wang, Yizheng Lyu, An-Zhen Li, Ye Wang, Xi Wang, Tiancong Zhou, Hua Zhou, Yue Peng, Xuning Li, Lirong Zheng, Haohong Duan","doi":"10.1038/s44160-025-00879-4","DOIUrl":null,"url":null,"abstract":"<p>Hydroxylamine (NH<sub>2</sub>OH) is an important feedstock for oxime production. Coreduction of NO<sub><i>x</i></sub> and aldehydes or ketones enables sustainable one-step oximation by utilizing in situ *NH<sub>2</sub>OH intermediates but suffers from side reactions and reduced current density due to the presence of multiple reactants in one reactor. Here we decouple oximation into two steps, the electrochemical synthesis of free NH<sub>2</sub>OH via nitrite (NO<sub>2</sub><sup>−</sup>) electroreduction and the aldehyde or ketone oximation chemical step, circumventing the negative effects (such as site blocking, aldehyde or ketone electroreduction, or crossover) encountered in one-step oximation. By using a Ketjen-black-supported iron phthalocyanine as the catalyst, we achieve an exceptionally high partial current density of free NH<sub>2</sub>OH (<i>j</i><sub>NH2OH</sub>) of 262.9 mA cm<sup>−2</sup> (corresponding to productivity of 2.452 mmol cm<sup>−2</sup> h<sup>−1</sup>) in neutral conditions at an industrially relevant current density of 500 mA cm<sup>−2</sup>. By coupling NH<sub>2</sub>OH electrosynthesis with subsequent oximation in two steps, nearly stoichiometric oximes are produced with high efficiency and broad applicability. This work paves the way toward a sustainable oxime industry.</p><figure></figure>","PeriodicalId":74251,"journal":{"name":"Nature synthesis","volume":"40 1","pages":""},"PeriodicalIF":20.0000,"publicationDate":"2025-09-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Sustainable oxime production via the electrosynthesis of hydroxylamine in a free state\",\"authors\":\"Jing Li, Xiang Liu, Si-Min Xu, Ming Xu, Yunlong Wang, Yizheng Lyu, An-Zhen Li, Ye Wang, Xi Wang, Tiancong Zhou, Hua Zhou, Yue Peng, Xuning Li, Lirong Zheng, Haohong Duan\",\"doi\":\"10.1038/s44160-025-00879-4\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Hydroxylamine (NH<sub>2</sub>OH) is an important feedstock for oxime production. Coreduction of NO<sub><i>x</i></sub> and aldehydes or ketones enables sustainable one-step oximation by utilizing in situ *NH<sub>2</sub>OH intermediates but suffers from side reactions and reduced current density due to the presence of multiple reactants in one reactor. Here we decouple oximation into two steps, the electrochemical synthesis of free NH<sub>2</sub>OH via nitrite (NO<sub>2</sub><sup>−</sup>) electroreduction and the aldehyde or ketone oximation chemical step, circumventing the negative effects (such as site blocking, aldehyde or ketone electroreduction, or crossover) encountered in one-step oximation. By using a Ketjen-black-supported iron phthalocyanine as the catalyst, we achieve an exceptionally high partial current density of free NH<sub>2</sub>OH (<i>j</i><sub>NH2OH</sub>) of 262.9 mA cm<sup>−2</sup> (corresponding to productivity of 2.452 mmol cm<sup>−2</sup> h<sup>−1</sup>) in neutral conditions at an industrially relevant current density of 500 mA cm<sup>−2</sup>. By coupling NH<sub>2</sub>OH electrosynthesis with subsequent oximation in two steps, nearly stoichiometric oximes are produced with high efficiency and broad applicability. This work paves the way toward a sustainable oxime industry.</p><figure></figure>\",\"PeriodicalId\":74251,\"journal\":{\"name\":\"Nature synthesis\",\"volume\":\"40 1\",\"pages\":\"\"},\"PeriodicalIF\":20.0000,\"publicationDate\":\"2025-09-16\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Nature synthesis\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://doi.org/10.1038/s44160-025-00879-4\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"0\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nature synthesis","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.1038/s44160-025-00879-4","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"0","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
羟胺(NH2OH)是制肟的重要原料。NOx与醛类或酮类的共还原利用原位NH2OH中间体实现了可持续的一步氧化,但由于在一个反应器中存在多种反应物,因此存在副反应和电流密度降低的问题。在这里,我们将氧化解耦为两个步骤,即通过亚硝酸盐(NO2−)电还原的电化学合成游离NH2OH和醛或酮的化学氧化步骤,避免了一步氧化中遇到的负面影响(如位点阻断、醛或酮的电还原或交叉)。通过使用ketjen -black负载的酞菁铁作为催化剂,我们在中性条件下实现了262.9 mA cm - 2的游离NH2OH (jNH2OH)的偏电流密度(相当于2.452 mmol cm - 2 h - 1的生产率),工业相关电流密度为500 mA cm - 2。通过将NH2OH电合成与随后的肟化反应分两步耦合,制备出了效率高、适用性广的近化学计量肟。这项工作为可持续发展的肟工业铺平了道路。
Sustainable oxime production via the electrosynthesis of hydroxylamine in a free state

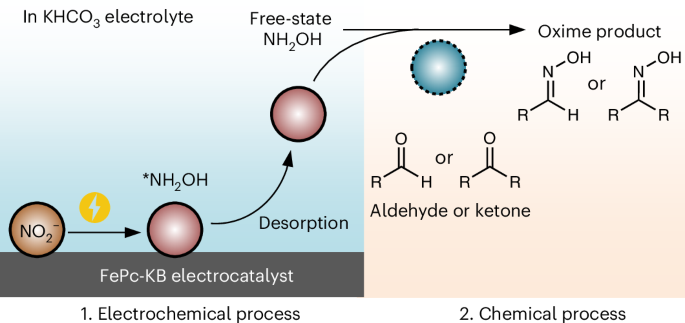

Hydroxylamine (NH2OH) is an important feedstock for oxime production. Coreduction of NOx and aldehydes or ketones enables sustainable one-step oximation by utilizing in situ *NH2OH intermediates but suffers from side reactions and reduced current density due to the presence of multiple reactants in one reactor. Here we decouple oximation into two steps, the electrochemical synthesis of free NH2OH via nitrite (NO2−) electroreduction and the aldehyde or ketone oximation chemical step, circumventing the negative effects (such as site blocking, aldehyde or ketone electroreduction, or crossover) encountered in one-step oximation. By using a Ketjen-black-supported iron phthalocyanine as the catalyst, we achieve an exceptionally high partial current density of free NH2OH (jNH2OH) of 262.9 mA cm−2 (corresponding to productivity of 2.452 mmol cm−2 h−1) in neutral conditions at an industrially relevant current density of 500 mA cm−2. By coupling NH2OH electrosynthesis with subsequent oximation in two steps, nearly stoichiometric oximes are produced with high efficiency and broad applicability. This work paves the way toward a sustainable oxime industry.
