MOF-818中Cu-Co串联位对中性介质中硝酸盐电合成氨的影响

IF 13.1 1区 化学 Q1 CHEMISTRY, PHYSICAL
Hai Sun, , , Zixiang Xia, , , Yuanyuan Qi, , , Qiang Xu, , , Jingwei Han, , , Jiahui Wu, , , Jun-Sheng Qin*, , and , Heng Rao*,
{"title":"MOF-818中Cu-Co串联位对中性介质中硝酸盐电合成氨的影响","authors":"Hai Sun,&nbsp;, ,&nbsp;Zixiang Xia,&nbsp;, ,&nbsp;Yuanyuan Qi,&nbsp;, ,&nbsp;Qiang Xu,&nbsp;, ,&nbsp;Jingwei Han,&nbsp;, ,&nbsp;Jiahui Wu,&nbsp;, ,&nbsp;Jun-Sheng Qin*,&nbsp;, and ,&nbsp;Heng Rao*,&nbsp;","doi":"10.1021/acscatal.5c04411","DOIUrl":null,"url":null,"abstract":"<p >The electrocatalytic reduction of nitrate (NO<sub>3</sub><sup>–</sup>) to ammonia (NH<sub>3</sub>) is a promising strategy for addressing environmental NO<sub>3</sub><sup>–</sup> pollution. However, achieving a high Faradaic efficiency (FE) for NH<sub>3</sub> production over a wide potential range in neutral electrolytes remains a major challenge for NO<sub>3</sub><sup>–</sup> reduction reaction (NO<sub>3</sub><sup>–</sup>RR). Herein, MOF-818(Cu)–Co was synthesized by immobilizing Co clusters within the porous framework of MOF-818(Cu). MOF-818(Cu)–Co exhibited a superior NH<sub>3</sub> FE and the highest NH<sub>3</sub> yield rate compared to both pristine MOF-818(Cu) and Co nanoparticles (Co NPs). Under neutral conditions, the NH<sub>3</sub> FE exceeded 90% over a wide potential window (−1.3 to −1.8 V vs Ag/AgCl), approaching nearly 100% at −1.5 V (vs Ag/AgCl). Meanwhile, the NH<sub>3</sub> yield rate attained 1.06 mol h<sup>–1</sup> g<sub>cat</sub><sup>–1</sup> at −1.8 V vs Ag/AgCl, corresponding to a CuCo catalytic active sites yield rate of 35.0 mol h<sup>–1</sup> g<sub>CuCo</sub><sup>–1</sup>. In situ characterizations and theoretical calculations showed that the Cu and Co sites in MOF-818(Cu)–Co synergistically lowered the energy barrier of the rate-determining step (RDS, *NO<sub>2</sub><sup>–</sup> → *NO) through a synergistic tandem catalytic mechanism. The Cu sites predominantly catalyzed the reduction of NO<sub>3</sub><sup>–</sup> to NO<sub>2</sub><sup>–</sup>, while the Co sites facilitated the subsequent conversion of NO<sub>2</sub><sup>–</sup> to NH<sub>3</sub>. This study demonstrates that synergistic tandem catalytic systems can significantly enhance ammonia electrosynthesis in neutral media.</p>","PeriodicalId":9,"journal":{"name":"ACS Catalysis ","volume":"15 19","pages":"16581–16590"},"PeriodicalIF":13.1000,"publicationDate":"2025-09-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Tandem Cu–Co Sites in MOF-818 for Efficient Ammonia Electrosynthesis from Nitrate in Neutral Media\",\"authors\":\"Hai Sun,&nbsp;, ,&nbsp;Zixiang Xia,&nbsp;, ,&nbsp;Yuanyuan Qi,&nbsp;, ,&nbsp;Qiang Xu,&nbsp;, ,&nbsp;Jingwei Han,&nbsp;, ,&nbsp;Jiahui Wu,&nbsp;, ,&nbsp;Jun-Sheng Qin*,&nbsp;, and ,&nbsp;Heng Rao*,&nbsp;\",\"doi\":\"10.1021/acscatal.5c04411\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The electrocatalytic reduction of nitrate (NO<sub>3</sub><sup>–</sup>) to ammonia (NH<sub>3</sub>) is a promising strategy for addressing environmental NO<sub>3</sub><sup>–</sup> pollution. However, achieving a high Faradaic efficiency (FE) for NH<sub>3</sub> production over a wide potential range in neutral electrolytes remains a major challenge for NO<sub>3</sub><sup>–</sup> reduction reaction (NO<sub>3</sub><sup>–</sup>RR). Herein, MOF-818(Cu)–Co was synthesized by immobilizing Co clusters within the porous framework of MOF-818(Cu). MOF-818(Cu)–Co exhibited a superior NH<sub>3</sub> FE and the highest NH<sub>3</sub> yield rate compared to both pristine MOF-818(Cu) and Co nanoparticles (Co NPs). Under neutral conditions, the NH<sub>3</sub> FE exceeded 90% over a wide potential window (−1.3 to −1.8 V vs Ag/AgCl), approaching nearly 100% at −1.5 V (vs Ag/AgCl). Meanwhile, the NH<sub>3</sub> yield rate attained 1.06 mol h<sup>–1</sup> g<sub>cat</sub><sup>–1</sup> at −1.8 V vs Ag/AgCl, corresponding to a CuCo catalytic active sites yield rate of 35.0 mol h<sup>–1</sup> g<sub>CuCo</sub><sup>–1</sup>. In situ characterizations and theoretical calculations showed that the Cu and Co sites in MOF-818(Cu)–Co synergistically lowered the energy barrier of the rate-determining step (RDS, *NO<sub>2</sub><sup>–</sup> → *NO) through a synergistic tandem catalytic mechanism. The Cu sites predominantly catalyzed the reduction of NO<sub>3</sub><sup>–</sup> to NO<sub>2</sub><sup>–</sup>, while the Co sites facilitated the subsequent conversion of NO<sub>2</sub><sup>–</sup> to NH<sub>3</sub>. This study demonstrates that synergistic tandem catalytic systems can significantly enhance ammonia electrosynthesis in neutral media.</p>\",\"PeriodicalId\":9,\"journal\":{\"name\":\"ACS Catalysis \",\"volume\":\"15 19\",\"pages\":\"16581–16590\"},\"PeriodicalIF\":13.1000,\"publicationDate\":\"2025-09-16\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Catalysis \",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acscatal.5c04411\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Catalysis ","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acscatal.5c04411","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

电催化还原硝酸盐(NO3 -)生成氨(NH3)是解决环境NO3 -污染的一种很有前途的策略。然而,在中性电解质的大电位范围内实现NH3生产的高法拉第效率(FE)仍然是NO3 -还原反应(NO3 - rr)的主要挑战。本文通过将Co团簇固定在MOF-818(Cu) -Co的多孔框架内来合成MOF-818(Cu) -Co。与原始的MOF-818(Cu) -Co纳米粒子(Co NPs)相比,MOF-818(Cu) -Co纳米粒子具有更好的NH3 FE和最高的NH3产率。在中性条件下,NH3 FE在宽电位窗口(- 1.3至- 1.8 V vs Ag/AgCl)内超过90%,在- 1.5 V (vs Ag/AgCl)下接近100%。同时,在−1.8 V /Ag /AgCl条件下,NH3的产率达到1.06 mol h-1 gcu - 1,对应于CuCo催化活性位点的产率为35.0 mol h-1 gcu - 1。原位表征和理论计算表明,MOF-818(Cu) - Co中的Cu和Co位点通过协同串联催化机制,协同降低了速率决定步骤(RDS, *NO2 -→*NO)的能垒。Cu位点主要催化NO3 -还原为NO2 -,而Co位点则促进NO2 -转化为NH3。该研究表明,协同串联催化体系可以显著提高中性介质中氨的电合成。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Tandem Cu–Co Sites in MOF-818 for Efficient Ammonia Electrosynthesis from Nitrate in Neutral Media

Tandem Cu–Co Sites in MOF-818 for Efficient Ammonia Electrosynthesis from Nitrate in Neutral Media

Tandem Cu–Co Sites in MOF-818 for Efficient Ammonia Electrosynthesis from Nitrate in Neutral Media

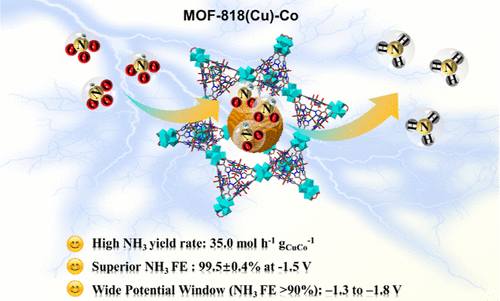

The electrocatalytic reduction of nitrate (NO3) to ammonia (NH3) is a promising strategy for addressing environmental NO3 pollution. However, achieving a high Faradaic efficiency (FE) for NH3 production over a wide potential range in neutral electrolytes remains a major challenge for NO3 reduction reaction (NO3RR). Herein, MOF-818(Cu)–Co was synthesized by immobilizing Co clusters within the porous framework of MOF-818(Cu). MOF-818(Cu)–Co exhibited a superior NH3 FE and the highest NH3 yield rate compared to both pristine MOF-818(Cu) and Co nanoparticles (Co NPs). Under neutral conditions, the NH3 FE exceeded 90% over a wide potential window (−1.3 to −1.8 V vs Ag/AgCl), approaching nearly 100% at −1.5 V (vs Ag/AgCl). Meanwhile, the NH3 yield rate attained 1.06 mol h–1 gcat–1 at −1.8 V vs Ag/AgCl, corresponding to a CuCo catalytic active sites yield rate of 35.0 mol h–1 gCuCo–1. In situ characterizations and theoretical calculations showed that the Cu and Co sites in MOF-818(Cu)–Co synergistically lowered the energy barrier of the rate-determining step (RDS, *NO2 → *NO) through a synergistic tandem catalytic mechanism. The Cu sites predominantly catalyzed the reduction of NO3 to NO2, while the Co sites facilitated the subsequent conversion of NO2 to NH3. This study demonstrates that synergistic tandem catalytic systems can significantly enhance ammonia electrosynthesis in neutral media.
