Alkaline Earth-Based Ternary Chalcogenide Nanocrystals: Cadmium- and Lead-Free Optical Materials

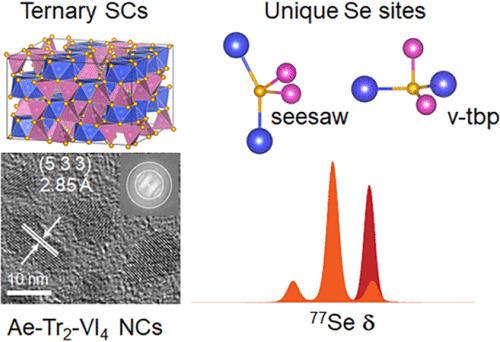

As some of the most abundant elements on the Earth’s crust, alkaline earths bear great potential in Cd- and Pb-free catalytic, energy conversion, and light-emitting devices. Further, because large electropositive alkaline earths (Ae) can adopt high coordination numbers, they offer structural complexity beyond the tetrahedral (c-Si, II–VI, III–V) or octahedral (IV–VI) atomic sites that─with the notable exception of halide perovskites─are ubiquitous among nanocrystalline semiconductors. Here, we present a general route to photoluminescent 6–125 nm nanocrystals of ternary AeIn₂Ch₄ semiconductors (Ae = Sr, Ba; Ch = S, Se) featuring eight- (Ae) as well as four-coordinate (In and Ch) atomic sites. Powder X-ray diffraction, electron microscopy, optical absorption, photoluminescence, and solid-state (ss)NMR spectroscopies attest to the ternary composition and phase purity of the nanocrystals. Continuous shape measures pinpoint the degree of distortion of individual crystallographic sites from ideal coordination polyhedra, allowing us to identify two very distinct types of Se coordination environments. Based on their higher order, pseudo-3-fold rotational symmetry, we assign ⁷⁷Se ssNMR peaks with negligible chemical shift anisotropy (CSA) to pyramidalized Se sites with vacant-trigonal bipyramid-like geometries and those with larger CSA to lower symmetry Se sites with seesaw-distorted geometries. Calculations help to better understand the electronic band structure of these materials. The nanocrystals are stable at room temperature in open air for several weeks, and some compositions up to 1000 °C under Ar, making them strong candidates for practical applications.
