构建富钙SEI和贫水EDL使锌离子袋细胞稳定

IF 18.2 1区 材料科学 Q1 CHEMISTRY, PHYSICAL
Xiaoxin Xu, Xuefang Xie*, Anqiang Pan, Haiming Duan, Guozhao Fang* and Shuquan Liang*,
{"title":"构建富钙SEI和贫水EDL使锌离子袋细胞稳定","authors":"Xiaoxin Xu,&nbsp;Xuefang Xie*,&nbsp;Anqiang Pan,&nbsp;Haiming Duan,&nbsp;Guozhao Fang* and Shuquan Liang*,&nbsp;","doi":"10.1021/acsenergylett.5c02217","DOIUrl":null,"url":null,"abstract":"<p >Aqueous zinc-ion batteries (AZIBs) enable eco-friendliness, inherent safety, and low-cost energy storage, but they suffer from interfacial issues of Zn anode, which depends on the electrochemical behaviors in both solid electrolyte interphase (SEI) and electric double layer (EDL). Here, we introduce calcium <span>l</span>-aspartate (Ca-ASP), a bifunctional electrolyte additive that constructs calcium-rich SEI and H<sub>2</sub>O-poor EDL for stable zinc-ion pouch batteries. Ca<sup>2+</sup> forms an inorganic SEI at the zinc anode interface and regulates Zn<sup>2+</sup> diffusion via electrostatic shielding, while ASP<sup>–</sup> restructures the EDL to promote uniform zinc deposition. As a result, the zinc anode demonstrates exceptional performance with over a 4000 h cycle life and stable 300 h operation at a discharge depth of 86.2%. The Zn||NH<sub>4</sub>V<sub>4</sub>O<sub>10</sub> full cells after 2000 cycles maintain 81.03% capacity. Furthermore, zinc-ion pouch cells enable stable cycling over 600 cycles without capacity decay. This work provides an effective solution for achieving stable zinc-ion pouch cells.</p>","PeriodicalId":16,"journal":{"name":"ACS Energy Letters ","volume":"10 9","pages":"4386–4394"},"PeriodicalIF":18.2000,"publicationDate":"2025-08-17","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Constructing Calcium-Rich SEI and H2O-Poor EDL Enables Stable Zinc-Ion Pouch Cells\",\"authors\":\"Xiaoxin Xu,&nbsp;Xuefang Xie*,&nbsp;Anqiang Pan,&nbsp;Haiming Duan,&nbsp;Guozhao Fang* and Shuquan Liang*,&nbsp;\",\"doi\":\"10.1021/acsenergylett.5c02217\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Aqueous zinc-ion batteries (AZIBs) enable eco-friendliness, inherent safety, and low-cost energy storage, but they suffer from interfacial issues of Zn anode, which depends on the electrochemical behaviors in both solid electrolyte interphase (SEI) and electric double layer (EDL). Here, we introduce calcium <span>l</span>-aspartate (Ca-ASP), a bifunctional electrolyte additive that constructs calcium-rich SEI and H<sub>2</sub>O-poor EDL for stable zinc-ion pouch batteries. Ca<sup>2+</sup> forms an inorganic SEI at the zinc anode interface and regulates Zn<sup>2+</sup> diffusion via electrostatic shielding, while ASP<sup>–</sup> restructures the EDL to promote uniform zinc deposition. As a result, the zinc anode demonstrates exceptional performance with over a 4000 h cycle life and stable 300 h operation at a discharge depth of 86.2%. The Zn||NH<sub>4</sub>V<sub>4</sub>O<sub>10</sub> full cells after 2000 cycles maintain 81.03% capacity. Furthermore, zinc-ion pouch cells enable stable cycling over 600 cycles without capacity decay. This work provides an effective solution for achieving stable zinc-ion pouch cells.</p>\",\"PeriodicalId\":16,\"journal\":{\"name\":\"ACS Energy Letters \",\"volume\":\"10 9\",\"pages\":\"4386–4394\"},\"PeriodicalIF\":18.2000,\"publicationDate\":\"2025-08-17\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Energy Letters \",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsenergylett.5c02217\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Energy Letters ","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsenergylett.5c02217","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

水溶液锌离子电池(azib)具有生态友好、固有安全、低成本储能等优点,但其存在锌阳极界面问题,这取决于固体电解质界面(SEI)和双电层(EDL)的电化学行为。本文介绍了l-天冬氨酸钙(Ca-ASP),这是一种双功能电解质添加剂,可以为稳定的锌离子袋电池构建富钙SEI和贫水EDL。Ca2+在锌阳极界面形成无机SEI,通过静电屏蔽调节Zn2+扩散,而ASP -重构EDL,促进锌均匀沉积。结果表明,锌阳极在放电深度为86.2%的情况下,具有超过4000 h的循环寿命和300 h的稳定工作性能。经过2000次循环后,Zn b| NH4V4O10充满电池的容量保持在81.03%。此外,锌离子袋电池可以稳定循环超过600次而不会出现容量衰减。这项工作为实现稳定的锌离子袋电池提供了一种有效的解决方案。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Constructing Calcium-Rich SEI and H2O-Poor EDL Enables Stable Zinc-Ion Pouch Cells

Constructing Calcium-Rich SEI and H2O-Poor EDL Enables Stable Zinc-Ion Pouch Cells

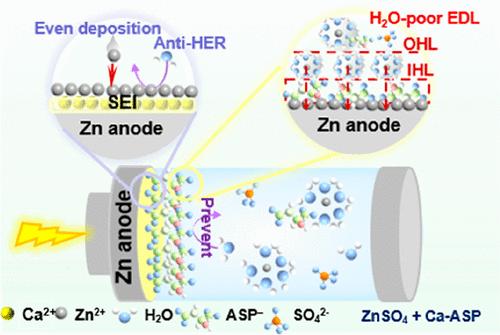

Aqueous zinc-ion batteries (AZIBs) enable eco-friendliness, inherent safety, and low-cost energy storage, but they suffer from interfacial issues of Zn anode, which depends on the electrochemical behaviors in both solid electrolyte interphase (SEI) and electric double layer (EDL). Here, we introduce calcium l-aspartate (Ca-ASP), a bifunctional electrolyte additive that constructs calcium-rich SEI and H2O-poor EDL for stable zinc-ion pouch batteries. Ca2+ forms an inorganic SEI at the zinc anode interface and regulates Zn2+ diffusion via electrostatic shielding, while ASP restructures the EDL to promote uniform zinc deposition. As a result, the zinc anode demonstrates exceptional performance with over a 4000 h cycle life and stable 300 h operation at a discharge depth of 86.2%. The Zn||NH4V4O10 full cells after 2000 cycles maintain 81.03% capacity. Furthermore, zinc-ion pouch cells enable stable cycling over 600 cycles without capacity decay. This work provides an effective solution for achieving stable zinc-ion pouch cells.
